Kula
Installation Manual
Connecting a 3M/E Control Surface together

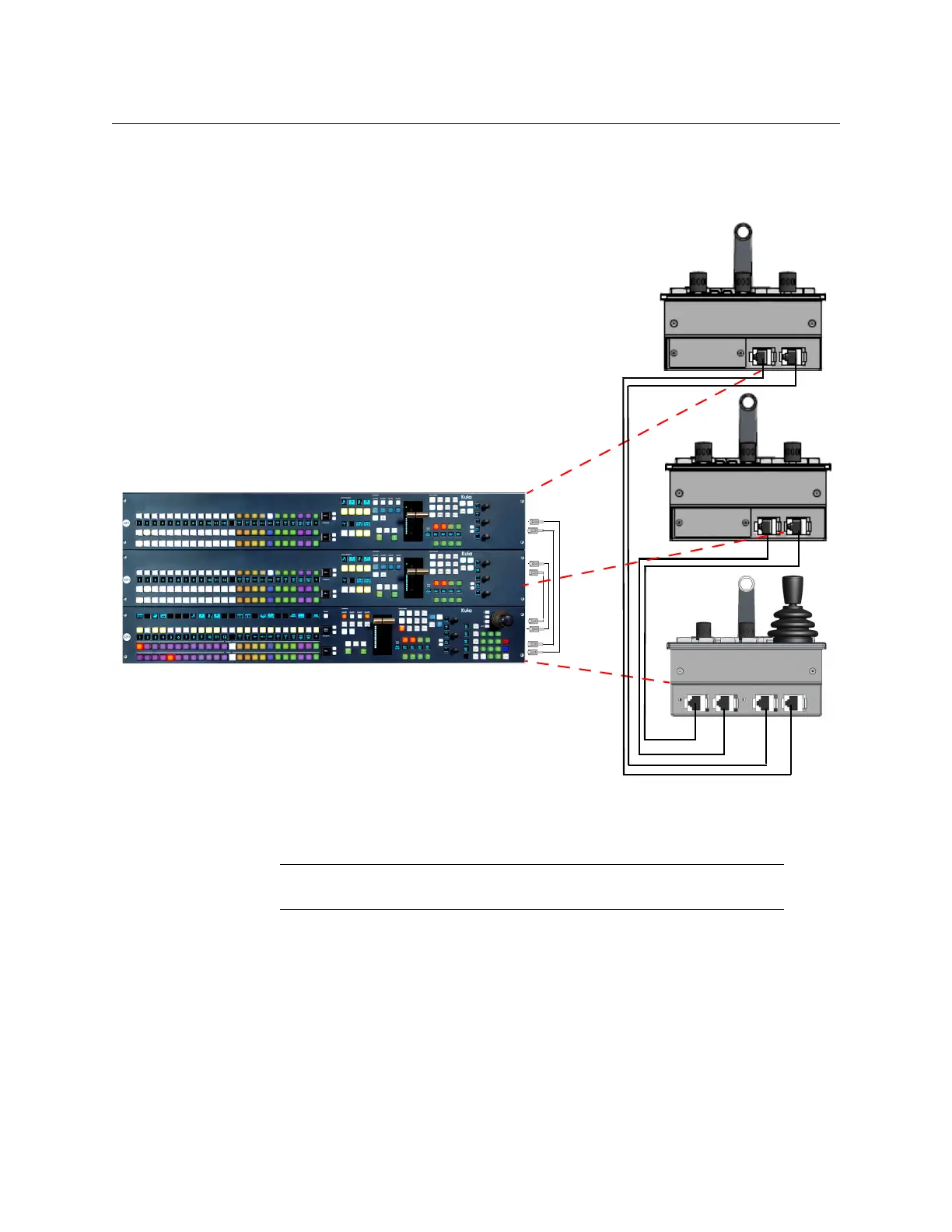

Below is a diagram showing how to connect a KPX and a two K1X control surfaces together.
Connect the KPX control surface to the 2x K1X control surfaces via the two “Comms” ports
on the right hand side of the control surface.
Kula KPX Control Surface
2x Kula K1X Control Surface
Kula K1X
Kula K1X
Kula KPX
Note: The two “Comms” cables on each K1X control surface must be
connected to the KPX control surface for correct operation!
