37
Kula
Installation Manual
Desk Cutout Information for KPX and K1X Control Surfaces

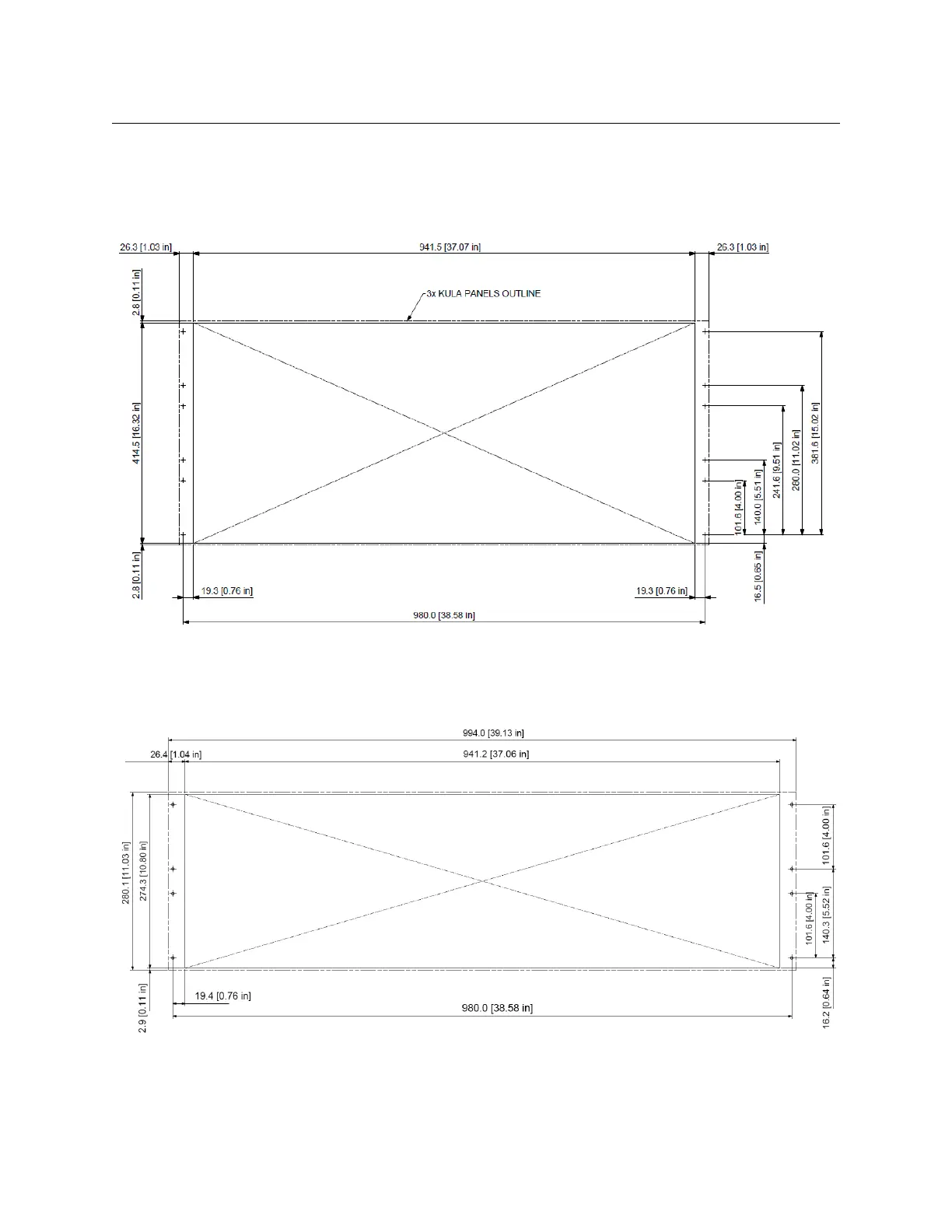

The desk cutout diagram below is for a 3M/E control surface, this is the KPX and 2x K1X
control surfaces combined.
The desk cutout diagram below is for a 2M/E control surface, this is the KPX and K1X control
surfaces combined.
