GRASS VALLEY KULA - 12 G-SDI Mainframe Connections

13
Kula
Installation Manual

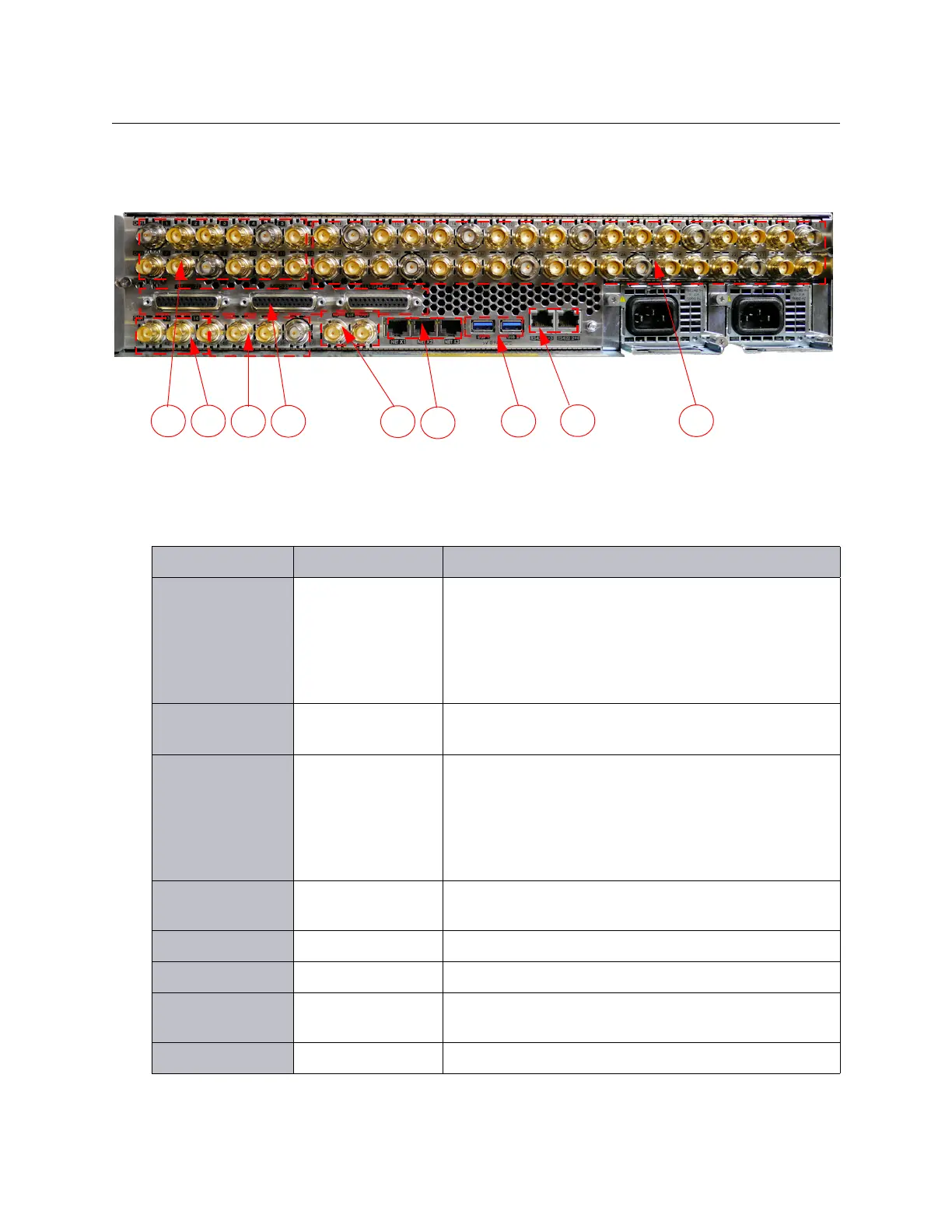

Kula 12G-SDI Mainframe Rear Connectors
A
H
G
B
C
E
F
C
D
Kula 12G-SDI Mainframe Connectors
Connectors Description Connector Information
A

Output BNCs
12x HD/SD/1080p (270Mbps / 1.485Gbps / 2.97Gbps)
Outputs.
Serial digital interface As REC601/ SMPTE/292M /
SMPTE424M via BNC connectors.

Including 3 x 12G-SDI (11.88Gbps SMPTE 2082) single link
BNC connectors (silver BNCs)
B Input/Output
Bi-directional BNCs
2x Bi-Directional Input/Outputs.
Numbered: 41 to 42 (2M/E) and 17 to 18 (1M/E)
C
Input BNCs
40 x HD/SD/1080p (270Mbps / 1.485Gbps / 2.97Gbps)
Inputs.
Serial digital interface As REC601/ SMPTE/292M /
SMPTE424M via BNC connectors.

Including 10 x 12G-SDI ( SMPTE 2082) single link BNC
connectors (silver BNCs).
D GPIO 3x 25 Way D-type GPIO connectors 
(1 - 22, 23 - 44, 45 - 66)
E Reference 1x Ref In and 1x Ref out
F Network 3x 10/100/1000 base T
G USB 2x USB3 - for external memory device or hard drives
USB outputs are 5 V DC, 0.9 A each
H Serial 2X RJ45, 4 x RS422 serial ports
