GRASS VALLEY KULA - Desk Cutout Information for KPP and K1 P Control Surfaces

41
Kula
Installation Manual
Desk Cutout Information for KPP and K1P Control Surfaces

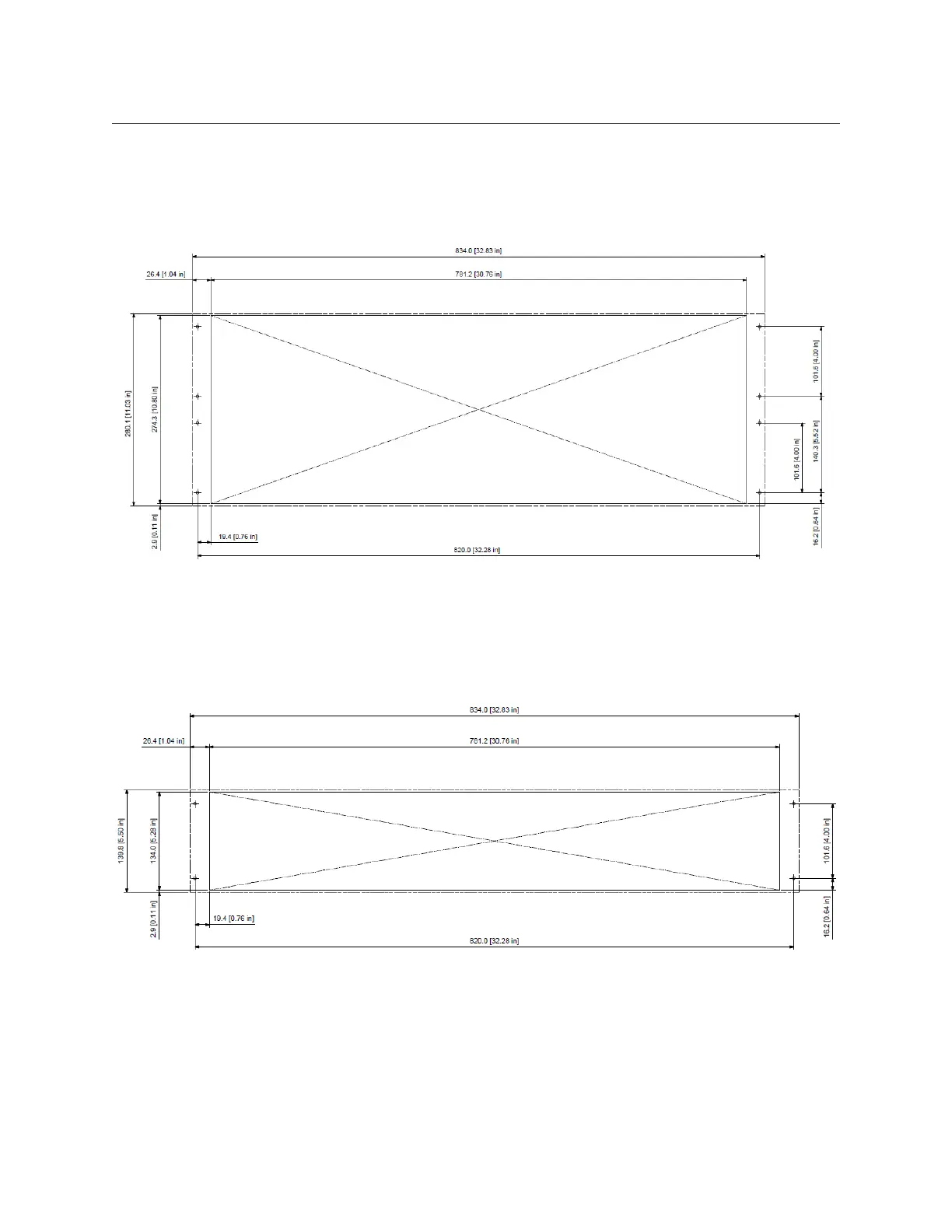

The desk cutout diagram below is for a 2M/E control surface, this is the KPP and K1P control
surfaces combined.
The desk cutout diagram below is for a 1M/E control surface, this is for the KPP as a single
control surface on its own.
