Kula
Installation Manual
Kula Mainframe Rear Connectors

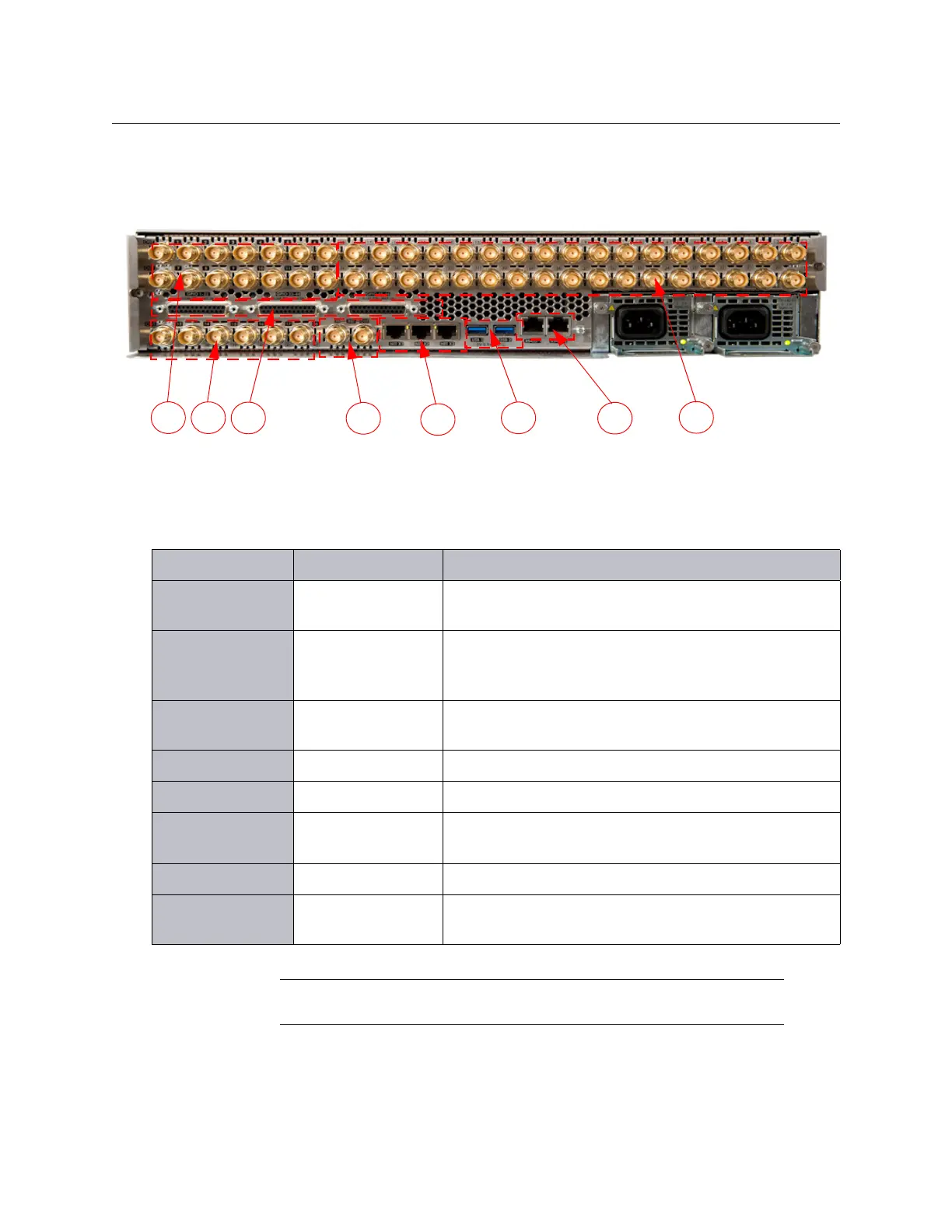

The table below outlines a 2M/E mainframe.
A
G
F
B
C
D
E
H
Kula Mainframe Connectors
Connectors Description Connector Information
A Output BNCs 12x SDO BNC Outputs total (numbered BNC 1 to 12)
(6x SDO BNC Outputs on the 1M/E Mainframe)
B Input/Output
Bi-directional BNCs
4x SDI/SDO BNC Inputs plus 2x Bi-Directional
Input/Outputs.
Numbered: 37 to 42 (2M/E) and 13 to 18 (1M/E)
C GPIO 3x 25 Way D-type GPIO connectors 
(1 - 22, 23 - 44, 45 - 66)
D Reference 1x Ref In and 1x Ref out
E Network 3x 10/100/1000 base T
F USB 2x USB3 - for external memory device or hard drives
USB outputs are 5 V DC, 0.9 A each
G Serial 2X RJ45, RS422 Ethernet ports
H Inputs 36x SDI BNC (numbered BNC 1 to 36)
(18x SDI BNC Inputs on the 1M/E Mainframe)
Note: Inputs and Outputs will vary, depending on the Kula system
purchased.
