19
Kula
Installation Manual

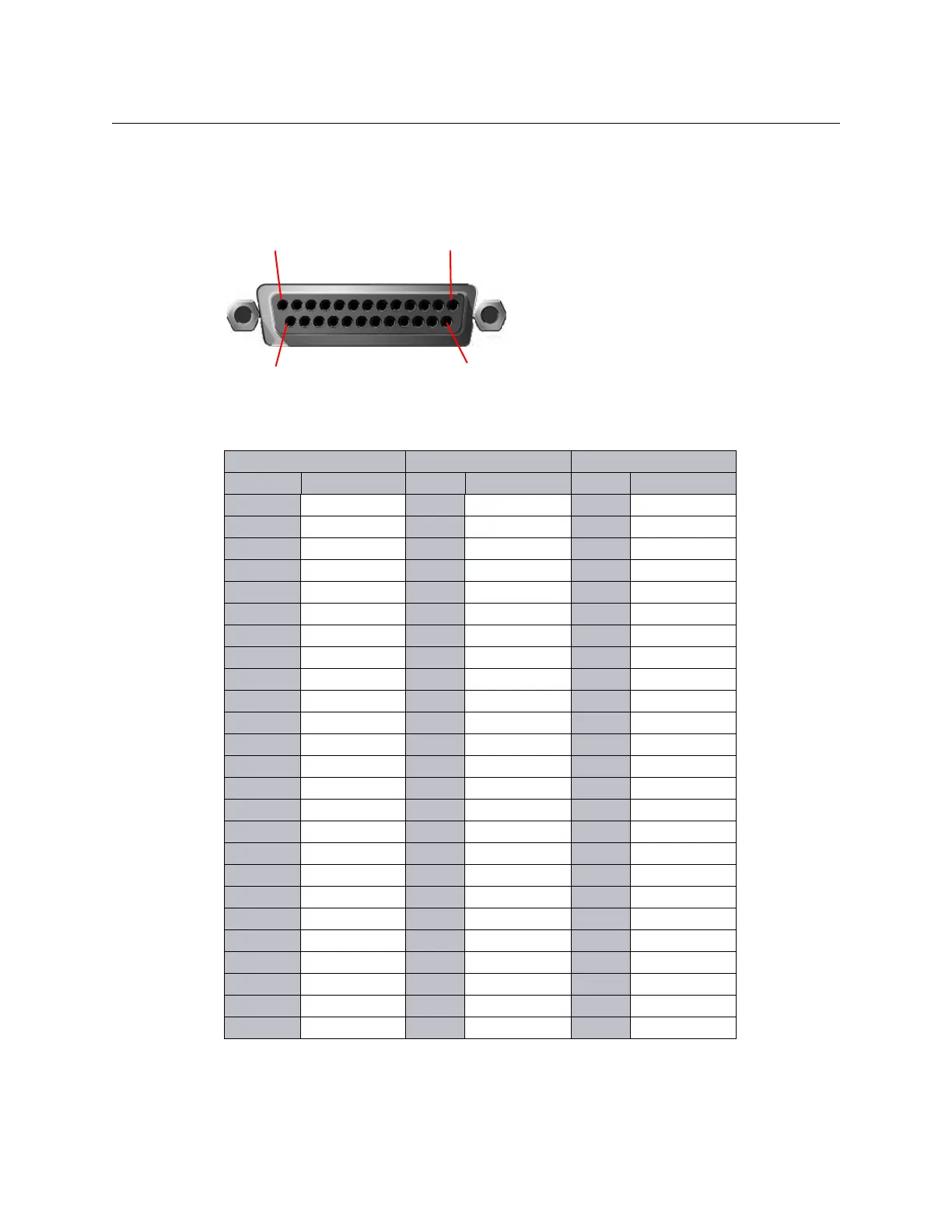

25 Way GPIO
3x 25 Way D-type GPIO connectors:
(1 - 22, 23 - 44, 45 - 66)
GPIO Pin-outs
GPI /GPO 1 - 22 GPI /GPO 23 - 44 GPI /GPO 45 - 66
Pin Signal Pin Signal Pin Signal
1 GND 1 GND 1 GND
2 GPO 2 2 GPO 24 2 GPO 46
3 GPO 4 3 GPO 26 3 GPO 48
4 GPO 6 4 GPO 28 4 GPO 50
5 GPO 8 5 GPO 30 5 GPO 52
6 GND 6 GND 6 GND
7 GPO 11 7 GPO 33 7 GPO 55
8 GPO13 8 GPO 35 8 GPO 57
9 GPO 15 9 GPO 37 9 GPO 59
10 GPO17 10 GPO 39 10 GPO 61
11 GND 11 GND 11 GND
12 GPO 20 12 GPO 42 12 GPO 64
13 GPO 22 13 GPO 44 13 GPO 66
14 GPO 1 14 GPO 23 14 GPO 45
15 GPO 3 15 GPO 25 15 GPO 47
16 GPO 5 16 GPO 27 16 GPO 49
17 GPO 7 17 GPO 29 17 GPO 51
18 GPO 9 18 GPO 31 18 GPO 53
19 GPO 10 19 GPO 32 19 GPO 54
20 GPO 12 20 GPO 34 20 GPO 56
21 GPO 14 21 GPO 36 21 GPO 58
22 GPO 16 22 GPO 38 22 GPO 60
23 GPO 18 23 GPO 40 23 GPO 62
24 GPO 19 24 GPO 41 24 GPO 63
25 GPO 21 25 GPO 43 25 GPO 65
