31
Kula
Installation Manual
LCD and LED Aux Panel - 19” Rack Installation
The method of mounting the LCD and LED Aux Panels into a 19” rack is exactly the same for
both Aux panels.

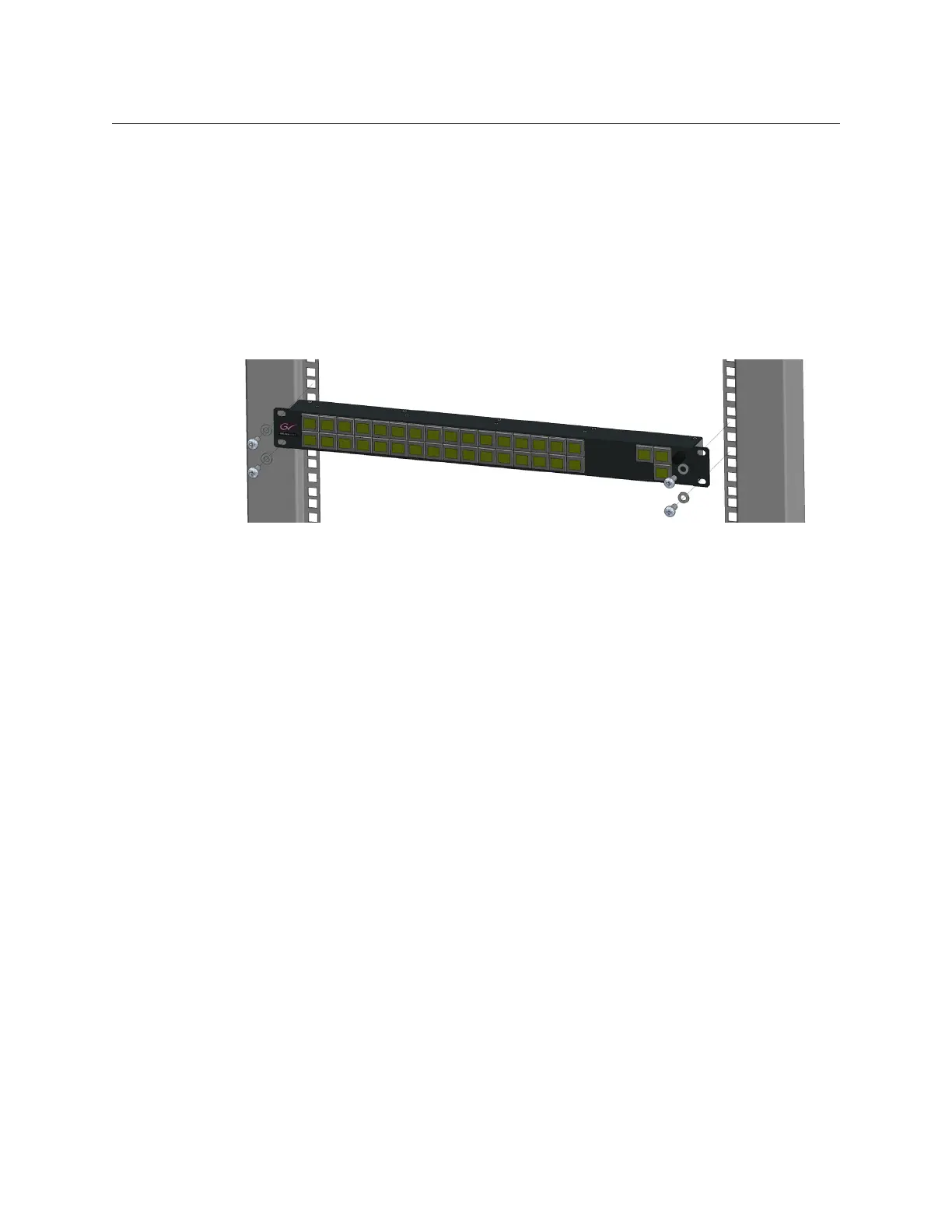

The ears of the Aux Panels have 2x holes on each side, use the correct rack mount screws
and fixings in the 4x mounting holes, to secure the Aux panel to the rack as shown below.
Make sure that enough access is allowed behind the Aux panel to connect the external PSU
and network cable.
