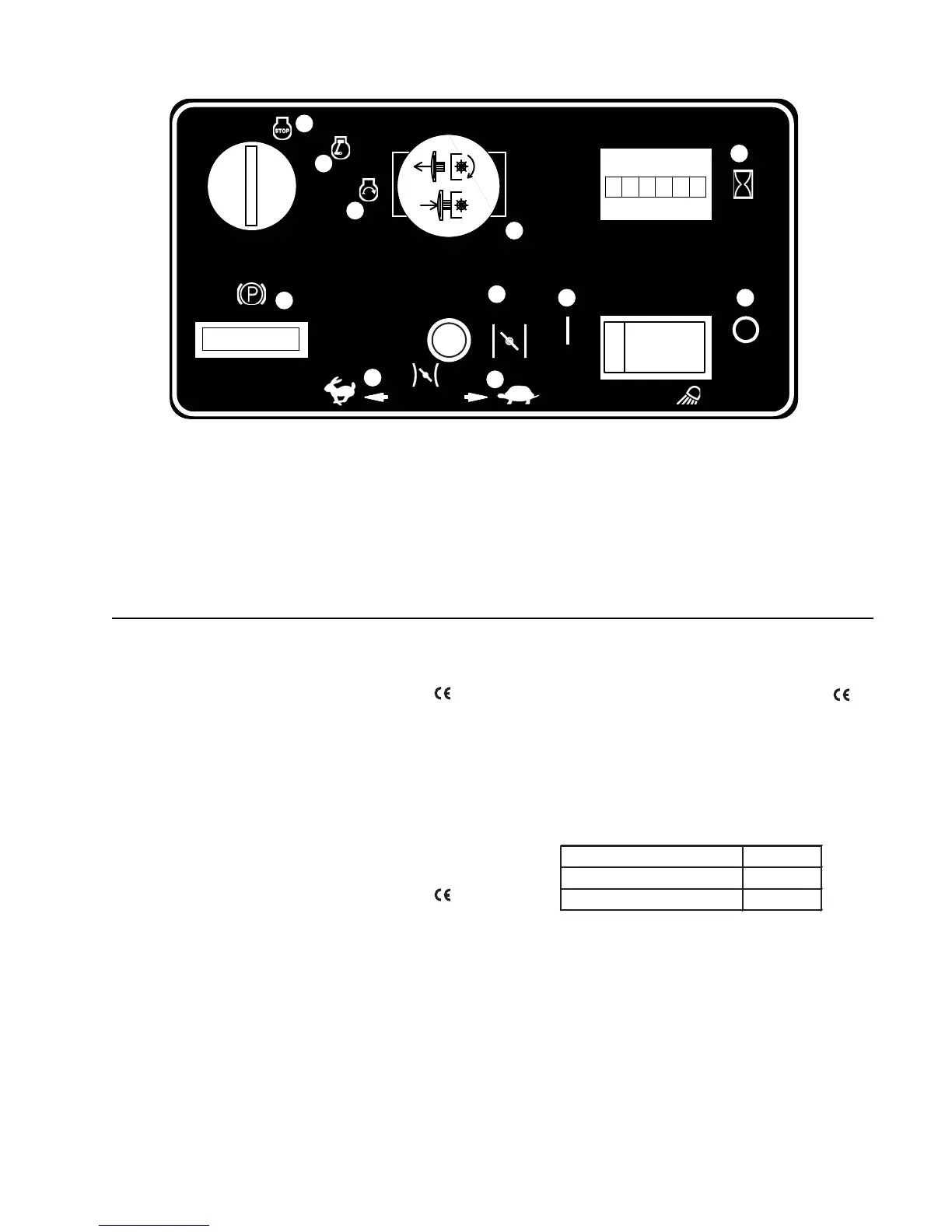

Grasshopper 124/52 - Control Panel Diagram (Page 11); Sound Level Information (Page 11)

11
INSTRUCTIONAL DECALS
1. Ignition Switch - Off
2. Ignition Switch - Run
3. Ignition Switch - Start
4. Parking Brake Indicator Light
5. Throttle - Fast
6. Throttle - Slow
7. Choke
8. PTO Clutch - Pull Out to Engage
9. Hour Meter
10. Work Lights - On
11. Work Lights - Off
Part No.161121
Sound Pressure Level
Note: The data contained in this section only
pertains to units marked with the CE logo (
).
This unit has an equivalent continuous A-
weighted sound pressure level at the operator
ear of 92dBA, based on measurements of identi-
cal machines per EN 11201.
Sound Power Level
Note: The data contained in this section only
pertains to units marked with the CE logo ( ).
Model 124/52 has a guaranteed sound power
level of 105 dBA, based on measurements of
identical machines per EN 11094.
Vibration Acceleration Levels
Note: The data contained in this section only
pertains to units marked with the CE logo (
).
Vibration acceleration levels are based on mea-
surements of identical machines per EN 1032 &
EN 1033.
1.5
.875
PTO CLUTCH
OFF
RUN
START
IGNITION
LIGHTS
ON
CHOKE
OFF
PULL OUT TO ENGAGE
THROTTLE
FAST SLOW
161121
BRAKE
HOURS
1
2
3
4
5
6
7
8
9
10
11
All values are meters per second squared (m/s
2
)
and represent the Mean Value of X, Y, Z Aeq.
Hand/Arm, Steering
1.82 m/s
2
Whole Body, Foot
0.86 m/s
2
Whole Body, Seat
0.35 m/s
2
