Grasshopper 124/52 User Manual

50
WIRING DIAGRAM
Item Order Description
No. No.
Item Order Description
No. No.
01-05113A / 05115
Rev. 06-13
605913 Wiring Assembly
161121 Decal - Console
1 183806 Ignition Switch
254498 Nylon Nut - Ignition Switch
2 182326 Indicator Light - Brake
3 184179 Light Switch (optional)
4 183925 Clutch Switch
5 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
6 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
7 183871 Seat Safety Switch
183870 Seat Safety Switch (Optional Seat)
8 182253 Work Lamp Assembly (optional)
(includes item 9)
9 182005 Light Bulb (optional)
10 182251 Bezel (optional)
11 184271 Relay w/Mount
12 181720 Fuse Block
162320 Fuse I.D. Decal
13 181470 Fuse 30 Amp Auto
181462 Fuse 10 Amp Auto
181460 Fuse 7.5 Amp Auto
14 141551 Hour Meter
15 183894 Brake Switch
16 180120 Battery 12 Volt
723062 Mount - Battery
17 420610 Battery Hold Down Strap
18 423690 Spacer - PC Board Support
19 180290 Battery Cable 30" Black
20 180322 Battery Cable 24" Red
425220 Battery Terminal Boot
425216 Alternator Terminal Boot
21 184251 Solenoid Switch 4 Post

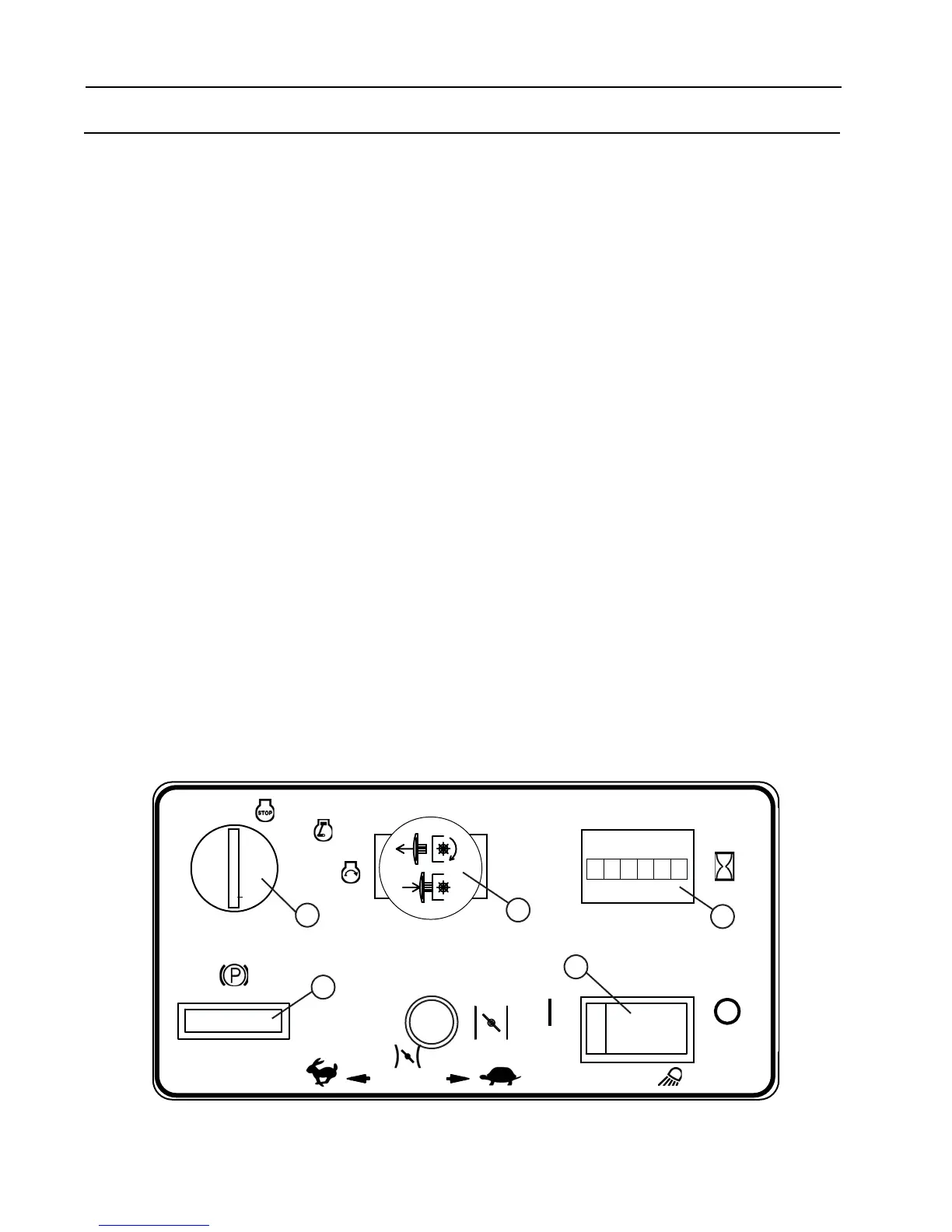

1.5
.875
PTO CLUTCH
OFF
RUN
START
IGNITION
LIGHTS
ON
CHOKE
OFF
PULL OUT TO ENGAGE
THROTTLE
FAST SLOW
161121
BRAKE
HOURS
1
2
3
4
14
