29

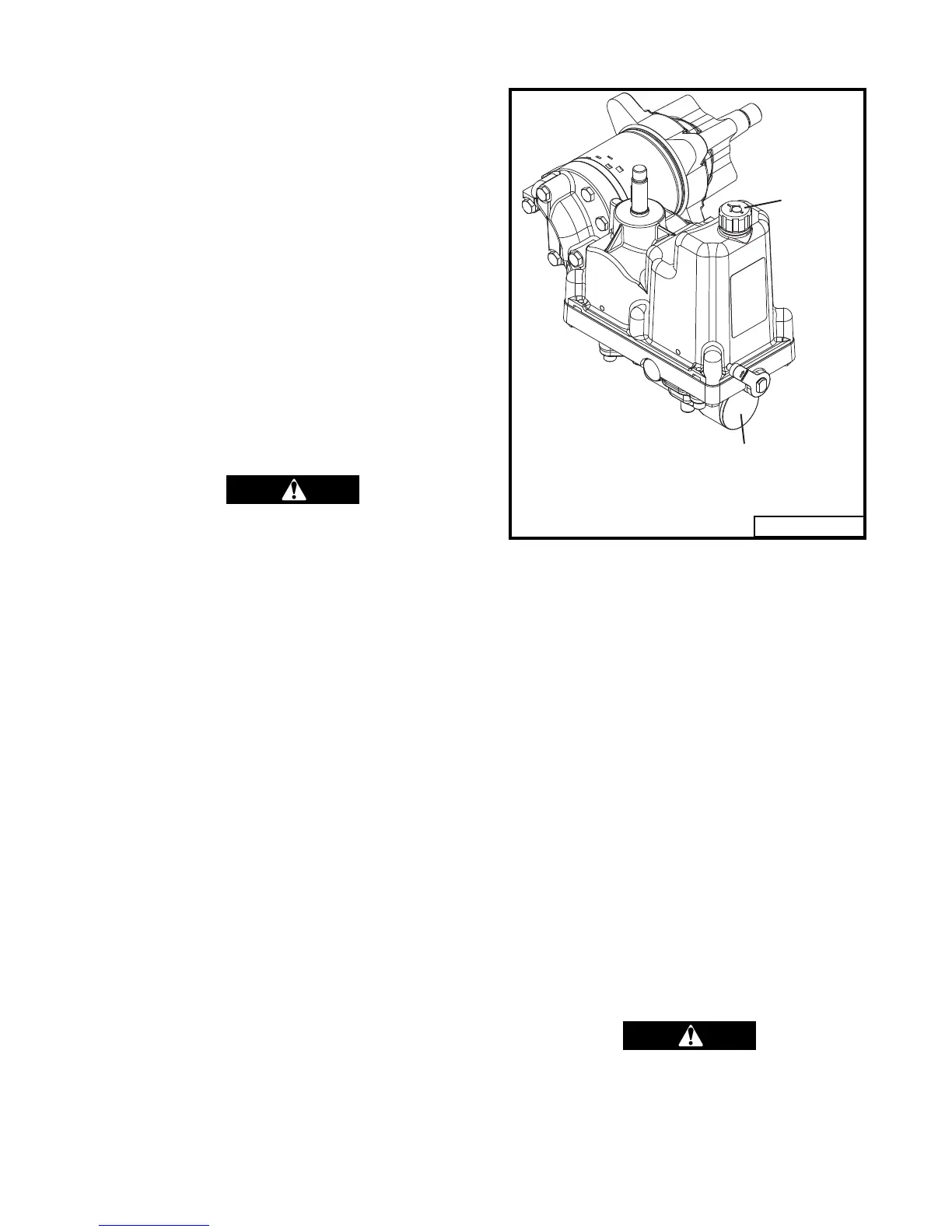

Fig. 9
detergent may damage electrical
components and terminals, possibly
leading to component and safety cir-
cuit failure.
Use a vacuum cleaner or air blower to remove
foreign material from the engine and drive com-
partment.
BATTERY MAINTENANCE
Battery is located under the right fender. Follow
the procedure below for battery maintenance.
• Clean battery.
• Inspect cables for loose connection.
• Clean terminals.
• Inspect battery tray and hold-down.
• Inspect battery case for cracks or leaks.
Batteries contain sulfuric acid. Avoid
contact with skin, eyes and clothing.
Batteries produce a highly explosive
hydrogen gas while being charged.
Always keep cigarettes, sparks, open
flame and other sources of ignition
away from battery. Always shield
eyes and face from battery. In the
event of accident, fl ush with water and
call a physician immediately. Keep
batteries and acid out of the reach of
children.
CHECKING
DRIVE SYSTEM
FLUID LEVEL
Check fluid level with the engine turned off
and fl uid at normal operating temperature. The
transmission fl uid reservoirs are located at the front
of each transmission. To check the fl uid level, raise
the seat and remove the breather/dipstick from
the reservoir. The fl uid level should be equal to
the "hot" mark on the dipstick (Refer to Fig. 9).
If fl uid is required, use CoolTemp Hydro-Max™
Extended-Life Hydrostatic Fluid (Grasshopper part
no. 345044 for 1 quart [.94 l] container).
DRIVE SYSTEM FLUID AND
FILTER MAINTENANCE
For Drive System, use CoolTemp Hydro-Max™
Extended-Life Hydrostatic Fluid, part no.
345044 for 1 quart (.94 l) container or part no.
345046 for 2 gallon (7.52 l) container. Use part
no. 130605 high effi ciency oil fi lter.
CHANGING DRIVE SYSTEM
FLUID
(Refer to Fig. 9)
Raise the seat. Place a drip pan under the
transmission reservoir and fi lter (at the front of
the transmission). Remove plug and fi lter and
drain fluid into the pan. Allow transmission
to drain completely. Install a new fl uid fi lter
and plug. torque plug to 115-135 in. lbs. Fill
reservoir with fluid. Let engine idle a few
minutes. Check fl uid level and refi ll if needed.
Repeat procedure for other transmission.
DO NOT operate machine with low
fl uid. Low fl uid could cause damage
to drive system and loss of control of
the machine.
LEFT
SIDE
BREATHER/
DIPSTICK
FILTER AND PLUG &
O-RING ASSEMBLY
REMOVE PLUG TO
CHANGE FILTER
12069
