Grasshopper 124/52 User Manual

56

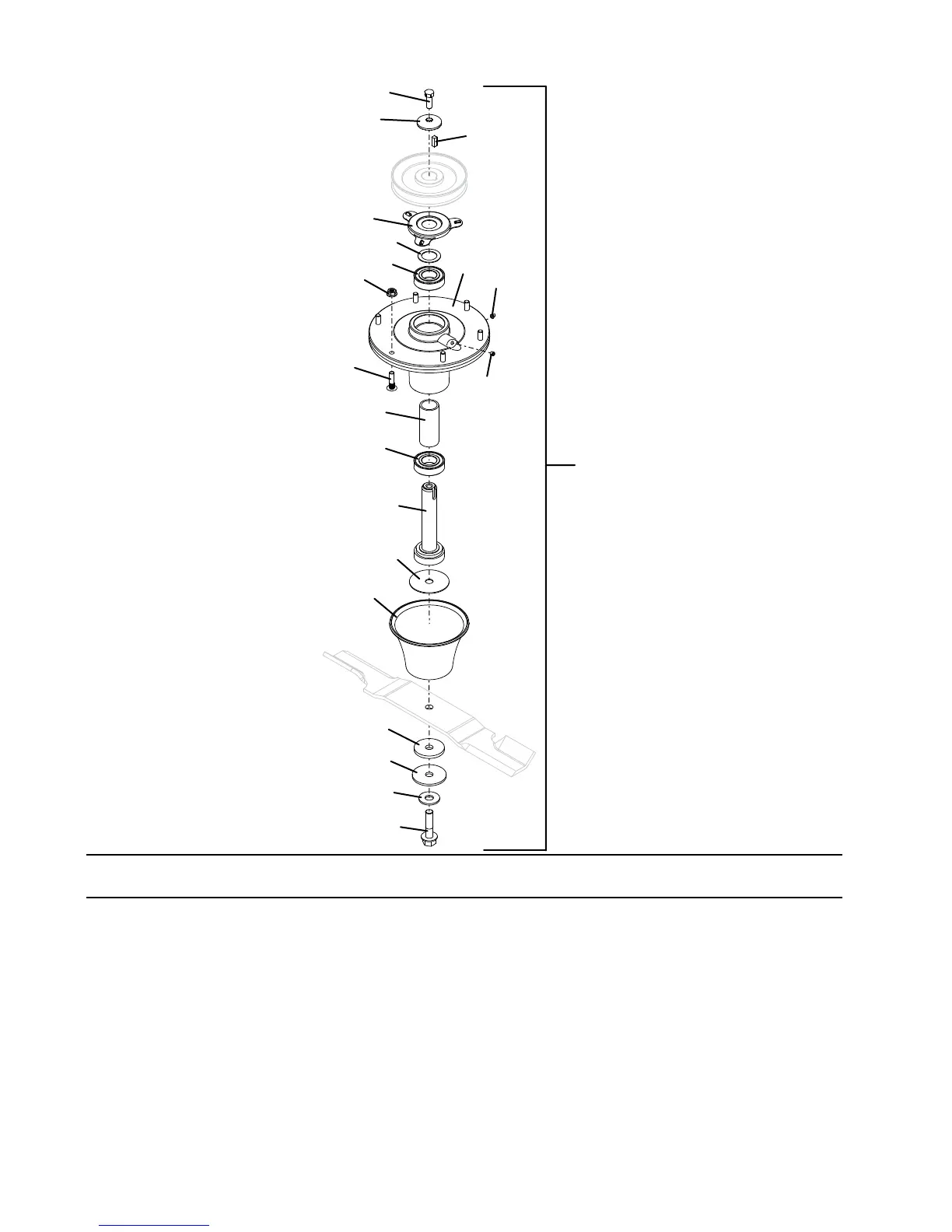

BLADE SPINDLE ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
10115
1 623750 Blade Spindle Assembly
(includes items 2-15)
2 243331 Bolt
3 257041 Cupped Washer
4 721167 Bearing Shield
5 257106 Washer - 18 Ga.
6 110081 Ball Bearing – Double Seal
7 604413 Spindle Housing
(includes items 8 & 9)
8 280705 Plug – Relief
9 247141 Stud Bolt
10 259305 Set Screw - Nylon
11 903643 Bearing Spacer
12 604775 Spindle Shaft Assembly
13 772061 Washer
14 423680 Defl ector Cone
15 421200 Fiber Washer
16 257061 Flat Washer
17 257057 Washer – Hardened
18 243583 Bolt - Grade 8
19 253035 Whiz Nut
20 281580 Square Key
1
2
3
4
5
6
7
8
9
10
11
6
12
13
15
17
18
19
20
10115
16
14
