24
CAUTION
CAUTION
CAUTION
LUBRICATION AND MAINTENANCE

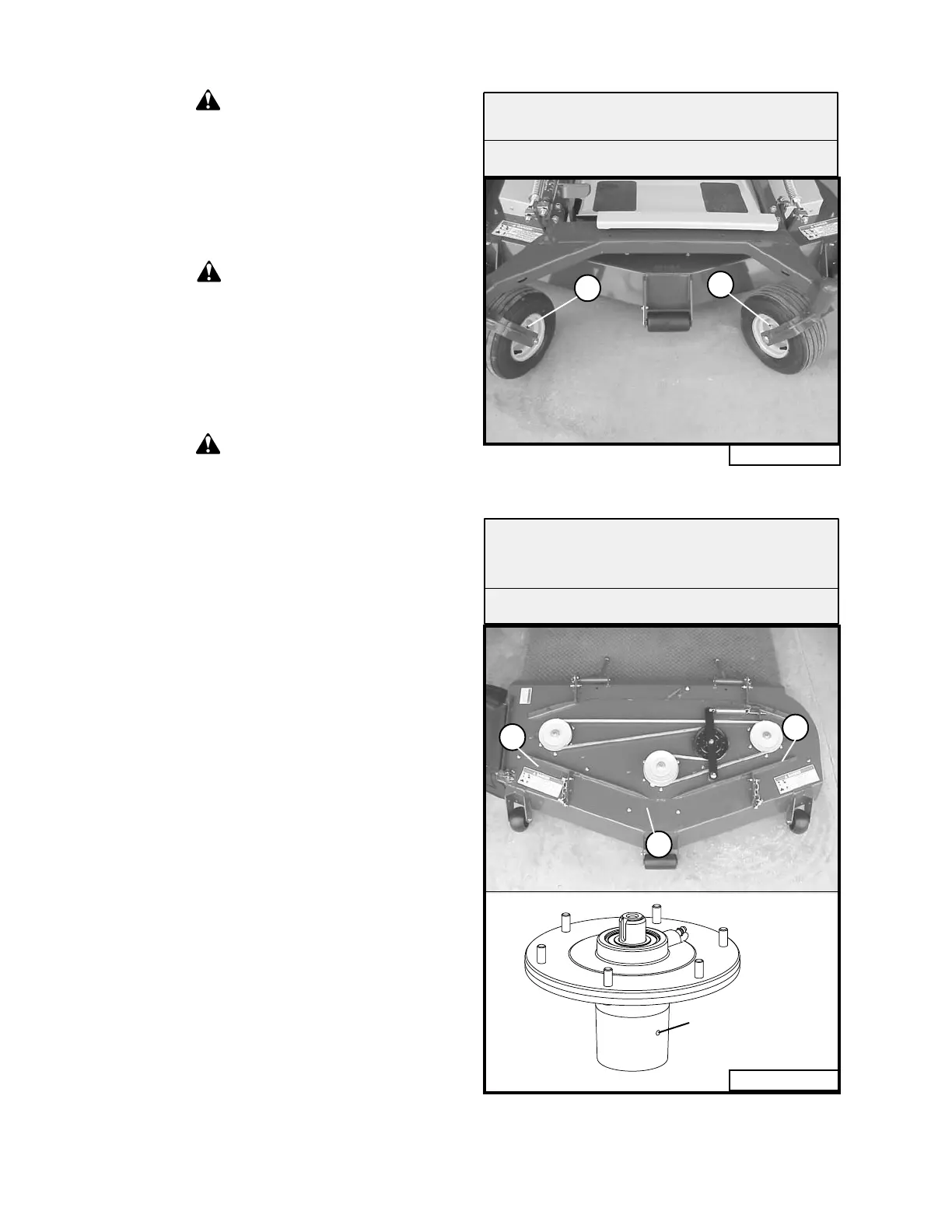

Fig. 9
Fig. 10
A
A
B
B
B
Always perform maintenance with the
machine parked on a hard level
surface; with the engine stopped and
the PTO disengaged; with the park
brake set; and with the key removed
from the ignition.
Always remove the grounded (-)
clamp from the battery when
performing maintenance on the
engine, clutch, or any other electrical
system. To access battery, remove
the left fender.
Always wear safety glasses and ear
protection when performing any
maintenance function that could cause
injury to eyes or ears.
Read all safety information on pages 6 through 10.
LUBRICATION
(Refer to Fig. 9 & 10)
Do not let excess grease collect on or around
parts, particularly when operating in sandy areas.
See accompanying illustrations for lubrication
frequency points. Severe or unusual conditions
may require more frequent lubrication.
In addition to these lubrication points, lightly oil all
linkage pivot points.
Use SAE multipurpose type grease for all locations
shown. Be sure to clean fitting thoroughly before
using grease gun.
Apply 1/2 to 1 Stroke
Every 8 Hours of Usage
Front Wheel Bearings (A) (two fittings)
Grease semi-annually or every 300 hours.
Apply 3 to 5 strokes or until grease comes
out the relief hole.
Mower Blade spindles (B)
Relief Hole
(Deflector Cone
Removed)
08068
Rev. 10-09
