Grasshopper 223 - Wiring Diagram; Pto Clutch

50
WIRING DIAGRAM
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
01-99072A / 02-03073D
Rev. 06-07
605900 Wiring Assembly
161122 Decal - Console
1 183806 Ignition Switch
254498 Nylon Nut - Ignition Switch
2 182326 Indicator Light - Brake
3 184179 Light Switch (optional)
4 183925 Clutch Switch
5 183860 Safety Switch - Rt. Steering
720160 Rt. Steering Switch Mount
6 183860 Safety Switch - Lt. Steering
720161 Lt. Steering Switch Mount
7 183871 Seat Safety Switch
8 182253 Work Lamp Assembly (optional)
(includes item 9)
9 182005 Light Bulb (optional)
10 182251 Bezel (optional)
11 184271 Relay w/Mount
12 181722 Fuse Block
162320 Fuse I.D. Decal
13 181470 Fuse 30 Amp Auto
181462 Fuse 10 Amp Auto
181460 Fuse 7.5 Amp Auto
14 141551 Hour Meter
15 183894 Brake Switch
16 180125 Battery 12 Volt
644090 Battery Box
17 604785 Battery Hold Down Strap w/Clip
18 181735 Fuse Holder
181470 Fuse 30 Amp Auto
19 180290 Battery Cable 30" Black
20 180330 Battery Cable 30"
425219 Battery Terminal Boot
21 423690 Spacer - PC Board Support

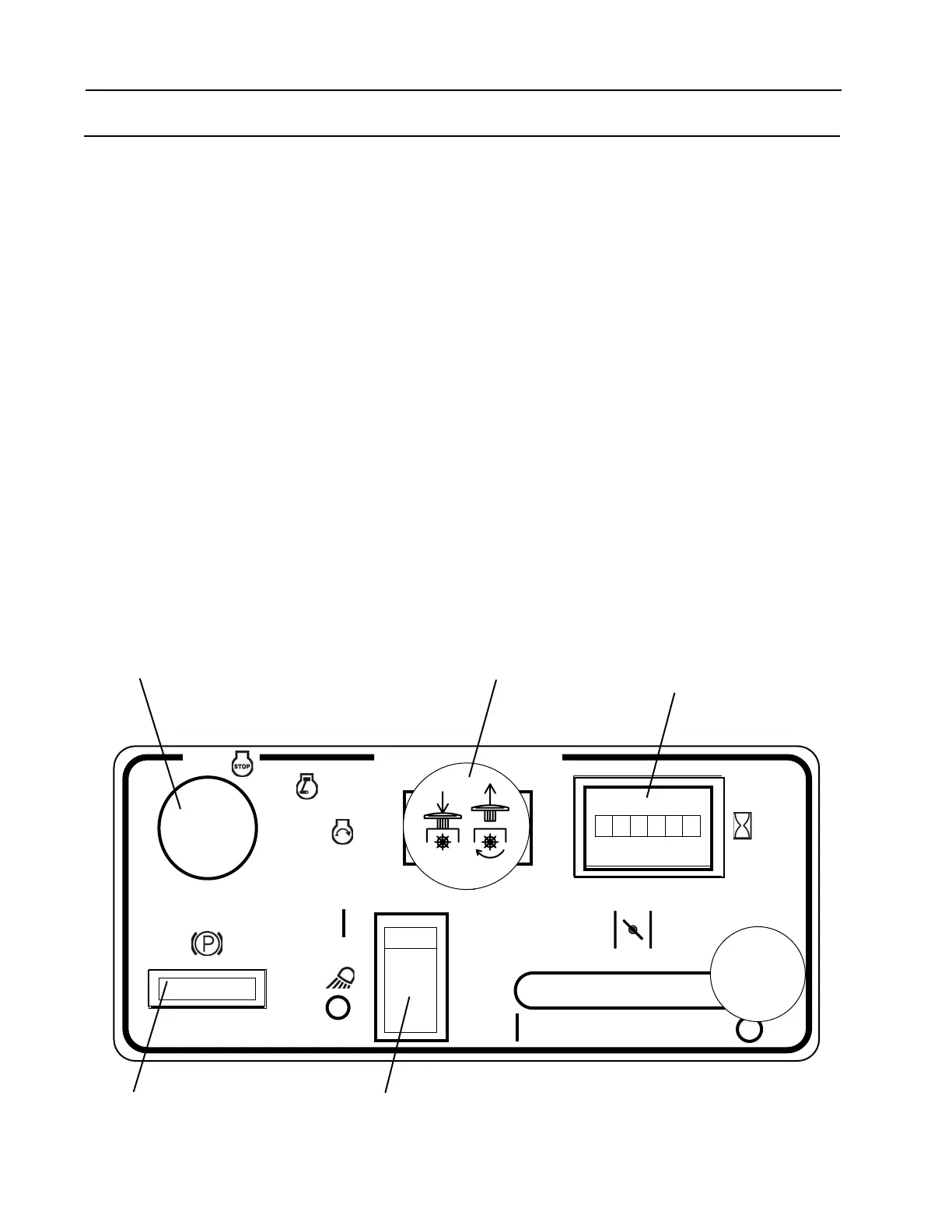

99072A
OFF
RUN
START
IGNITION
LIGHTS
ON
OFF
PTO CLUTCH
PULL OUT TO ENGAGE
CHOKE
OFF
ON
161122
HOURS
BRAKE
1
2
3
14
4
