Grasshopper 223 - Blade Spindle Assembly - M172

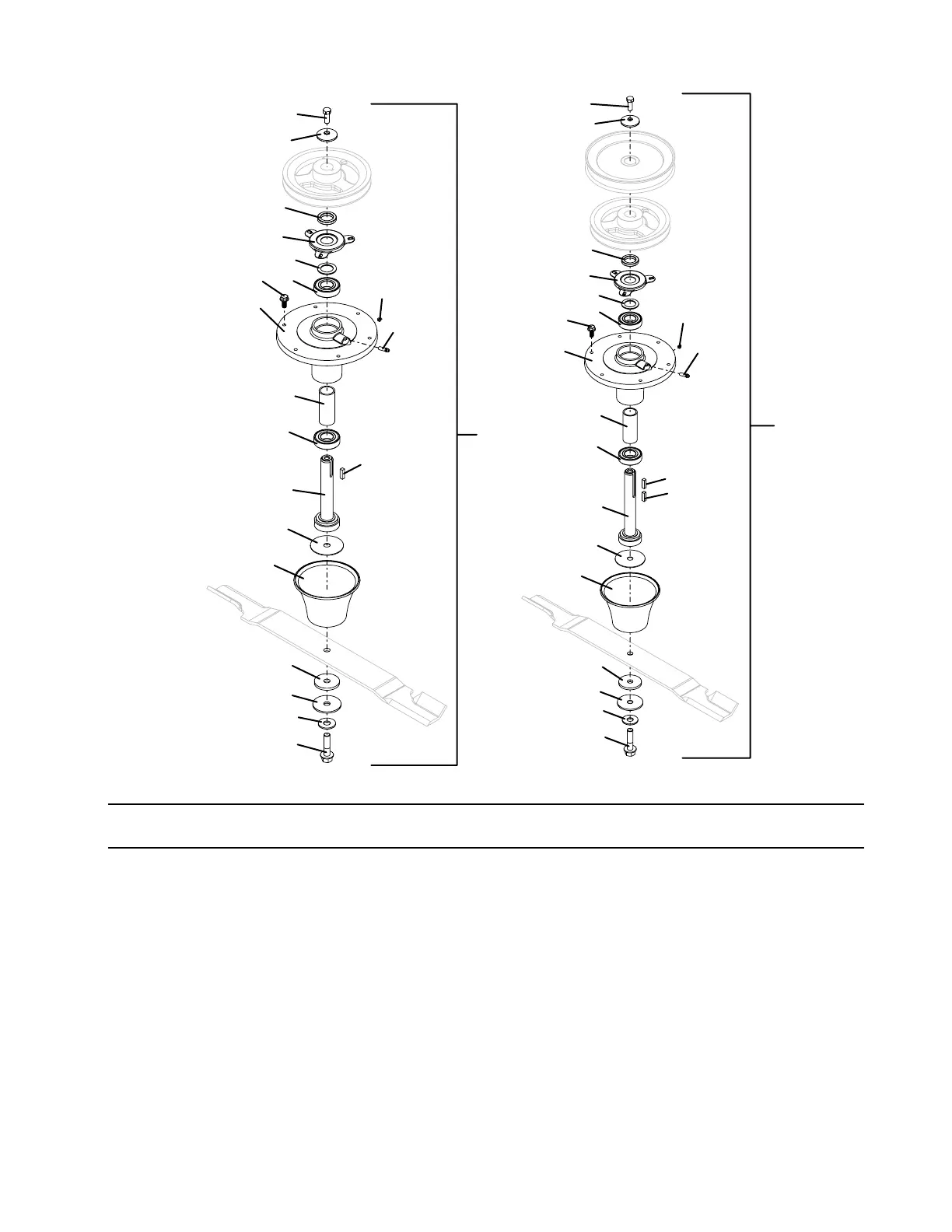

BLADE SPINDLE ASSEMBLY - M172
08-08064A/08-08065A
Rev. 01-10
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
1 623764 Blade Spindle Assembly Lt/Rt
(includes items 3-19)
2 623765 Blade Spindle Assembly Center
(includes items 3-8 & 10-20)
3 243331 Bolt .375-24 x 1
4 257041 Cupped Washer
5 110081 Ball Bearing 25 mm - Double Seal
6 604414 Spindle Housing
(includes item 19)
7 280745 Grease Fitting
8 903643 Bearing Spacer
9 604774 Spindle Shaft Assembly Lt/Rt
10 421200 Fiber Washer
11 257061 Flat Washer
12 257057 Washer .5 - Hardened
13 243583 Flange Bolt .5-20 x 2 GR 8
14 282607 Spacer .25
15 772061 Washer .510 x 2.625
16 423680 Deflector Cone
17 721167 Bearing Shield
18 257104 Washer 1 x 14 Ga
19 280705 Plug - Relief
20 604773 Spindle Shaft Assembly Center
21 281583 Square Key .25 x 1.25
22 253192 Whiz Bolt .312-18 x .75 Flange
23 281582 Square Key .25 x .875
65
3
4
14
17
5
6
18
7
19
8
5
21
9
15
16
10
11
12
13
22
1
08064A
2
3
4
14
17
18
5
22
6
7
19
8
5
21
20
15
16
10
11
12
13
08065A
LEFT / RIGHT
CENTER
23
