NAUTIC
Combination of NAUTIC Prop and NAUTIC Expert modules
For the PPM18 and PPM24 transmission modes
Modules required at the transmitter
NAUTIC Multi-Prop module
Order No. 4141
16-channel NAUTIC Expert module
Order No. 4108
(See pages 157 / 158 for description of modules)
Method of working
If a combination of NAUTIC Expert and NAUTIC-
Prop modules is used, one receiver output is ex-
panded to provide four servo sockets, and the se-
cond receiver output provides sixteen switched
functions. Both modules are installed and connec-
ted as already described on pages 157 and 158.
Please read the set-up notes and requirements
described at that point.
The jumpers supplied with the adaptor lead
4184.4 must be fi tted to both NAUTIC modules in-
stalled in the transmitter.

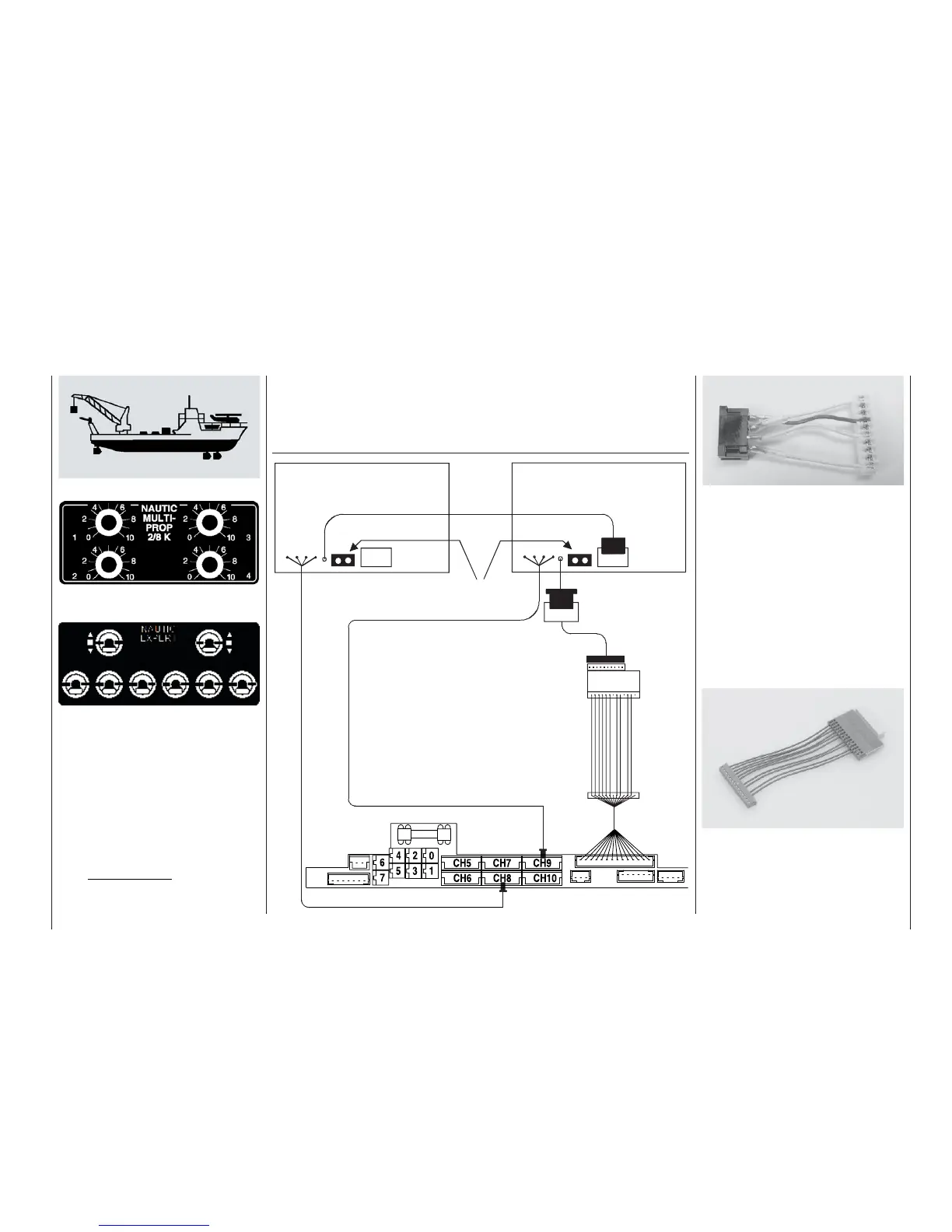

mc-22s transmitter connections
NAUTIC Expert 16-channel module
Order No. 4108
NAUTIC Multi-Prop module
Order No. 4141
Fit the jumpers!
NAUTIC adaptor,
Order No. 4184.4
Adaptor, Order No. 4184.1
or
mc-22(s)
interface distributor,
Order No. 4182.3
Transmitter interface
mc-19 / mc-22(s) / mc-24 NAUTIC adaptor
Order No. 4184.4
For connecting NAUTIC modules to the mc-22s in-
terface distributor, Order No. 4182.3, or to the ad-
aptor 4184.1. The jumpers supplied with the adap-
tor lead must be fi tted to the NAUTIC modules in
the transmitter.
mc-22(s) / mc-24 adaptor
Order No. 4184.1
This adaptor is required if the transmitter is not al-
ready fi tted with an interface distributor, and only
one Trainer system, PROFI-TRIM module or one /
two NAUTIC modules is to be connected.
