142

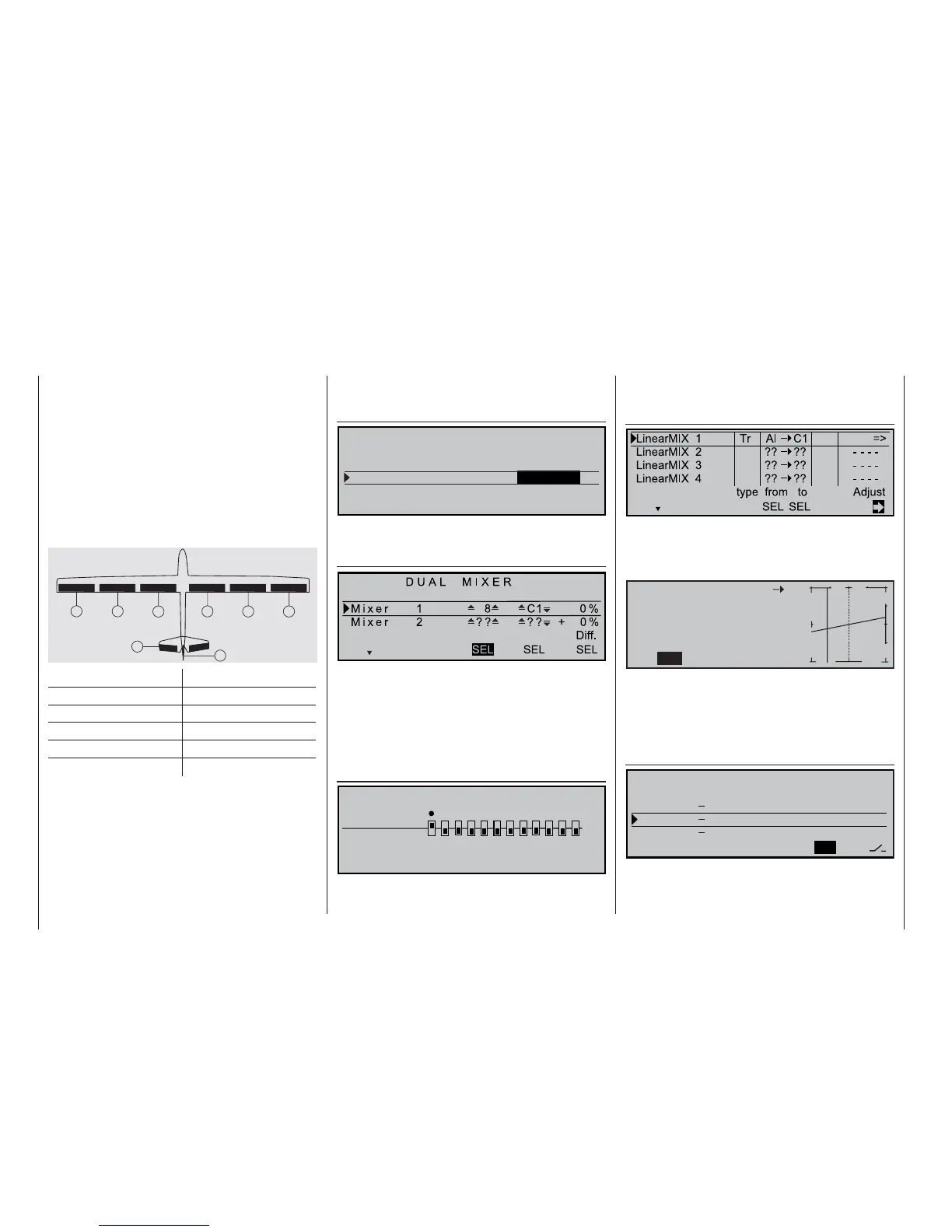

Six-fl ap wing
In its standard form the mc-22s fi xed-wing program
provides a convenient method of controlling a ma-
ximum of four servos for the superimposed aileron /
fl ap functions.
If the wings are fi tted with six control surfaces, a dual
mixer and a free mixer can be set up to control two
more servos (connected to receiver outputs 8 + 1) as
supplementary inboard ailerons and fl aps.
For this example we consider a glider without airbra-
kes in the wings.
Connect the servos to the receiver in the following se-
quence:
Control surface Receiver output
Ailerons 2 + 5
Flaps 6 + 7
Supplementary fl aps 8 + 1
Elevator 3
Rudder 4
To control all the wing fl aps you will need the two
sticks plus one or two linear sliders or rotary controls,
or alternatively two-channel switched modules con-
nected to inputs CH5, CH6 and CH8 on the trans-
mitter circuit board (two-channel proportional modu-
le, Order No. 4152, proportional rotary module, Order
No. 4111). The switch modules (Order No. 4151 or
4151.1 … 3) are used to switch between pre-set fl ap
settings.
Programming examples – Fixed-wing models
To set up a control system for all the servos, fi rst
switch to the menu ...
»Model type« (page 52)
M O D E L T Y P E
M o t o r N o n e
T a i l t y p e N o r m a l
A i l e r o n / c a m b e r
f l a p s 2 A I L 2 F L
B r a k e O f f s e t + 1 0 0 % E n t e r 1
S E L
t
s
Select “2AIL 2FL” in the “Ailerons / fl aps” line, then
switch to the menu ...
»Dual mixers« (page 110)
… and set up mixer 1 to „
8
“ and „
C1
“.
This dual mixer combines servos 8 and 1 to act as ai-
lerons (8 and 1 opposite movement: „
C1
“) and as
fl aps (8 and 1 same direction „
8
“). However, sin-
ce the ailerons are not controlled by the Ch1 stick, but
by the aileron stick, you must now move to the menu
…
»MIX-only channel« (page 108)
M I X O N L Y C H A N N E L
M I X o n l y
n o r m a l
1 2
3 4
5 6
7 8 9 1 0
1 1 1 2
… and set channel 1 to “MIX-only channel” status.
This “disconnects” the throttle / brake stick (Ch1) from
control channel 1.
Now move to the menu ...
»Free mixers« (page 102)
… and assign “TR” and “AIL Ch1” to an unused li-
near mixer.
On the second screen page you can enter a mixer va-
lue to suit your model.
L i n e a r M I X 1 T r A I C 1
M i x i n p u t O f f s e t
+ 2 0 % + 2 0 % 0 %
®
O U T P U T
-
+
1 0 0
S T O
A S YS Y M
C L R
This mixer transfers the aileron function to the two in-
board fl ap servos 8 + 1 with the help of the dual mixer
which you set up previously.
Now we need to program the fl ap servos 6 + 7 to act
as ailerons. Move to the menu ...
»Wing mixers« (page 84)
A i l e r o n d i f f e r e n c e + 0 %
F l a p d i f f e r e n c e + 0 %
A i l e r o n s 2 > 4 R u d d e r + 0 %
A i l e r o n s 2 > 7 F l a p s +
0 %
B r a k e > 3 E l e v a t o r + 0 %
S E L
t
s
… and set an appropriate value for aileron control of
the fl aps in the “Ailerons 2 7 Flaps” section.
The settings you have programmed up to this point
1
2
5
6
8
7
3
4
