Programming examples – Fixed-wing models

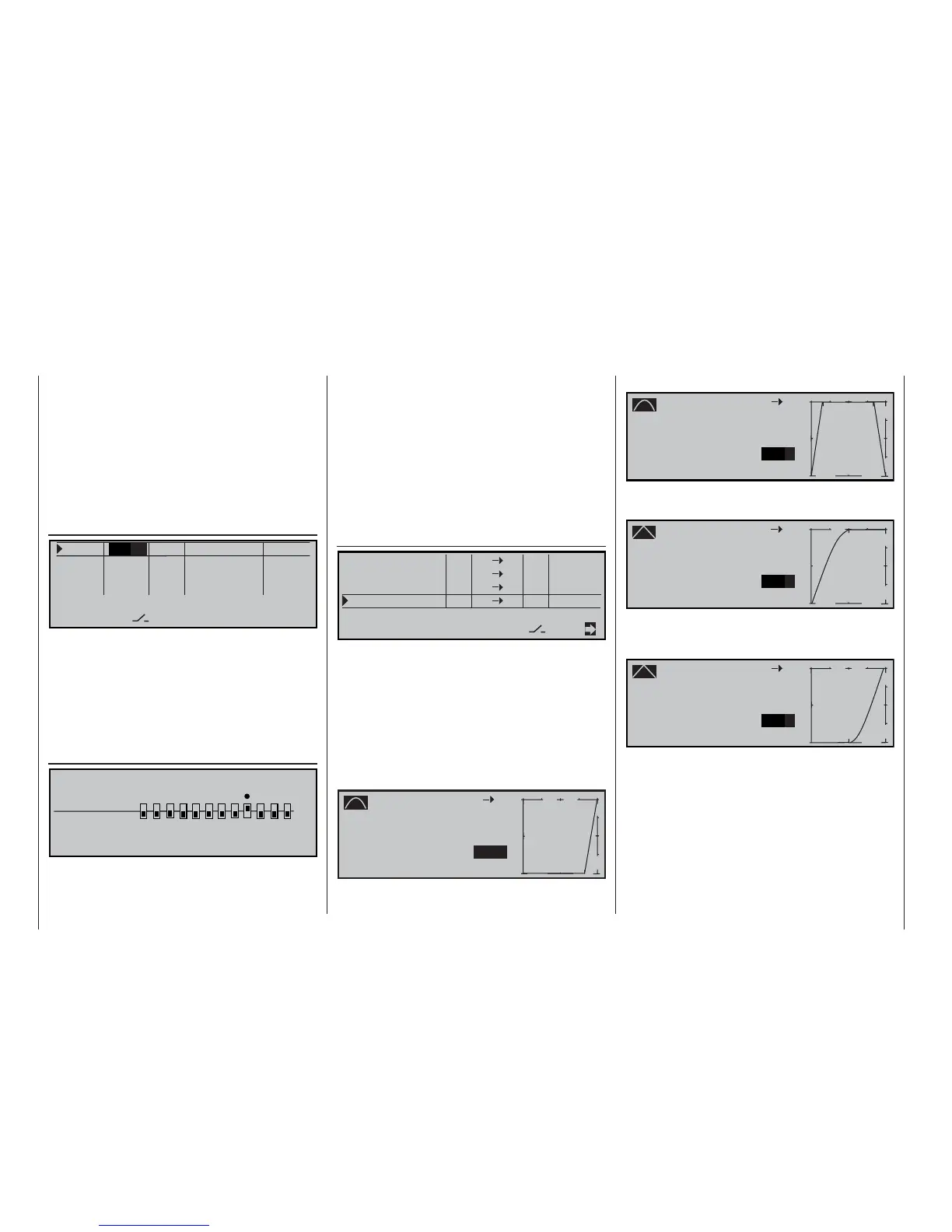

Controlling timed sequences
using time delay and curve mixers
An interesting but little know possibility with the soft-
ware of the mc-22(s) is the facility to apply a delay of
up to 9.9 seconds to virtually any servo movement,
controlled by a switch.
The following section includes a number of examples
which illustrate how such systems can be program-
med. Once you have become familiar with these facili-
ties you will undoubtedly think of other applications.
The fi rst step in the programming is to move to the
menu …
»Control adjust« (page 58)
E n t e r 9 C n t r
7
0 % + 1 0 0 % + 1 0 0 % 0 . 0 0 . 0
E n t e r 1 0 C n t r 1 0 0 % + 1 0 0 % + 1 0 0 % 0 . 0 0 . 0
E n t e r 1 1 f r e e 0 % + 1 0 0 % + 1 0 0 % 0 . 0
0 . 0
E n t e r 1 2 f r e e 0 % + 1 0 0 % + 1 0 0 % 0 . 0 0 . 0
o f f s e t - t r a v e l +
- t i m e +
t
s
A S Y
S Y M
A S Y
S Y M
S E L
S E L
… where you assign one of the standard sliders to
the control channel you wish to use; the slider is then
used as a tool to move to any point on the control cur-
ve during the programming procedure. In our example
this is transmitter control 7 assigned to channel 9. Ini-
tially you should not enter a time delay in the “-Time+”
column.
Next we move to the menu …
»MIX-only channel« (page 108)
M I X O N L Y C H A N N E L
M I X o n l y
n o r m a l
1 2
3 4
5 6
7 8 9 1 0
1 1 1 2
…where the selected control channel – in our examp-
le “9” – is set to “MIX only”.
Setting the control channel to “MIX only” is absolutely
essential, because the control curves of the curve mi-
xers which are described in the following example can
only infl uence the output of the same channel in the
way we want if there exists no direct connection bet-
ween the transmitter control and the output. Once this
requirement is met, we can manipulate the transmit-
ter control signal in almost any way on its detour via
a curve mixer, before it is passed on to the appropria-
te output.
For this reason the next step is to move to the menu
…
»Free mixers« (page 102)
L i n e a r M I X 2 ? ? ? ? - - - -
L i n e a r M I X 3 ? ? ? ? - - - -
L i n e a r M I X 4 ? ? ? ? - - -
-
C u r v e M I X 5 9
9 = >
t y p e f r o m t o A d j u s t
S E L
t
s
S E L
S E L
… where a same-channel curve mixer is program-
med, e.g. from “9” to “9”. On the second page of the
menu we defi ne the desired shape of the control cur-
ve; please note that the examples shown here are
only intended stimulate your own ideas for designing
control curves to suit your particular application.
For example, the control curve for …
… delayed switching of a searchlight after the
start of the undercarriage extension process
might look like this:
C u r v e M I X 5 9 9
I n p u t - 1 0 3 %
C u r v e O u t p u t - 1 0 0 %
o f f P o i n t L - 1 0 0
%
®
O U T P U T
-
+
1
1 0 0
… while the actuation of a wheel door, which clo-
ses again after the undercarriage has extended,
might look like this:
C u r v e M I X 5 9 9
I n p u t - 1 0 4 %
C u r v e O u t p u t - 1 2 1 %
o f f P o i n t L - 1 0 0
%
®
O U T P U T
-
1 0 0
+
1
2
… and an exponential motor start-up, or the ex-
tension of a folding power system …
C u r v e M I X 5 9 9
I n p u t - 1 0 3 %
C u r v e O u t p u t - 1 0 7 %
o n P o i n t L - 1 0 0
%
®
O U T P U T
-
1 0 0
+
1
… with the drive motor (connected to output 10)
starting under the control of the same switch, but
with a time delay:
C u r v e M I X 5 9 1 0
I n p u t - 1 0 4 %
C u r v e O u t p u t - 1 0 0 %
o n P o i n t L - 1 0 0
%
®
O U T P U T
-
1 0 0
+
1
Once you have completed the programming of the
function to meet your requirements, and have ensu-
red that it works correctly – you can check this at any
time by switching to the »Servo display« menu –
then move to the menu …
