Transmitter Setup
Turning on the Transmitter

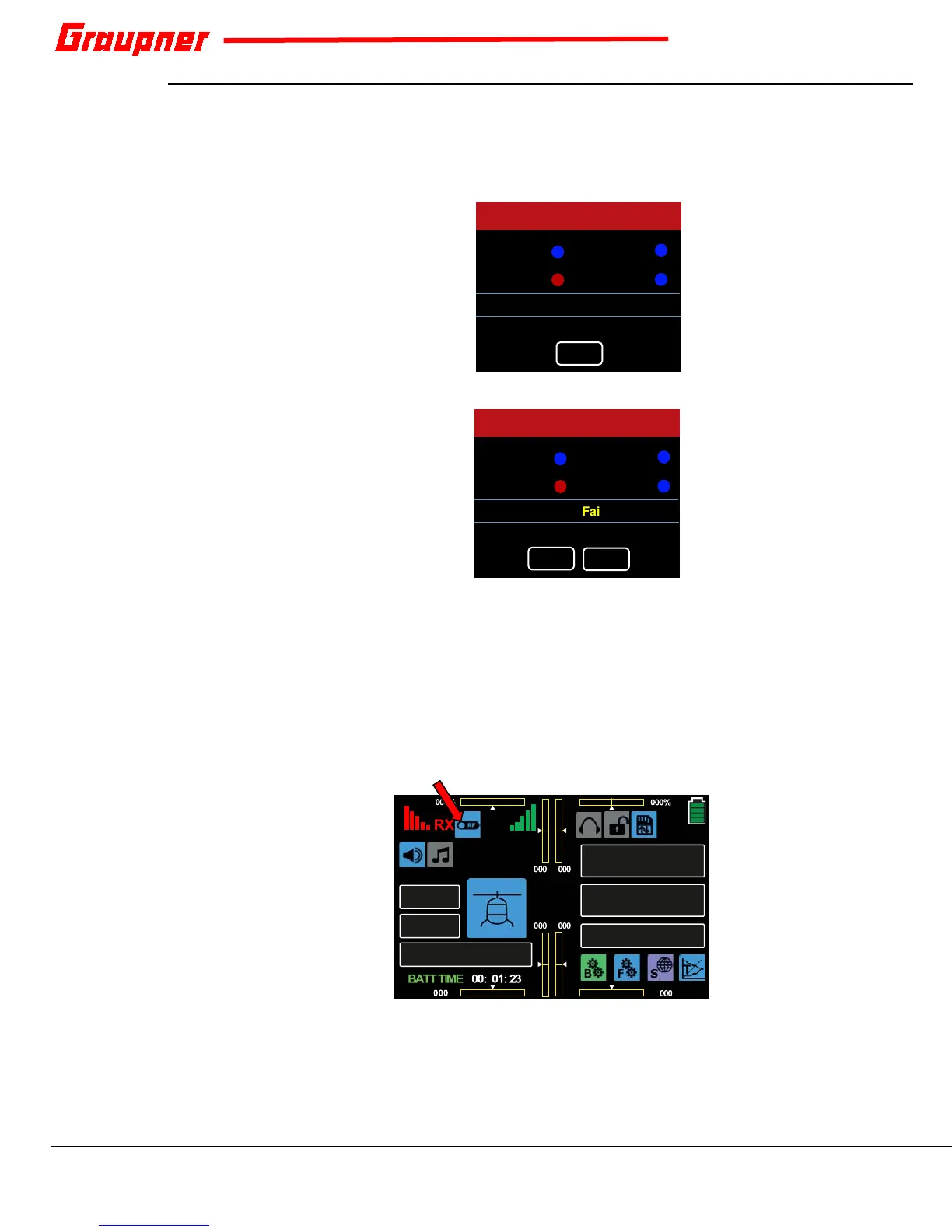

Whenever the transmitter is turned on, you will see a Warning Window.
If a receiver is not bound to the transmitter a warning screen appears.
Select SET to open the Bind Function screen.
If a receiver is bound to the transmitter, another warning screen appears.
Select ON or OFF to turn on or off the RF.
On the Home Screen, locate the RF icon. If the RF is off, the icon is greyed
out. If the RF is on indicating that the TX is bound to an RX, the icon is
highlighted blue and TX and RX will appear on each side of the icon. If the
receiver is active, bar graphs will appear indicating the transmitter (TX)
and receiver (RX) signal strength.
Mz-24 PRO menus
There are four icons on the lower right hand corner that allow you direct
access to each of the radio functions menus
Warning
Thr.HOLD Thr.CUT
Thr.POS PHASE
SET
Warning
Thr.HOLD Thr.CUT
Thr.POS PHASE
TX
RX 05.5V
4.2V
0:01:23
M- 1
MODEL NAME 1
mz
000:00.0
000:00.0
PHASE 1
Fail Safe not set
No receiver bound to TX
Fail Safe not set
Please select RF ON/OFF
Normal signal
ON
OFF
