Stick Adjustment

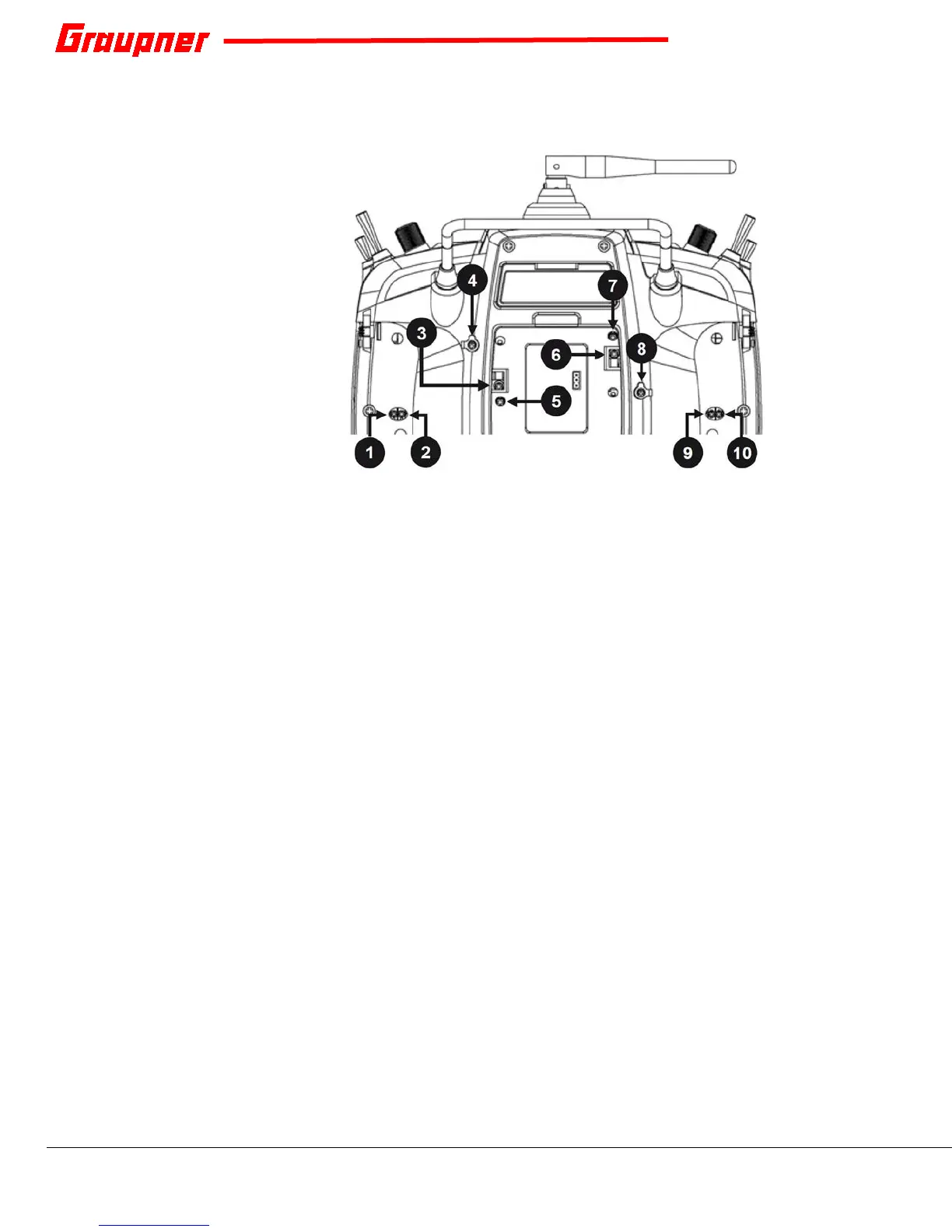

All adjustments can be made on the back side of the transmitter without
opening the transmitter case using a cross head screwdriver.
Battery Compartment Screwsets
Two sets of screws can be reached through the battery compartment, one
for each stick.
Turn the top left screw (3) counterclockwise to disable the stick’s
centering tension. Turn the bottom left screw (
5) clockwise to increase
the spring tension.
Turn the bottom right screw (6) clockwise to disable the stick’s forward
and back centering tension. Turn the top right screw (
7) clockwise to
increase the spring tension.
Rubber Hand Grip Screwsets
Remove the rubber hand grips to reveal two small black screws for each
stick.
Turn the outermost screws (1 and 10) clockwise to increase friction so the
stick will stay in place. Turn the innermost screws (
2 and 9) clockwise to
increase detente friction
Rubber Plug Screwsets
Remove the small rubber plugs on either side of the battery compartment
to adjust LEFT/RIGHT centering tension. Turn the screws (
4 and 8)
clockwise to increase centering tension.
Stick Length Adjustment
To adjust the length of the stick, hold the bottom half of the knurled grip
and loosen the connection by unscrewing the top half. Lengthen or
shorten the stick by turning it up or down. To tighten, hold the bottom half
of the grip and screw the two halves back together.
To Next Page
