8 / 34 S1006.PRO_mz-24_PRO_EN USA
Neck-Strap Attachment
The Neck-Strap Attachment arm is located on the front of the transmitter
above the power button.

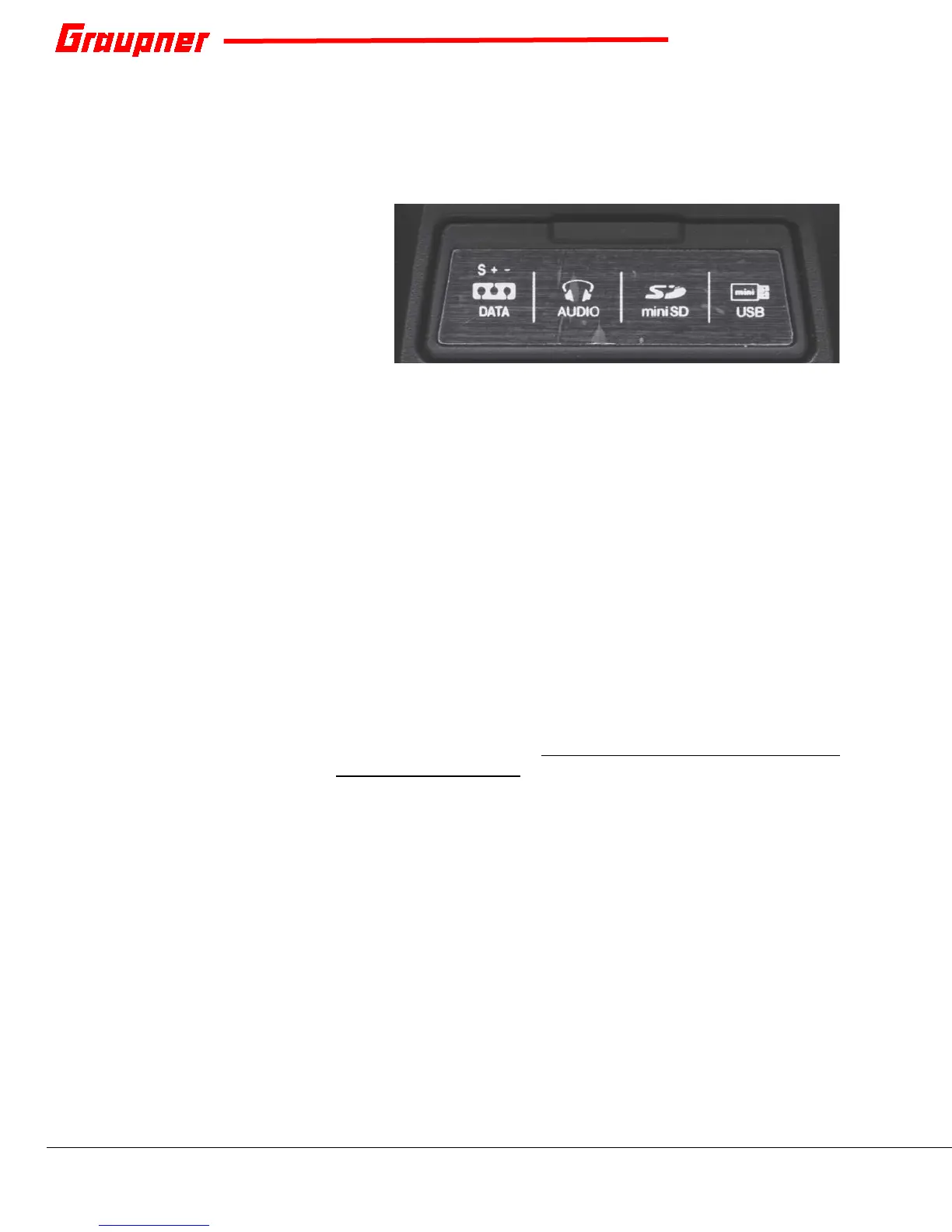

Transmitter Back Side Connections
Data Port
Use the data port to connect the optional Smart Box P/N 33700 or
Bluetooth adapter P/N S8351.
Audio Port
Use the audio port to plug-in ear phones, ear buds or headphones. Both
acoustic signals and voice messages are emitted through this interface.
Control the volume by going to the Etc. Set submenu of the SYSTEM menu
where you can adjust the
Voice Volume and Vario Volume field. Press the
field to highlight and increase/decrease the value by pressing
INC or DEC
buttons to the right. Return the value to its default setting by pressing
RES.
Mini-SD Card Slot
Use the mini-SD card slot for a compatible micro SD memory card: 2 GB
and micro SDHC up to 32 GB. Recommended: standard memory card with
a storage capacity of 4 GB. The included memory card is ready for use as
soon as the transmitter is switched on.
Inserting and removing the memory card step by step:
1. Switch off the transmitter.
2. The memory card slot is located over the battery case under
the back side cover of the transmitter.
3. To insert: Push the SD card as deep into the slot until the
internal spring clicks it into place.
4. To remove: Push the SD card gently. The internal spring will
unlock and pop the card out slightly. It is now safe to remove.
Refer to the Data Recording and Saving section for more information on
using the memory card.
