Mini-USB Connection
Note
The mini-USB port is not suitable for flight simulator connection and will not
charge the radio.
Use the Mini-USB Connection port to connect the transmitter to a PC for
firmware updates. The appropriate software and USB drivers needed to
perform this task can be found on the Downloads page at
www.graupnerusa.com.

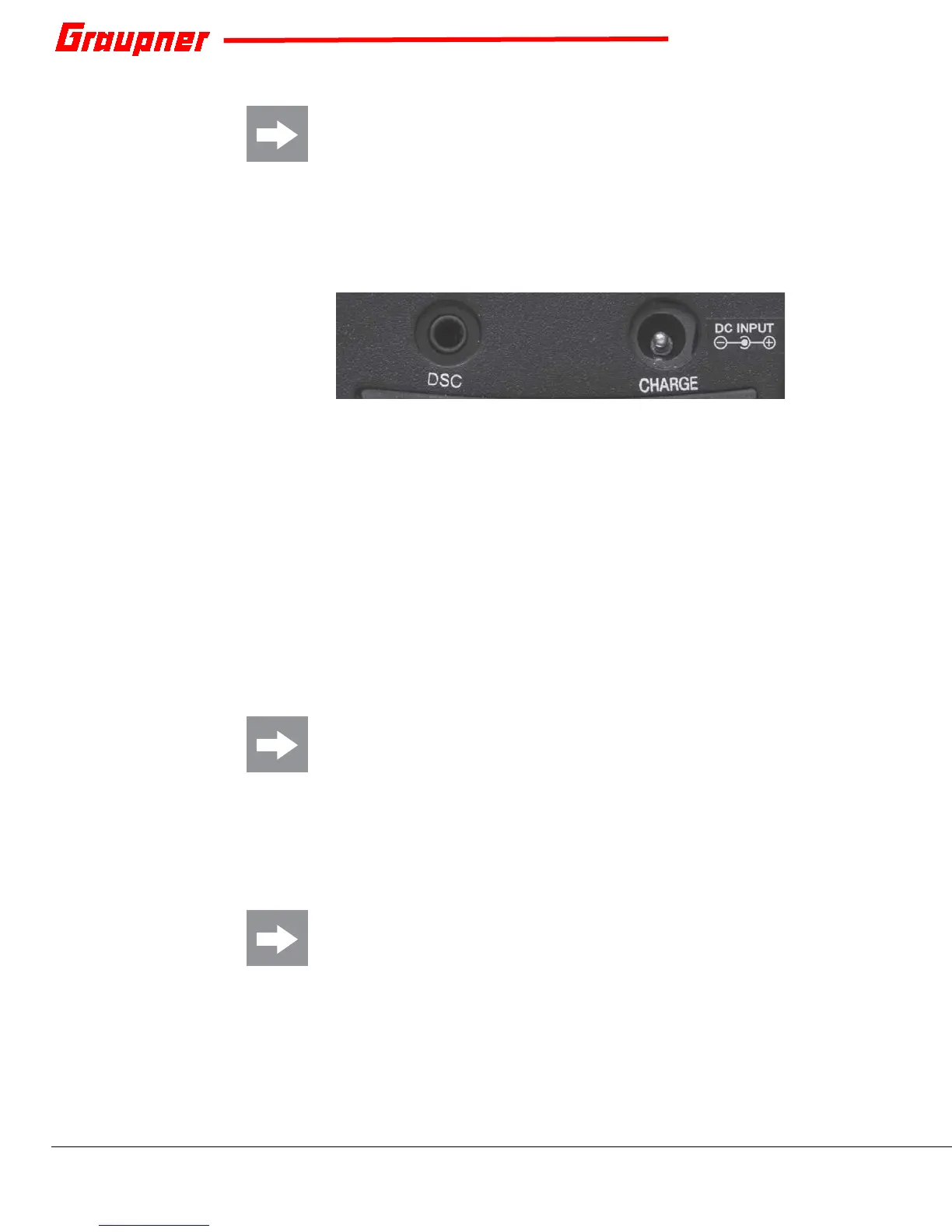

DSC Port
Use the DSC port to connect a DSC cable for flight simulator or wired T/S
(teacher/student) systems.
To enter DSC (Direct Servo Control) Mode or change the base display, go
to the
BASE menu and press the TX ctl icon to bring up the Transmitter
Control submenu. The DSC Output controls are at the bottom of the
screen. Refer to
Programming Manual (Part 2) for additional information
on programming the DSC.
DSC connection step by step:
1. Switch off the transmitter.
2. The DSC port is located beneath the battery case. Insert the
end of the DSC cable into the DSC port.
3. Switch the transmitter on.
ATTENTION!
Electrostatic discharge can destroy the transmitter when connected to a
computer via the DSC cable.
Charging Port
Use the Charging Port to safely charge the transmitter battery using the
supplied plug-in charger. The maximum charge current is 1.5 A. Refer to
the
Charging the Transmitter Battery section for additional information.
Note
USE THE SUPPLIED GRAUPNER PLUG-IN CHARGER ONLY. Serious damage
can occur if the batteries are charged using products made by other
manufacturers.
