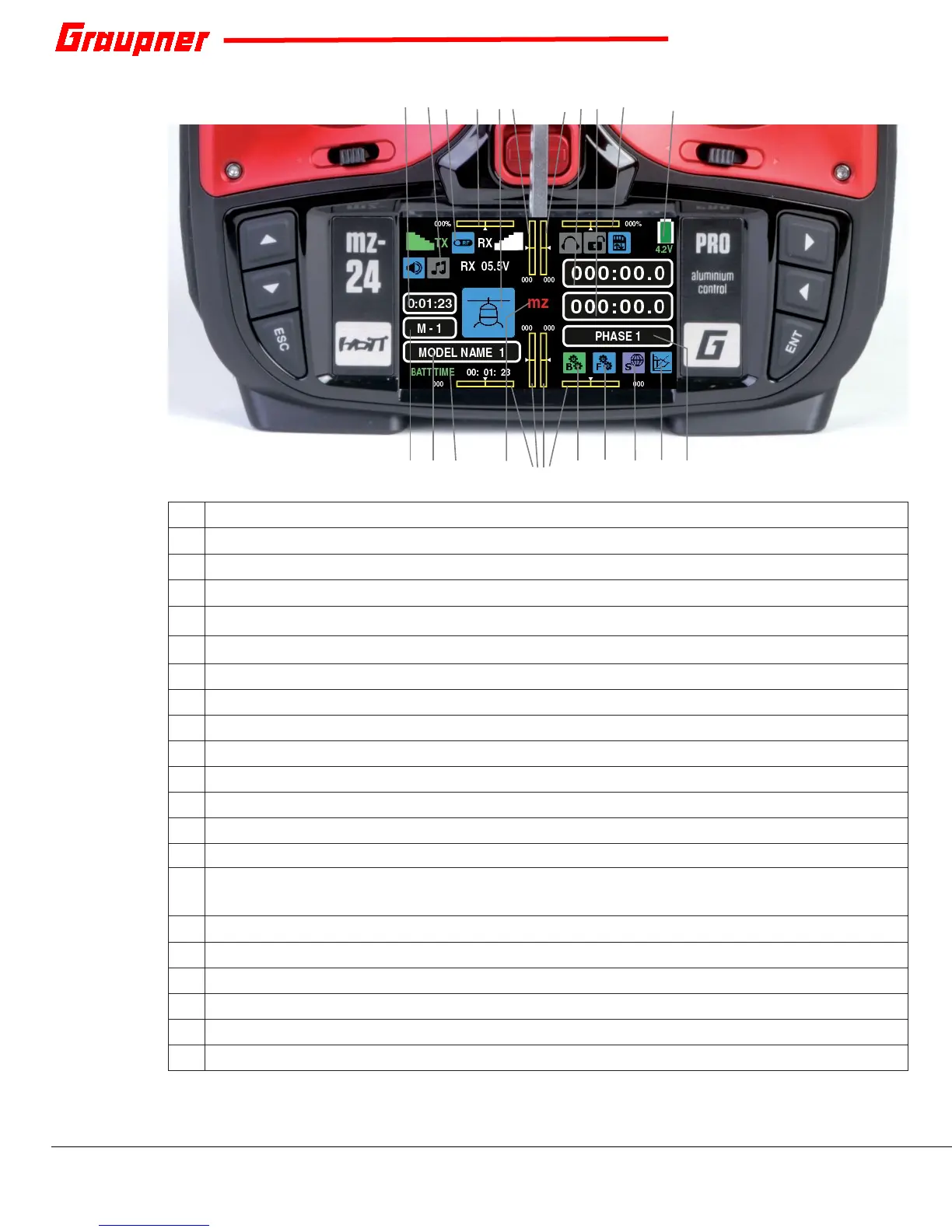

Display Symbols
1
Model operating time
2
MP3 Player icon
3
RF On/Off icon
4
Visual trim indicator for DV 2
5
Model type graphic
6
Visual trim indicator for DV 1
7
Visual trim indicator for DV 2
8
Timer 1
9
Timer 2
10
Visual trim indicator for DV 3
11
Transmitter battery voltage tri-color display
12
Model memory
13
Model name
14
Battery use timer
15
"mz" field. Press to open menu showing: transmitter/receiver battery voltage, ESC current/voltage,
signal strength and signal alarm.
16
Two visual trim indicators for each side
17
BASE menu icon
18
FUNCTION menu icon
19
SYSTEM menu icon
20
TELEMETRY display screen icon
21
Flight phase name
1 2 3 4 5 6 7 8 9 10 11
12 13
14
15 16 17 18 19
20
21
