Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
19
Outdoor unit:
Model:
FLEXX36HP230V1AO
，
FLEXX60HP230V1AO

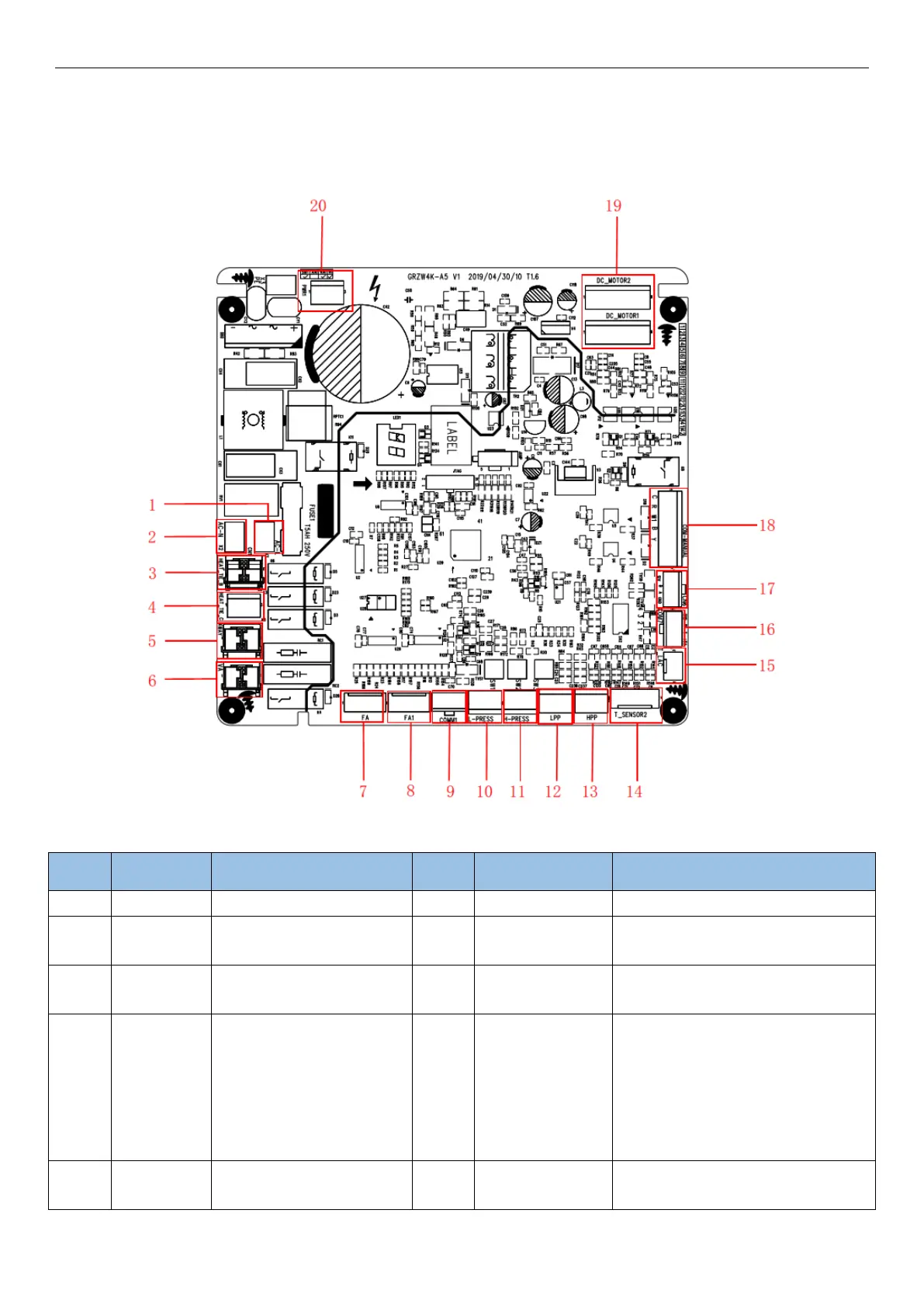

Mainboard
No.
Printing
Interface
No.
Printing
Interface
1
AC-L
Live wire input
11
H-PRESS
High pressure sensor interface
2
AC-N
Neutral wire input
12
LPP
System low pressure protection
interface
3
HEAT_TIE_B
Chassis electric heating belt
13
HPP
System high pressure protection
interface
4
HEAT_TIE_
C
Compressor electric heating
belt
14
T_SENSOR2
2. Outdoor tube temperature sensor
interface
4. Outdoor ambient temperature sensor
interface
6. Discharge temperature sensor
interface
5
4WAY
4-way valve
15
T_LAC
Low temperature cooling temperature
sensing

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
