Gree FLEXX Series

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
22

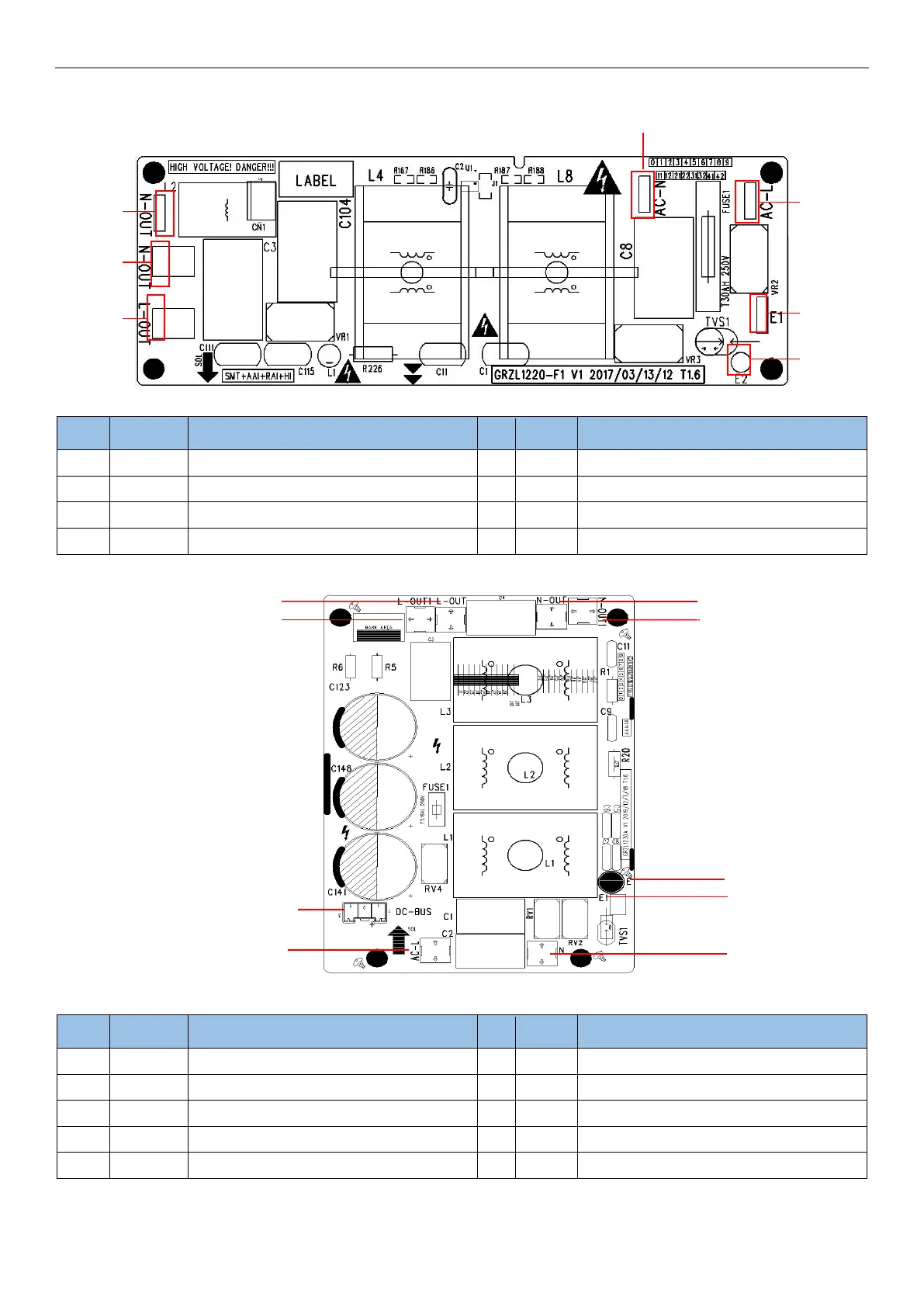

Filtering Board:
Model:
FLEXX36HP230V1AO
No.
Printing
Interface
No.
Printing
Interface
1
AC-L
Power input live wire terminal
5
N-OUT
Power output neutral wire terminal (reserved)
2
AC-N
Power input neutral wire terminal
6
N-OUT
Power output neutral wire terminal
3
E1
Filtering board ground wire terminal
7
L-OUT
Power output live wire terminal
4
E2
Filtering board grounding hole (reserved)
-
-
-
Model:
FLEXX60HP230V1AO
No.
Printing
Interface
No.
Printing
Interface
1
AC-L
Power input live wire terminal
6
N-OUT1
Power output neutral wire terminal (reserved)
2
N
Power input neutral wire terminal
7
N-OUT
Power output neutral wire terminal
3
E
Filtering board ground wire terminal
8
L-OUT1
Power output live wire terminal
4
E1
Filtering board grounding hole (reserved)
9
L-OUT
Power output live wire terminal
5
DC-BUS
Power discharge terminal (for testing)
-
-
-
1
⑩
2
⑩
3
⑩
4
⑩
5
⑩
6
⑩
7
⑩
7
6
3
4
2
1
5
9
8
