Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
80
Removal of condenser
NOTE:Before removing the condenser, make sure there is no refrigerant in the pipeline and power is cut off.
Step
Work instruction

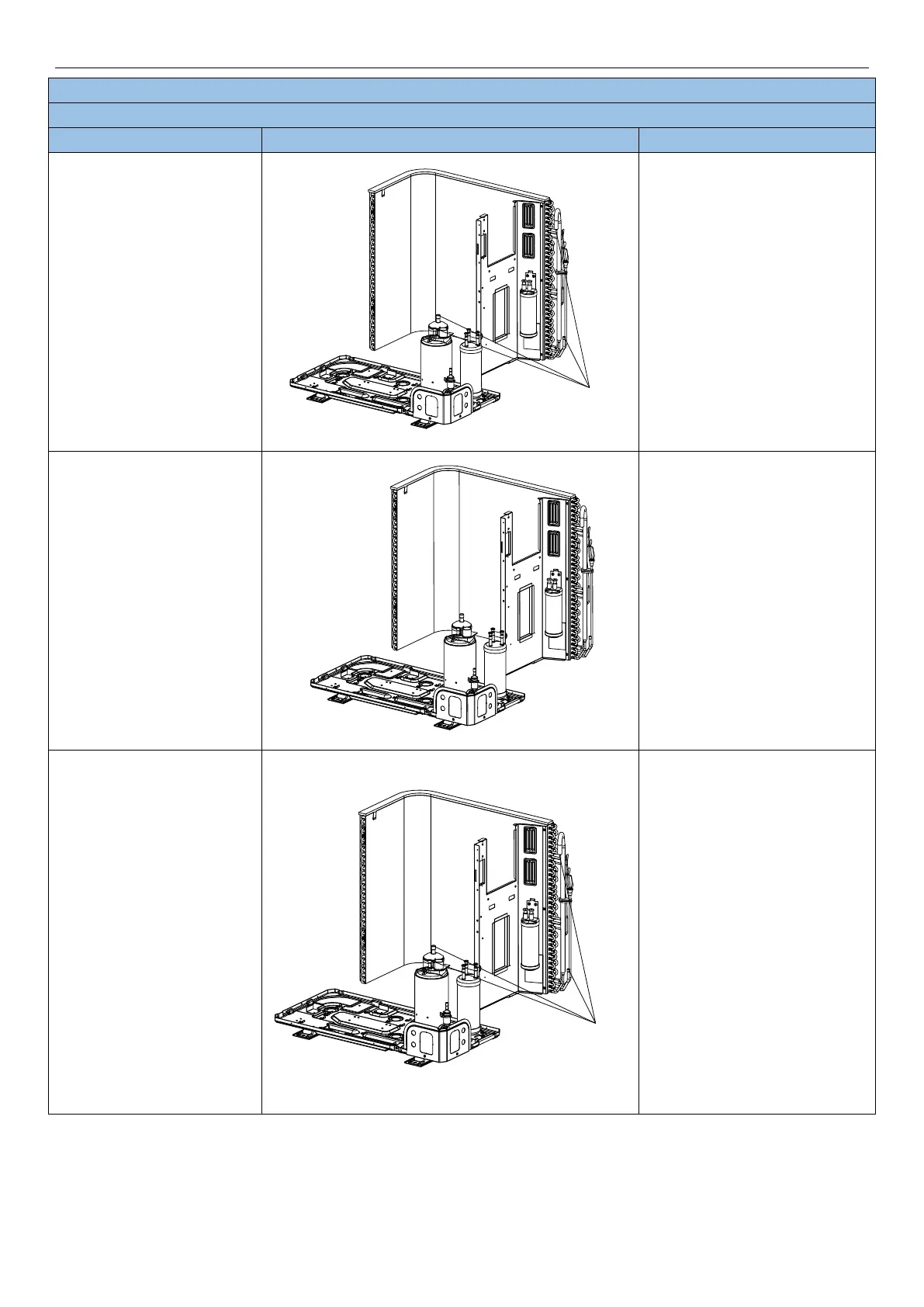

4. Remove the condenser.
Welding interface
 Heat up the welding points of
connection pipes through gas
welding until the pipes break
off.
NOTE: When welding the
pipes, do not let the flame
burn the other components.
The welding points of
condenser are steel and
copper welding points. Be
sure to maintain the welding
quality.
5. Take out the condenser.
 Loosen the securing screws
of condenser support. Take off
the plate type heat exchanger
and the support as a whole.
6. Install the new condenser.
Welding interface
 Secure the screws of
condenser and support. Then
fix them together on the
chassis.
 Install the condenser by
referring to the positions of
entering and leaving pipes.
Weld the connection pipes.
 Nitrogen welding: the
pressure of nitrogen is
0.5±0.1kgf/ cm² (relative
pressure).
NOTE: When welding the
pipes, do not let the flame
burn the other components.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
