Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
88
Model: FLEXX60HP230V1AO
Disassembly of compressor
NOTE:Before removing the compressor, make sure there is no refrigerant in the pipeline and power is cut off.

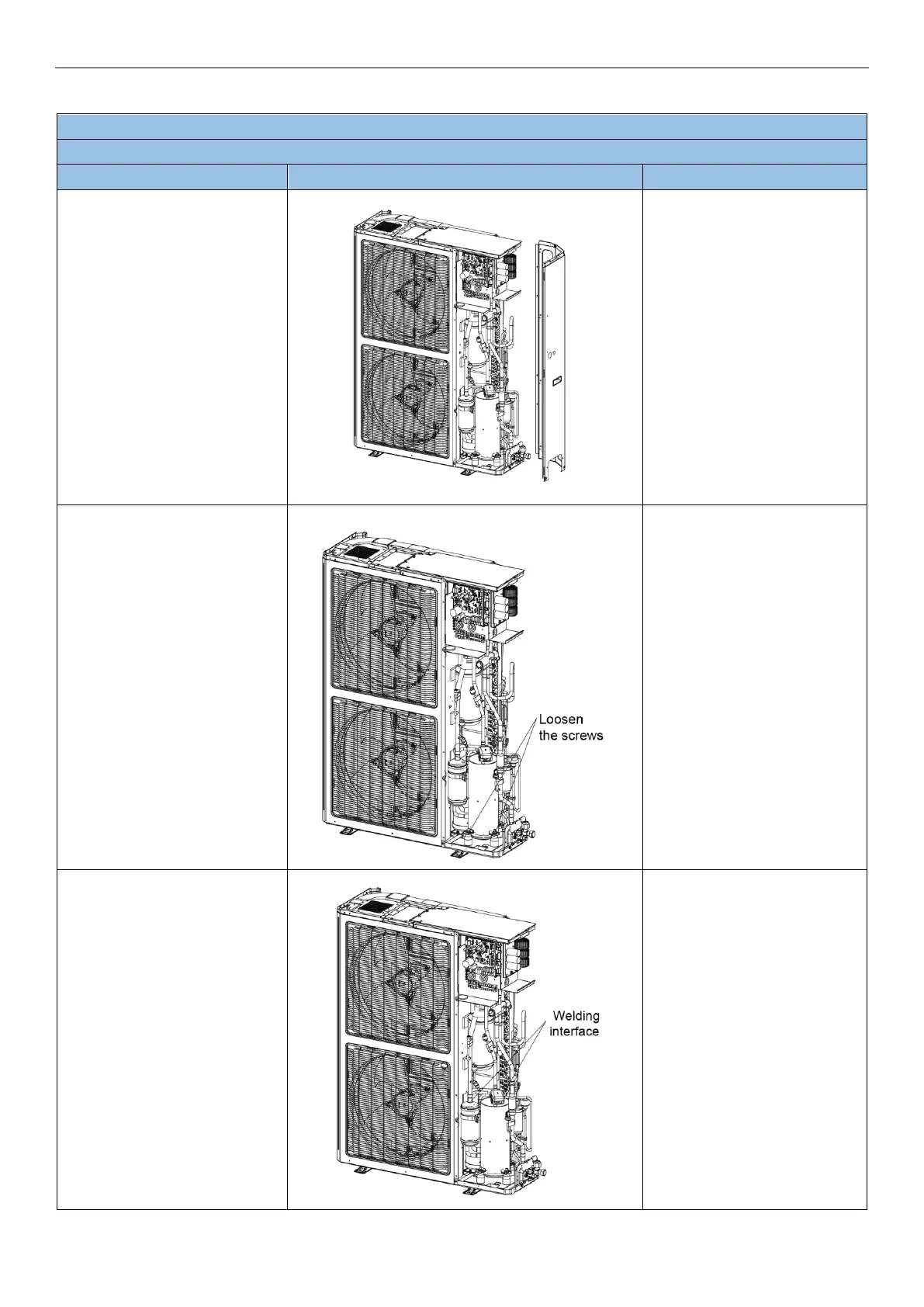

Step
Work instruction
1. Remove wires.
 Loosen the securing screws
of the wires with a
screwdriver.
 Remove the wires.
NOTE:When removing the
wires, mark the wire
terminals corresponding to
their color so as to avoid
misconnection.
2. Loosen the securing screws
at the foot of compressor.
 Use a wrench to twist off the
screw nuts at the foot of
compressor.
3. Break off the pipes that
connecting to the
compressor.
 Weld the pipes that are
connected to the
compressor.
 Then remove the pipes.
NOTE:When welding the
pipes, do not let the flame
burn the other components.
