Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
90
Disassembly of compressor
NOTE:Before removing the compressor, make sure there is no refrigerant in the pipeline and power is cut off.
Step
Work instruction
7. Connect the compressor
wires.
 Connect the compressor
wires to the wire terminals
on the top of compressor.
NOTE: When connecting
the wires, be sure to match
the colors with the
corresponding wire
terminals.
Model: FLEXX60HP230V1AO
Removal of 4-way valve
NOTE:Before removing the 4-way valve, make sure refrigerant is fully discharged from the unit and power is cut off.
Step
Work instruction

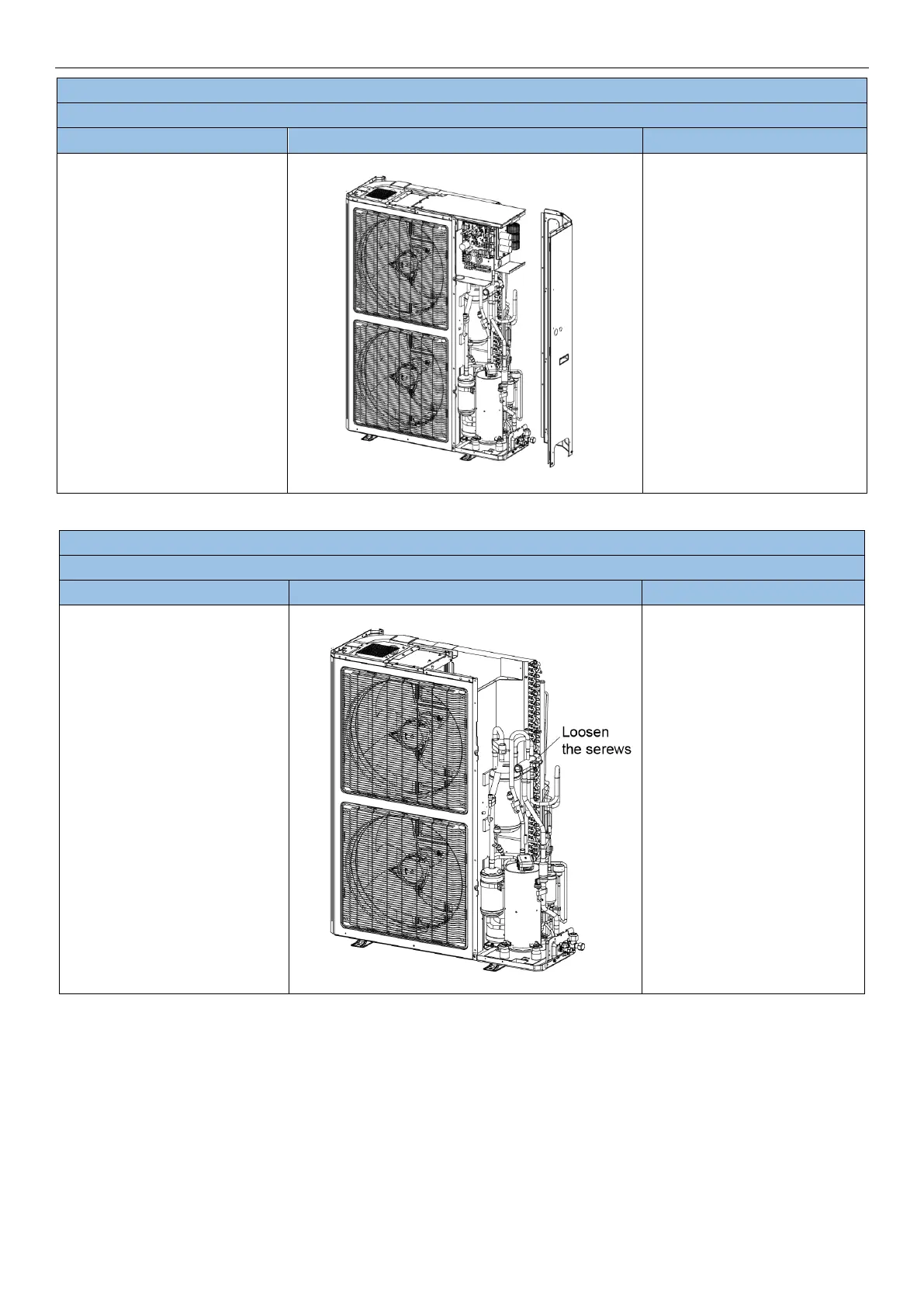

1. Take off the coil of the 4-way
valve.
 Carefully unscrew the
screws of electromagnetic
coil with a screwdriver.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
