Grizzly G0454Z User Manual

-45-
READ ELECTRICAL SAFETY
ON PAGE 43!
Model G0453Z/G0454Z (Mfg. 1/09+)

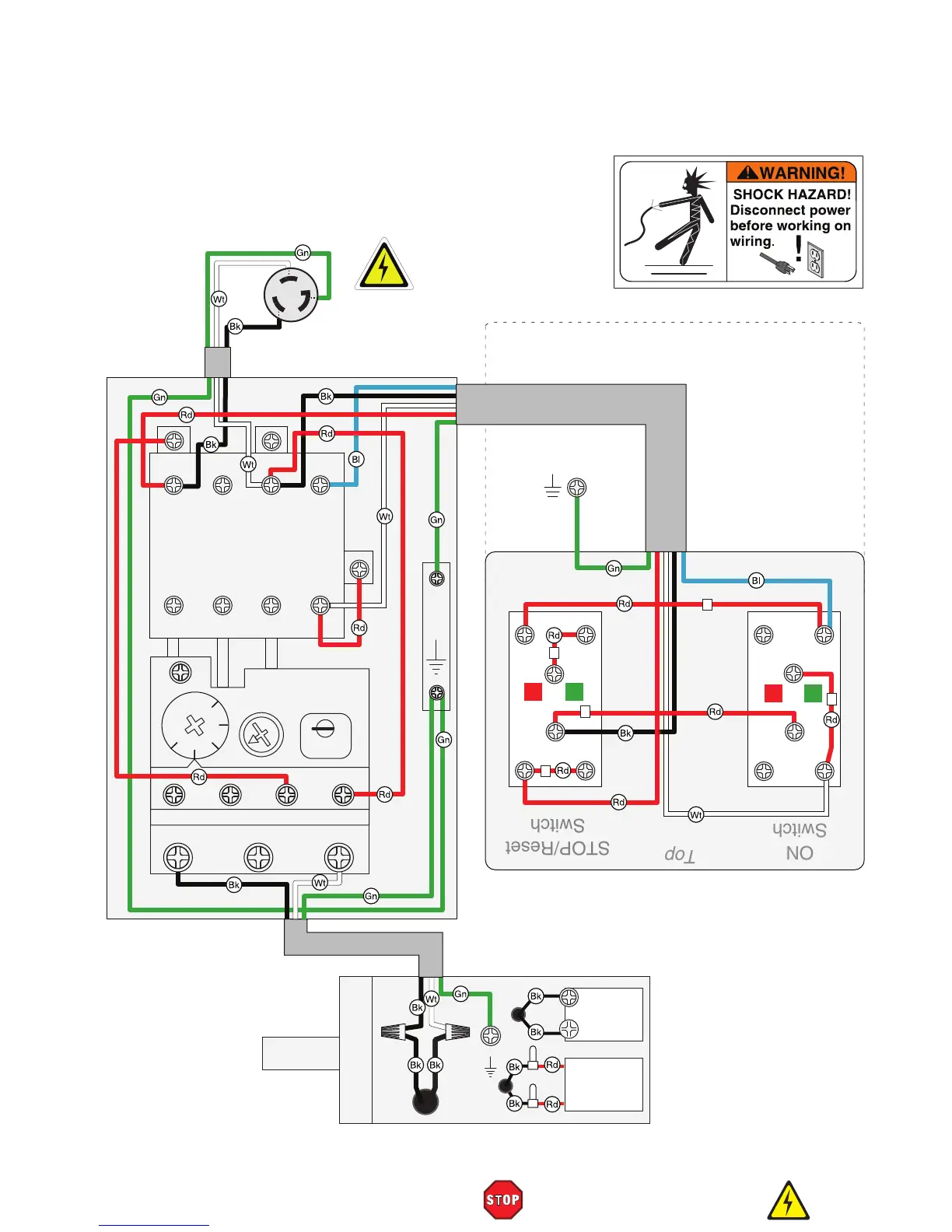

G0454Z Wiring Diagram
CONTROL
PANEL
(from behind)
MAGNETIC
SWITCH
ASSEMBLY
MS1-35D
1L1 3L2 5L3
2T1 4T2 6T3
13no
14no
A2
A1
Ground
Ground
Hot
Hot
L6-30 PLUG
(as recommended)
220 VAC
Contactor
NHD C25-D 220V
OL Relay NHD
NTH-28 24-28A
ON
Switch
Top
STOP/Reset
Switch
2
4
1
3
5
2
4
1
3
5
Ground
Ground
220V
MOTOR
Start
Capacitor
300MFD
300VAC
Run
Capacitor
60MFD
400VAC
2T1 6T34T2
97
MAN AUTO
98
25
26
28
27
24
9596
R
O R
G
X
Y
wiring diagram g0545z

Grizzly G0454Z Specifications

General

Brand	Grizzly
Model	G0454Z
Category	Planer
Language	English
