Grizzly G0454Z User Manual

-58-
Model G0453Z/G0454Z (Mfg. 1/09+)

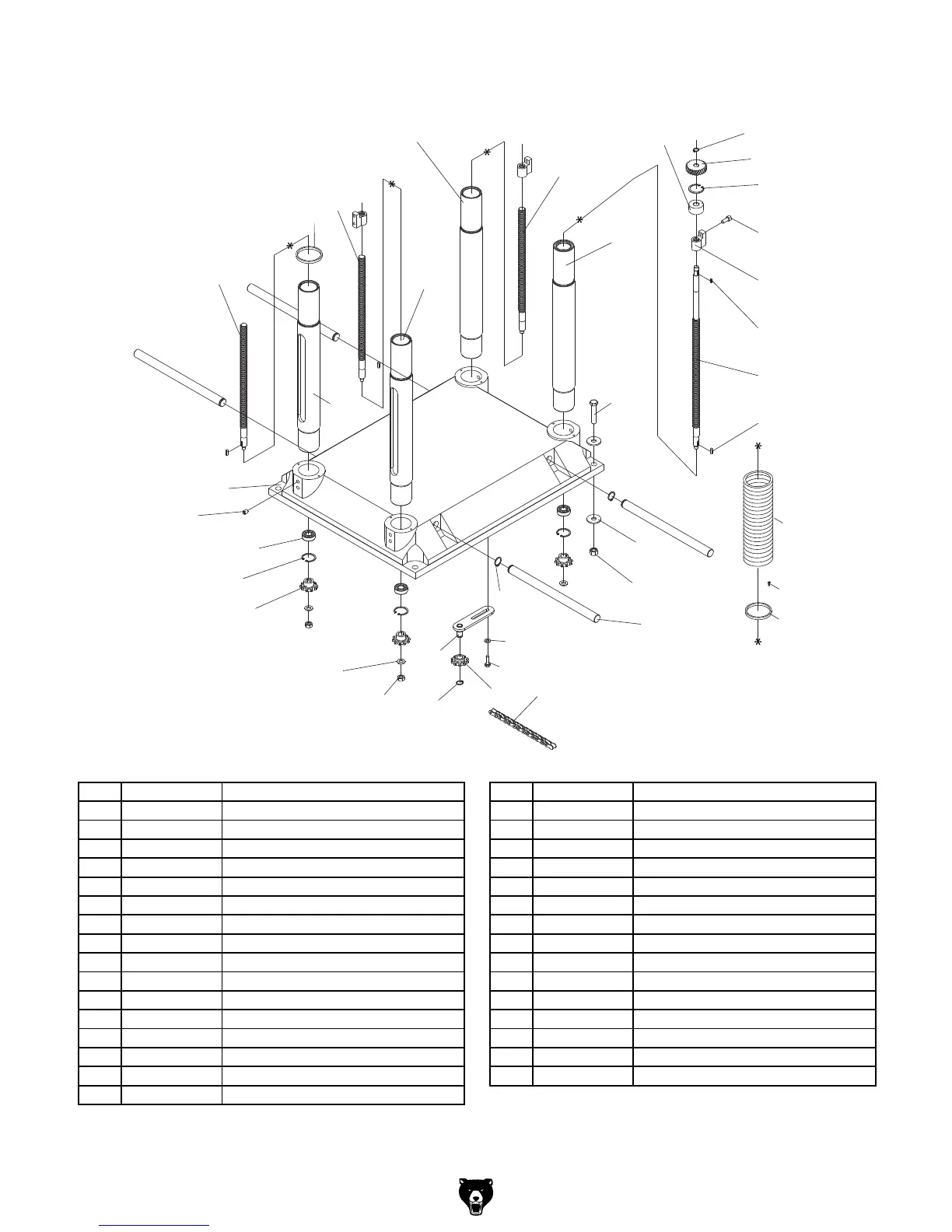

G0454Z Columns
301
302
304
303
305
305
305
306
307
308
309
314
315
310
311
311
311
312
313
317
320
328
327
325
326
323
324
322
321
329
319
316
318
333
330
331
330
332
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0454Z301 BASE 318 P0454Z318 EXT RETAINING RING 12MM
302 P0454Z302 HEX BOLT M12-1.75 X 60 319 P0454Z319 TABLE LIFTING SPROCKET
303 P0454Z303 HEX NUT M12-1.75 320 P0454Z320 KEY 5 X 5 X 16
304 P0454Z304 FLAT WASHER 12MM 321 P0454Z321 FLAT WASHER 10MM
305 P0454Z305 COLUMN A 322 P0454Z322 HEX NUT M10-1.5
306 P0454Z306 BALL BEARING 6202ZZ 323 P0454Z323 IDLER BRACKET ASSY
307 P0454Z307 INT RETAINING RING 35MM 324 P0454Z324 EXT RETAINING RING 15MM
308 P0454Z308 COLUMN B 325 P0454Z325 HEX BOLT M8-1.25 X 25
309 P0454Z309 INT RETAINING RING 38MM 326 P0454Z326 IDLER SPROCKET
310 P0454Z310 SET SCREW M10-1.5 X 12 327 P0454Z327 FLAT WASHER 8MM
311 P0454Z311 LEADSCREW A 328 P0454Z328 LIFTING POST
312 P0454Z312 LEADSCREW B 329 P0454Z329 EXT RETAINING RING 21MM
313 P0454Z313 LEAD NUT 330 P0454Z330 DUST BOOT SEAL
314 P0454Z314 CAP SCREW M8-1.25 X 20 331 P0454Z331 PHLP HD SCR M5-.8 X 10
315 P0454Z315 LEADSCREW BUSHING 332 P0454Z332 DUST BOOT
316 P0454Z316 COLUMN GEAR 333 P0454Z333 CHAIN 08A-1 X 66
317 P0454Z317 KEY 4 X 4 X 12
