Grizzly G0454Z User Manual

-50-
Model G0453Z/G0454Z (Mfg. 1/09+)

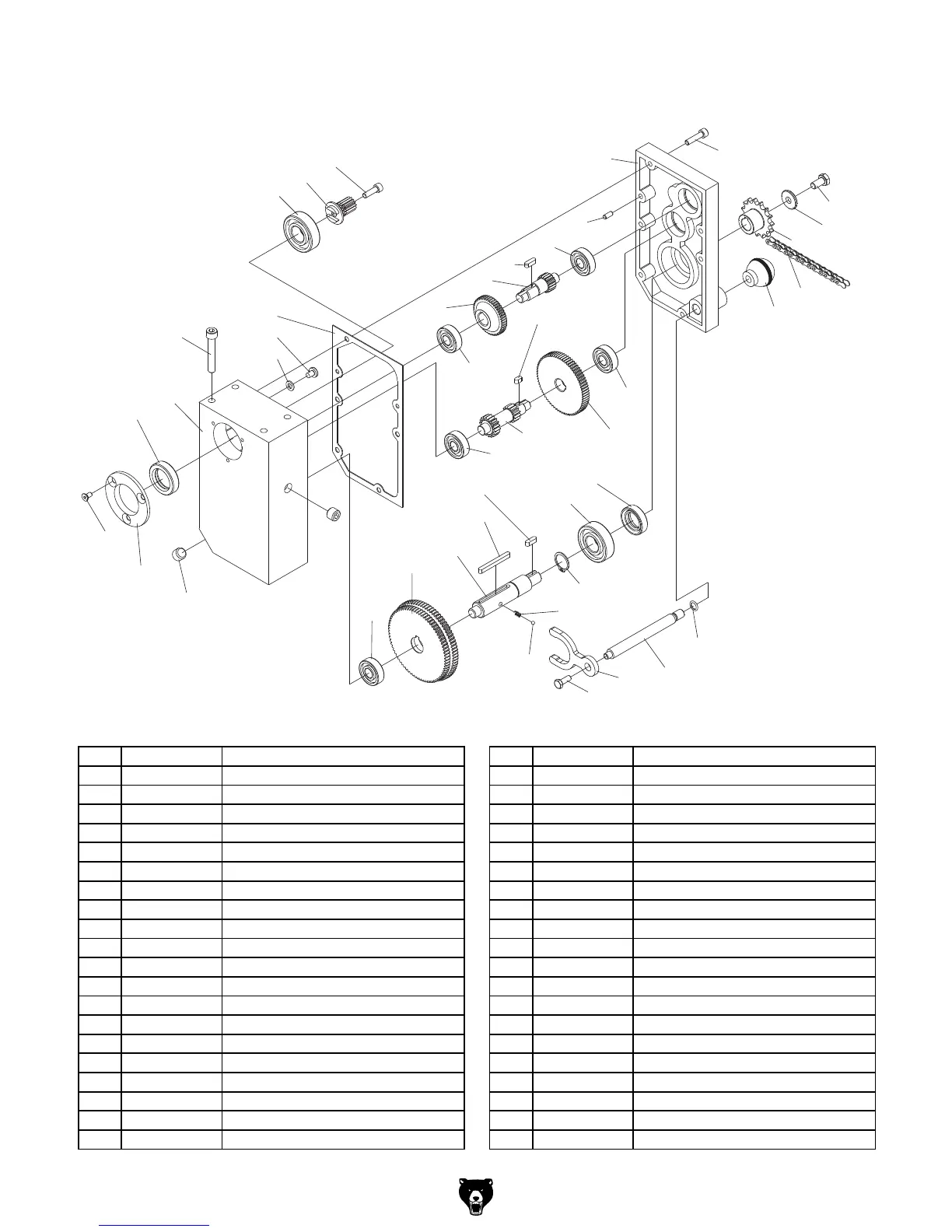

G0453Z Gearbox
401
402
403
404
405
406
407
408
409
411
410
414
409
415
426
412
413
413
416
417
425
420
418
419
421
422
423
424
427
428
429
430
431
432
433
434
435
438
436
437
439
440
441
442
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0453Z401 GEARBOX COVER 422 P0453Z422 FLAT WASHER 6MM
402 P0453Z402 HEX BOLT M6-1 X 25 423 P0453Z423 COMPRESSION SPRING
403 P0453Z403 COLUMN SPROCKET 424 P0453Z424 STEEL BALL 4MM
404 P0453Z404 FLAT WASHER 8MM 425 P0453Z425 GEAR C
405 P0453Z405 HEX BOLT M8-1.25 X 16 426 P0453Z426 KEY 5 X 5 X 50
406 P0453Z406 CHAIN 06B-1 X 51 427 P0453Z427 GASKET
407 P0453Z407 FEMALE KNOB M8-1.25 428 P0453Z428 GEARBOX
408 P0453Z408 GEAR SHAFT A 429 P0453Z429 HEX BOLT M8-1.25 X 50
409 P0453Z409 BALL BEARING 6201ZZ 430 P0453Z430 OIL PLUG
410 P0453Z410 GEAR A 431 P0453Z431 FLANGE COVER
411 P0453Z411 KEY 5 X 5 X 14 432 P0453Z432 CAP SCREW M5-.8 X 12
412 P0453Z412 SHAFT B 433 P0453Z433 OIL SEAL 25 X 40 X 10
413 P0453Z413 BALL BEARING 6201ZZ 434 P0453Z434 PIN 5 X 10
414 P0453Z414 GEAR B 435 P0453Z435 SHIFT FORK
415 P0453Z415 KEY 5 X 5 X 10 436 P0453Z436 HANDLE SHAFT
416 P0453Z416 OIL SEAL 25 X 32 X 7 437 P0453Z437 O-RING 10.8 X 2.4 P11
417 P0453Z417 SHAFT C 438 P0453Z438 FLANGE BOLT M6-1 X 12
418 P0453Z418 BALL BEARING 6204ZZ 439 P0453Z439 KEY 5 X 5 X 16
419 P0453Z419 EXT RETAINING RING 20MM 440 P0453Z440 BALL BEARING 6204ZZ
420 P0453Z420 BALL BEARING 6201ZZ 441 P0453Z441 GEAR D
421 P0453Z421 PHLP HD SCR M6-1 X 8 442 P0453Z442 SET SCREW M6-1 X 20
