Grizzly G0454Z User Manual

-59-
Model G0453Z/G0454Z (Mfg. 1/09+)

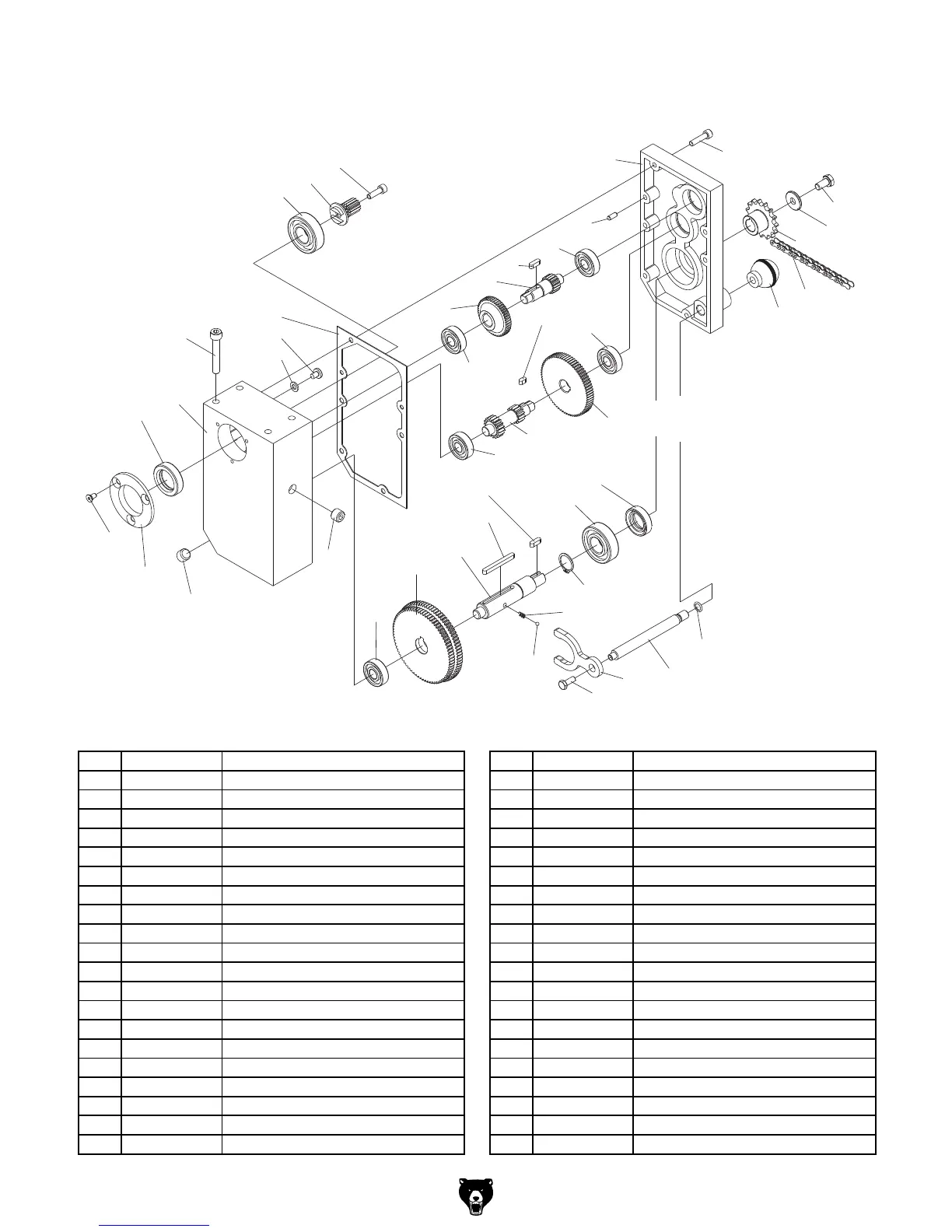

G0454Z Gearbox
401
402
403
404
405
406
407
408
411
410
414
409
409
415
426
412
413
413
416
417
425
420
418
419
421
422
423
424
427
428
429
430
430
431
432
433
434
435
438
436
437
439
440
441
442
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0454Z401 CHAIN DRIVE COVER 422 P0454Z422 FLAT WASHER 6MM
402 P0454Z402 CAP SCREW M6-1 X 25 423 P0454Z423 COMPRESSION SPRING
403 P0454Z403 GEARBOX SPROCKET 424 P0454Z424 STEEL BALL 4MM
404 P0454Z404 FLAT WASHER 8MM 425 P0454Z425 GEAR C
405 P0454Z405 HEX BOLT M8-1.25 X 16 426 P0454Z426 KEY 5 X 5 X 50
406 P0454Z406 CHAIN 06B-1 X 51 427 P0454Z427 GEARBOX COVER GASKET
407 P0454Z407 BALL KNOB M10-1.5 428 P0454Z428 GEARBOX
408 P0454Z408 GEAR SHAFT A 429 P0454Z429 CAP SCREW M8-1.25 X 50
409 P0454Z409 BALL BEARING 6201ZZ 430 P0454Z430 OIL PLUG
410 P0454Z410 GEAR A 431 P0454Z431 FLANGE COVER
411 P0454Z411 KEY 5 X 5 X 14 432 P0454Z432 CAP SCREW M5-.8 X 12
412 P0454Z412 SHAFT B 433 P0454Z433 OIL SEAL 25 X 40 X 10
413 P0454Z413 BALL BEARING 6201ZZ 434 P0454Z434 PIN 5 X 10
414 P0454Z414 GEAR B 435 P0454Z435 SHIFT FORK
415 P0454Z415 KEY 5 X 5 X 10 436 P0454Z436 HANDLE SHAFT
416 P0454Z416 OIL SEAL 25 X 32 X 7 437 P0454Z437 O-RING 10.8 X 2.4 P11
417 P0454Z417 SHAFT C 438 P0454Z438 FLANGE BOLT M6-1 X 12
418 P0454Z418 BALL BEARING 6204ZZ 439 P0454Z439 KEY 5 X 5 X 16
419 P0454Z419 EXT RETAINING RING 20MM 440 P0454Z440 BALL BEARING 6204ZZ
420 P0454Z420 BALL BEARING 6201ZZ 441 P0454Z441 GEAR D
421 P0454Z421 PHLP HD SCR M6-1 X 8 442 P0454Z442 SET SCREW M6-1 X 20
