Grizzly G0454Z User Manual

-49-
Model G0453Z/G0454Z (Mfg. 1/09+)

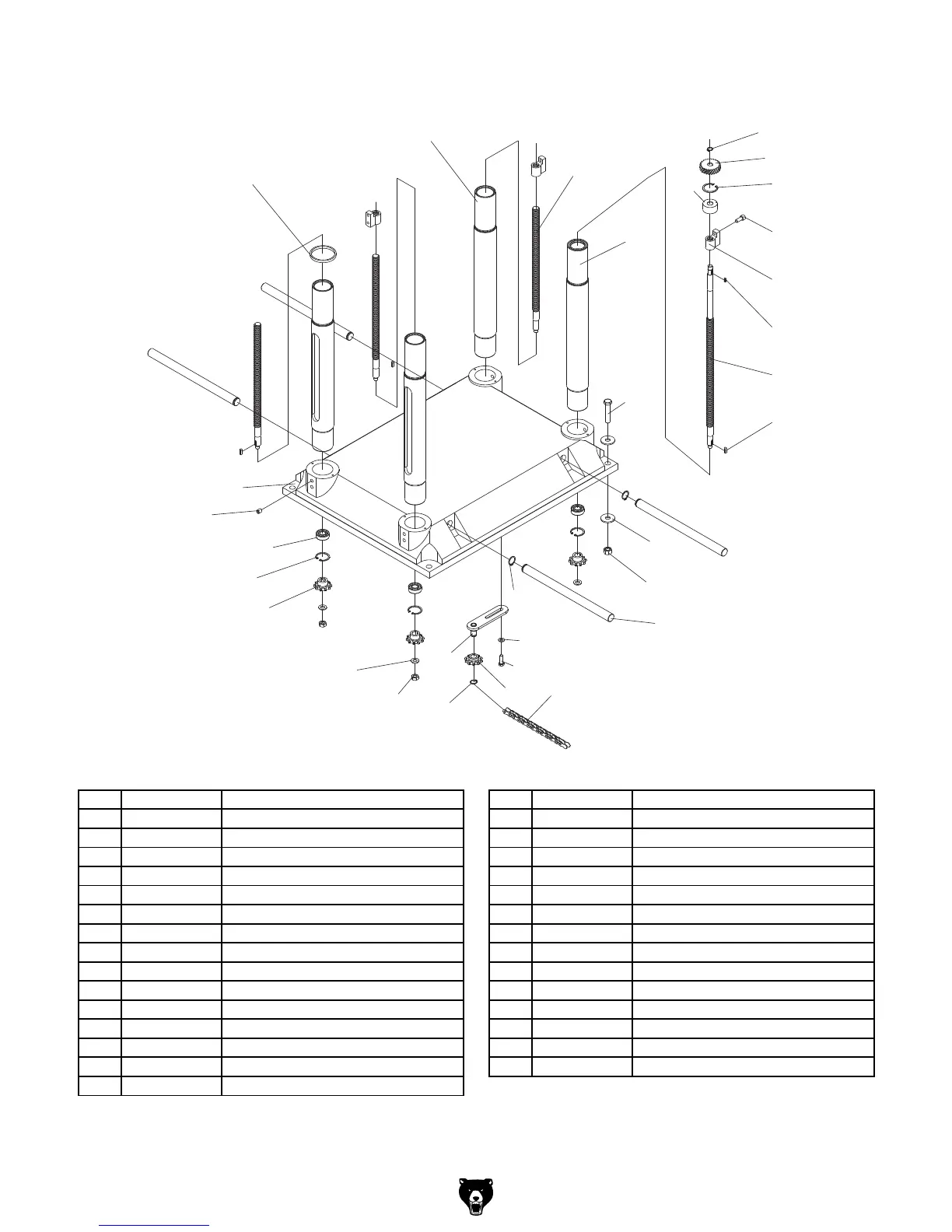

G0453Z Columns
301
302
304
303
305
306
307
308
309
314
310
311
312
313
317
320
328
327
325
326
323
324
322
321
329
319
316
315
318
330
331
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0453Z301 BASE 317 P0453Z317 KEY 4 X 4 X 12
302 P0453Z302 HEX BOLT M12-1.75 X 45 318 P0453Z318 EXT RETAINING RING 12MM
303 P0453Z303 HEX NUT M12-1.75 319 P0453Z319 SPROCKET
304 P0453Z304 FLAT WASHER 12MM 320 P0453Z320 KEY 5 X 5 X 16
305 P0453Z305 COLUMN A 321 P0453Z321 FLAT WASHER 10MM
306 P0453Z306 BALL BEARING 6302Z 322 P0453Z322 HEX NUT M10-1.5
307 P0453Z307 INT RETAINING RING 42MM 323 P0453Z323 BRACKET
308 P0453Z308 COLUMN B 324 P0453Z324 EXT RETAINING RING 15MM
309 P0453Z309 INT RETAINING RING 40MM 325 P0453Z325 HEX BOLT M8-1.25 X 20
310 P0453Z310 SET SCREW M10-1.5 X 12 326 P0453Z326 IDLER SPROCKET
311 P0453Z311 LEADSCREW A 327 P0453Z327 FLAT WASHER 8MM
312 P0453Z312 LEADSCREW B 328 P0453Z328 LIFTING BAR
313 P0453Z313 LEAD NUT 329 P0453Z329 EXT RETAINING RING 15MM
314 P0453Z314 CAP SCREW M6-1 X 20 330 P0453Z330 CHAIN 12.7A X 134
315 P0453Z315 BUSHING 331 P0453Z331 COLUMN SEAL
316 P0453Z316 GEAR
