Model G0458Z (Mfd. Since 7/19)
Inventory

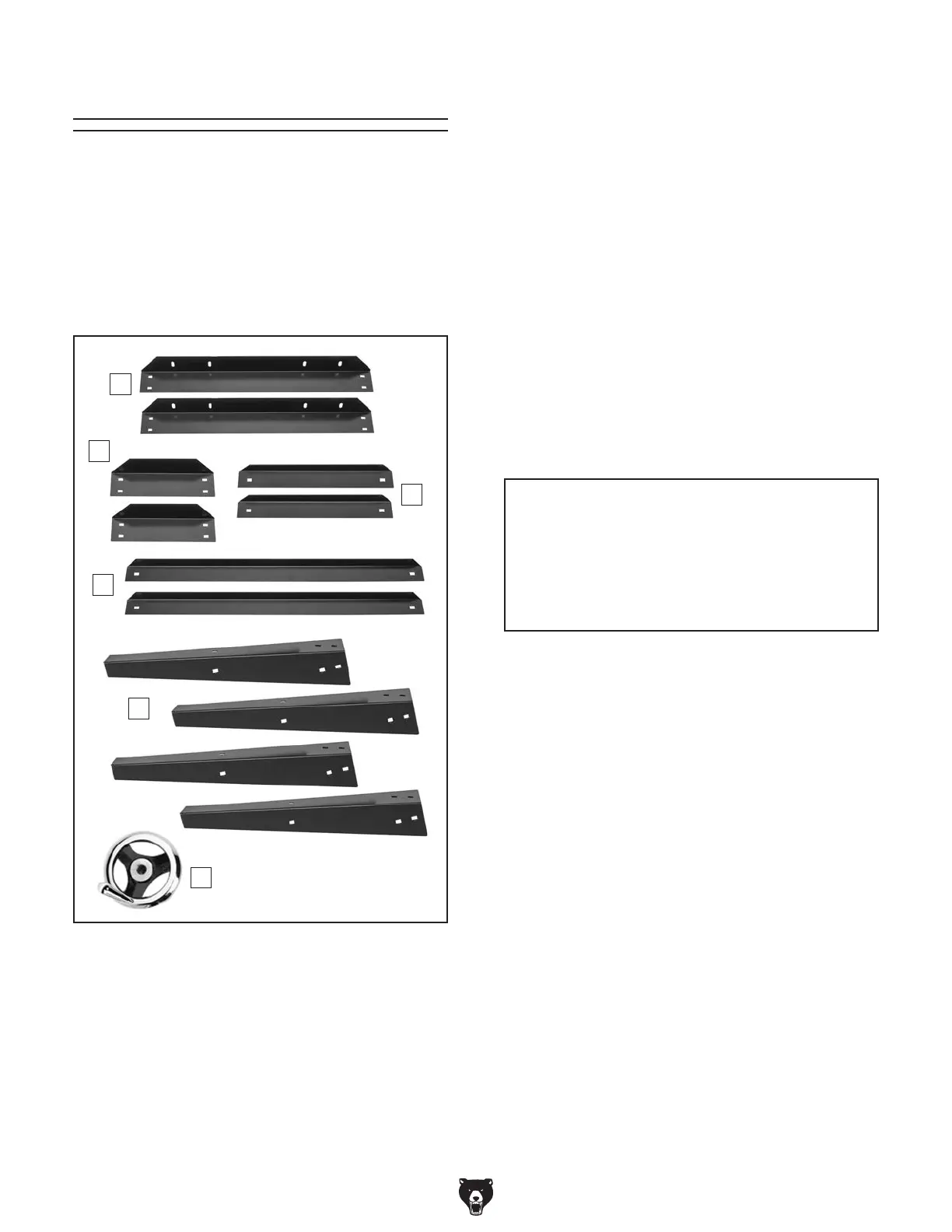

Figure 2. Box contents.
B
C
D
E
F
Box 1 (Figure 2) Qty
A. Drum Sander (Not Shown) ......................... 1
B.
Top Long Brackets ..................................... 2
C.
Top Short Brackets ..................................... 2
D.
Bottom Short Brackets ............................... 2
E.
Bottom Long Brackets ................................ 2
F.
Stand Legs ................................................. 4
G.
Handwheel ................................................. 1
H.
Hardware and Tools (Not Shown)
— Handwheel w/Handle ............................ 1
— Hex Bolts M8-1.25 x 20.......................... 4
— Hex Nuts M8-1.25 .................................. 4
— Flat Washers 8mm ................................ 8
— Carriage Bolts M8-1.25 x 15 ................ 24
— Flange Nuts M8-1.25 ........................... 24
— Combination Wrench 8/12mm ............... 1
— Hex Wrenches 4, 5, 6mm ................1 Ea.
— Flat Washer 5mm .................................. 1
— Cap Screw M6-1 x 35 ............................ 1
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
