-36-
Model G0458Z (Mfd. Since 7/19)

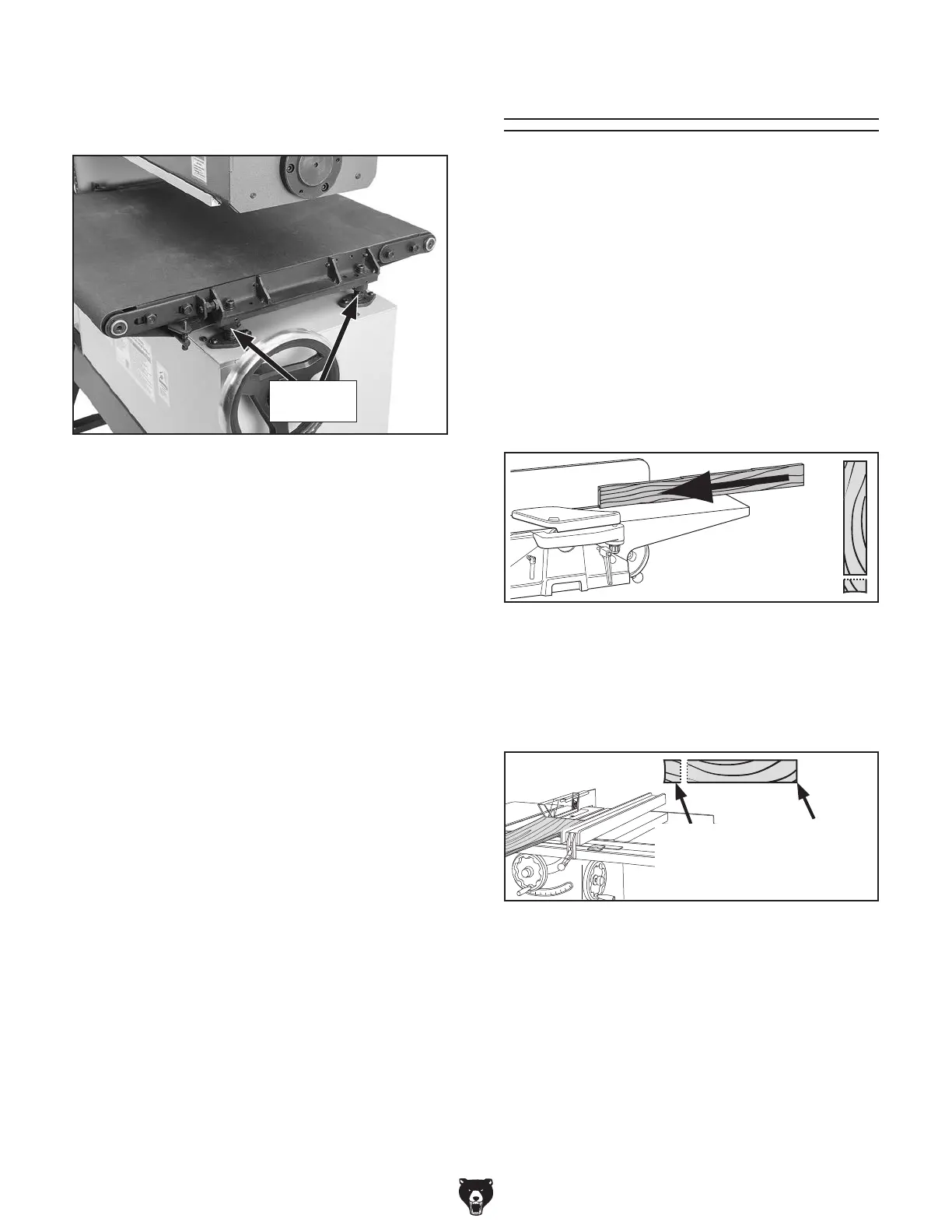

Figure 42. Feed belt table outside cap screws.
5.
Have an assistant lift outside edge of the
table, then slide conveyor belt off.
6. Clean any dirt or dust off of table and rollers,
have an assistant lift the table, then slide the
new conveyor belt on.
7.
Re-install and tighten all of the table cap
screws.
8.
Tighten conveyor belt adjustment bolts
equally, then follow tensioning instructions
on Page 34.
Note: The conveyor belt will stretch slightly
when new and will need to be re-tensioned
after a short amount of use.
9.
Track new conveyor belt according to instruc-
tions on Page 33.
Note: One side of the belt may need to be
tighter than the other for the belt to track
straight.
Table Cap
Screws
4. Remove outside table cap screws shown in
Figure 42 and loosen corresponding cap
screws on inside edge.
The blocks described here will be required to
complete the remaining service procedures in this
section.
Items Needed Qty
6' Long 2x4 .........................................................1
Miter Saw (or Circular Saw)
................................1
Jointer
.................................................................1
Table Saw
...........................................................1
To make blocks:
1.
Edge joint concave edge of 2x4 flat on a
jointer, as shown in Figure 43.
Making Blocks
Figure 43. Edge jointing on a jointer.
2.
Place jointed edge of the 2x4 against the
table saw fence and rip cut just enough off
the opposite side to square up the two edges
of the 2x4, as shown in Figure 44.
3.
Cut 2x4 into two even pieces to make two 36"
long wood gauge blocks.
Note: Steps 1-2 can be skipped, but having
the gauge blocks at an equal height is critical
to the accuracy of your adjustments.
Figure 44. Rip cutting on a table saw.
15
30
45
Previously
Jointed
Edge
Opposite
Edge Rip
Cut with
Table Saw
To Next Page
