Model G0458Z (Mfd. Since 7/19)
-17-
Dust Collection

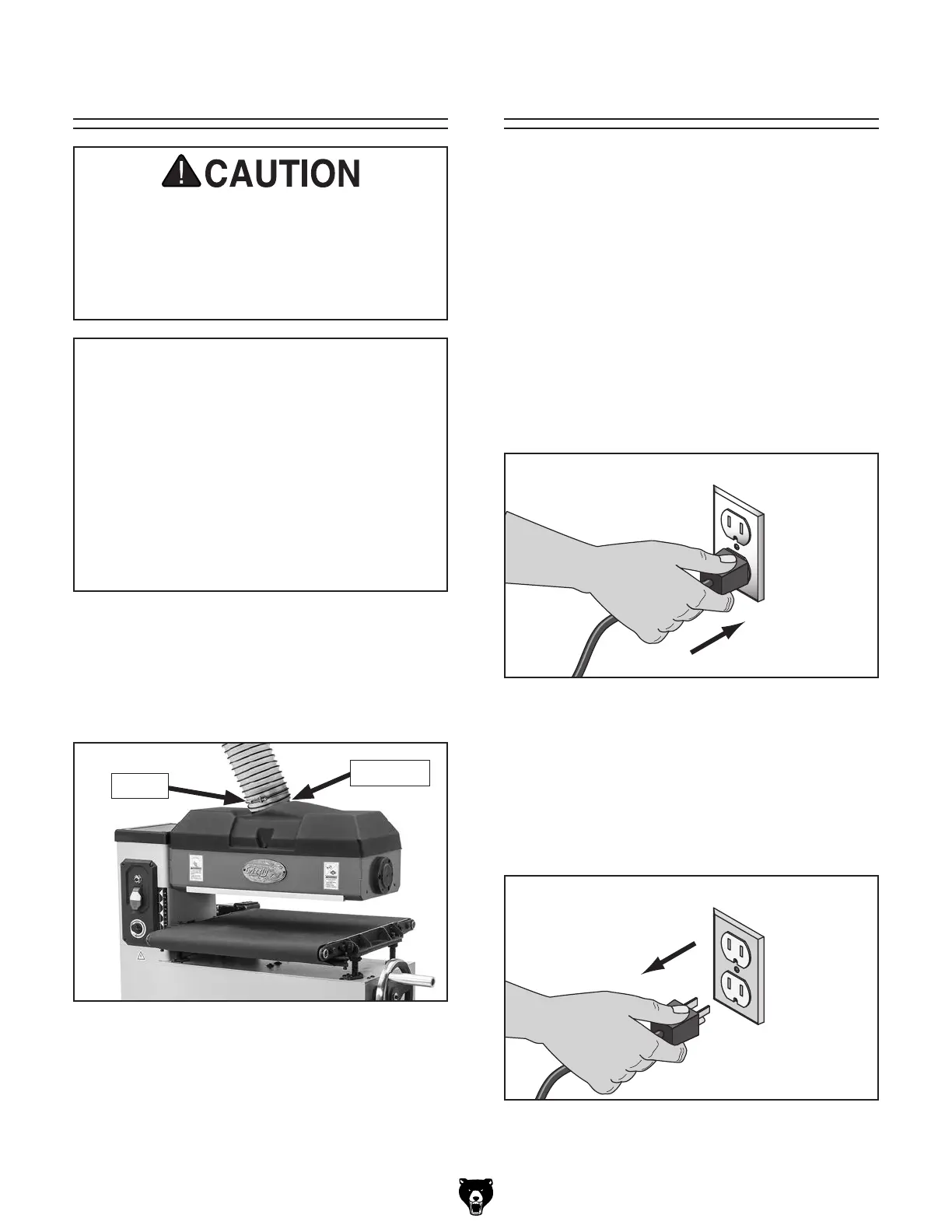

Figure 13. Dust hose and clamp installed.
Clamp
Dust Port
Minimum CFM at Dust Port: 400 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col-
lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal-
culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma-
nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.
To connect dust collection system to machine:
1. Fit 4" dust hose over dust port, as shown in
Figure 13, and secure in place with a hose
clamp.
Power Connection
After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.
To avoid unexpected startups or property dam-
age, use the following steps whenever connect-
ing or disconnecting the machine from the power
supply.
Connecting Power
Figure 14. Connecting power.
1. Turn the machine power switch OFF.
2.
Insert the power cord plug into a matching
power supply receptacle. The machine is
now connected to the power source.
Disconnecting Power
Figure 15. Disconnecting power.
1. Turn the machine power switch OFF.
2.
Grasp the molded plug and pull it completely
out of the receptacle. DO NOT pull by the
cord as this may damage the wires inside.
2. Tug the hose to make sure it does not come
off.
Note: A tight fit is necessary for proper per-
formance.
