Model G0458Z (Mfd. Since 7/19)
-3-

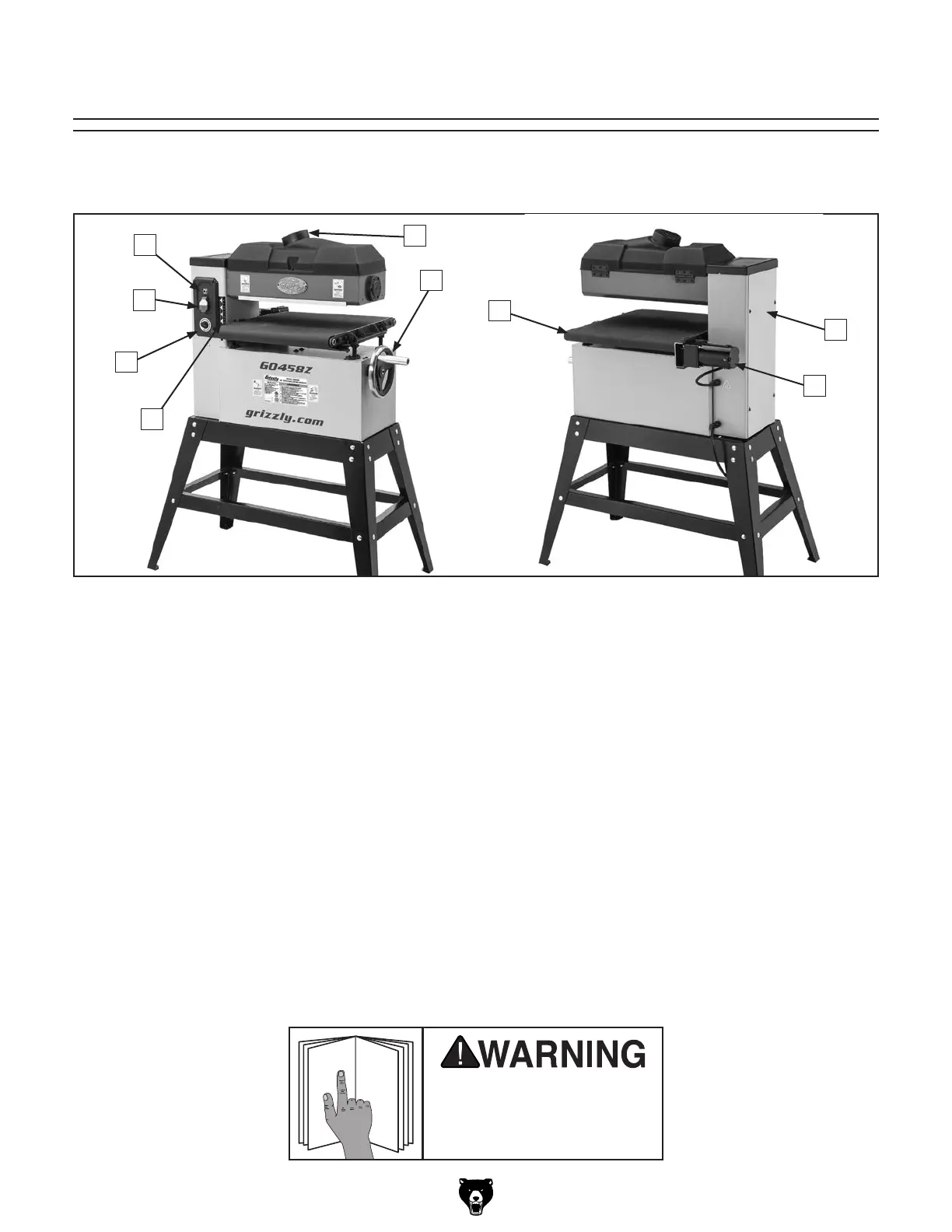

Identification
A. Circuit Breaker: Trips during excessive
sanding operation when workload overloads
circuit. Press button to reset breaker.
B. ON/OFF Paddle Switch w/Disabling Key:
Turns motor ON and OFF. Remove yellow
key to disable switch.
C. Conveyor Feed Rate Dial: Rotate dial
clockwise to decrease conveyor belt feed
rate or counterclockwise to increase feed
rate. Conveyor feed rate ranges from 0–12
FPM.
D. Table Height Indicator: Displays
approximate distance between sanding drum
and conveyor belt.
E. Dust Port: Connects sander to 4" dust
collection system.
F. Table Elevation Handwheel: Raises
and lowers conveyor table (G). Rotate
counterclockwise to lower table; rotate
clockwise to raise table. One full rotation
moves the table approximately 0.060" (
1
⁄16").
G. Conveyor Table w/Belt: Feeds workpiece
across conveyor table during sanding
operations.
H. Belt Access Panel: Remove panel to
change sanding belt pulley positions or
make belt adjustments.
I. Conveyor Belt Motor: Controls feed rate of
conveyor belt. Use Conveyor Feed Rate Dial
(C) to adjust feed rate.
C
A
D
F
E
H
B
G
I
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
