-34-
Model G0458Z (Mfd. Since 7/19)
2. Loosen lock nut (see Figure 39) on side that
conveyor belt tracks towards and tension
tracking adjustment screw until conveyor belt
tracks in opposite direction.
Note: Small tracking changes may take up to
three minutes before they are noticeable.
3.
When conveyor belt is near the middle of the
rollers or table, loosen tracking adjustment
screw until feed belt stops moving and tracks
straight.
—If conveyor belt tracks too far to the other
side, loosen tracking adjustment screw as
necessary to bring it back. Repeat Steps 2
& 3 until tracking is correct.

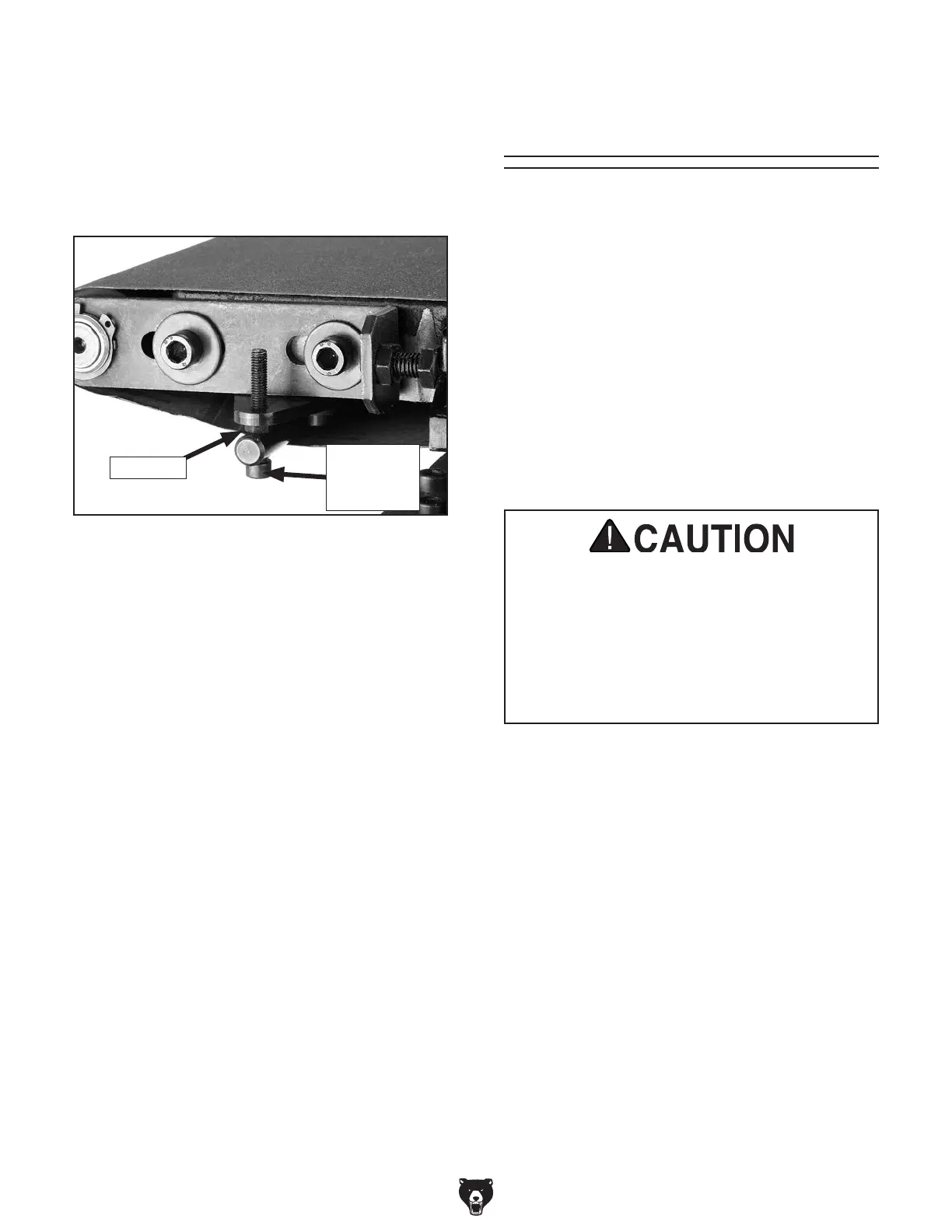

Figure 39. Conveyor belt tracking adjustment
bolt.
Tracking
Adjustment
Screw
Lock Nut
Tensioning
Conveyor Belt
The conveyor belt will stretch when new and will
eventually need to be tensioned. This is most
obvious if the conveyor belt starts slipping on the
rollers.
When you tension the conveyor belt, focus on
adjusting the tensioning bolts in even increments.
Adjusting one side more than the other will cause
tracking problems, which will require you to make
additional adjustments to get the sander tracking
correctly again.
Items Needed Qty
Wrench 12mm ....................................................2
Hex Wrench 6mm
...............................................1
Working around moving conveyor and parts
presents pinch/entanglement hazards that
can cause personal injury. Use extreme
care to keep hands clear of in-running pinch
points while adjusting tracking nut/screw
when machine is running. Roll up sleeves
and do not wear gloves or other apparel that
could become entangled in moving parts.
