Model G0458Z (Mfd. Since 7/19)
-33-

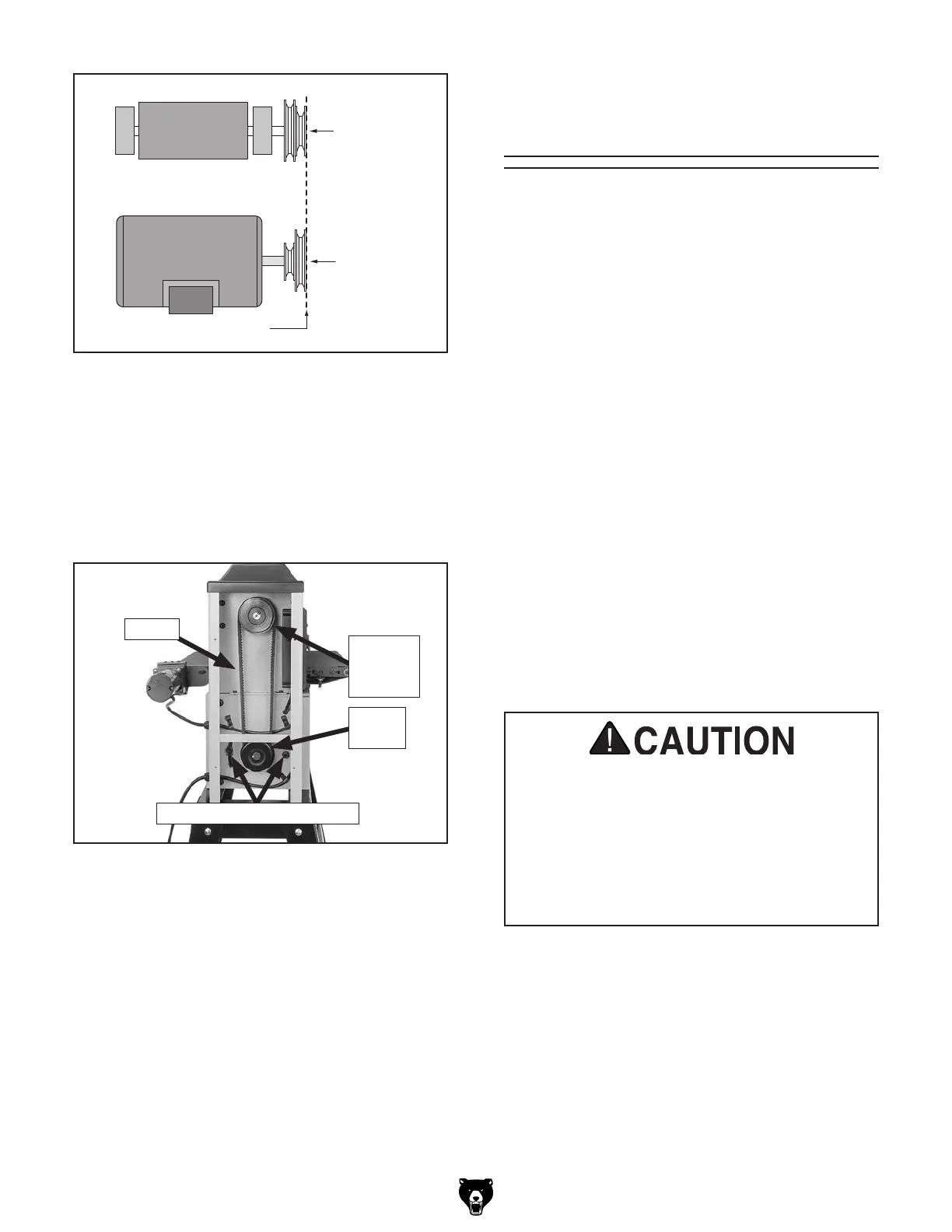

Figure 37. Proper pulley alignment for optimum
power transmission.
Alignment
Motor Pulley
Motor
Sanding
Drum
Pulley
Sanding
Drum
4. Remove the V-belt (refer to Changing V-Belt
of Page 32).
5.
Loosen motor pulley set screws and sanding
drum pulley set screws and align both pulleys
(see Figure 38).
Figure 38. Belt drive system.
Motor Mount Cap Screws
Sanding
Drum
Pulley
V-Belt
Motor
Pulley
6. Tighten the set screws, replace the V-belt,
and repeat Step 3 to verify proper pulley
alignment. Pulleys should be parallel and
aligned, as shown in Figure 37, when belt is
properly tensioned.
7.
Replace the pulley cover.
Tracking
Conveyor Belt
The conveyor belt must track straight. If the feed
belt tracks to either side, then the tracking must
be corrected or the conveyor belt will become
damaged and have to be replaced. The tracking
was properly set at the factory, but it is the respon-
sibility of the end user to keep it tracking properly
during the life of the machine.
Tracking the conveyor belt is a balancing process
that takes patience and a small degree of trial-
and-error. Usually you must over-tighten the loose
side (the side the belt is tracking towards) to make
the conveyor belt move to the middle of the rollers,
then loosen that same side to make the feed belt
stay in position. If you adjust the tracking screw
too much either way, then you have to repeat the
process until the conveyor belt rides in the middle
and stays there during continuous operation.
Note: Tracking affects tension, so tension must
always be adjusted after tracking.
Items Needed Qty
Wrench 8mm ......................................................1
Hex Wrench 4mm
...............................................1
Working around moving conveyor and parts
presents pinch/entanglement hazards that
can cause personal injury. Use extreme
care to keep hands clear of in-running pinch
points while adjusting tracking nut/screw
when machine is running. Roll up sleeves
and do not wear gloves or other apparel that
could become entangled in moving parts.
To track conveyor belt:
1.
Turn conveyor belt ON and watch it track.
—If the belt quickly moves to one side, imme-
diately stop the machine and adjust the
belt tracking before running the conveyor
again.
—If the belt tracks evenly, leave it alone.
