Grizzly G0458Z User Manual

Model G0458Z (Mfd. Since 7/19)
-41-
READ ELECTRICAL SAFETY
ON PAGE 40!
ON/OFF
Paddle Switch
Ground
Neutral
Hot
Ground
120V
5-15 Plug
Overload Switch
L1 Series 25A 125V
KEDU HY56
TN40-55(JSC)
Circuit Board
Variable-
Speed Dial
Feed Belt Motor
LINELOAD
Motor
Motor Junction Box
(Machine Cabinet)
Run Capacitor
40uF
250V
Start Capacitor
350uF
125V
ACL
ACN
Doout + Doout -

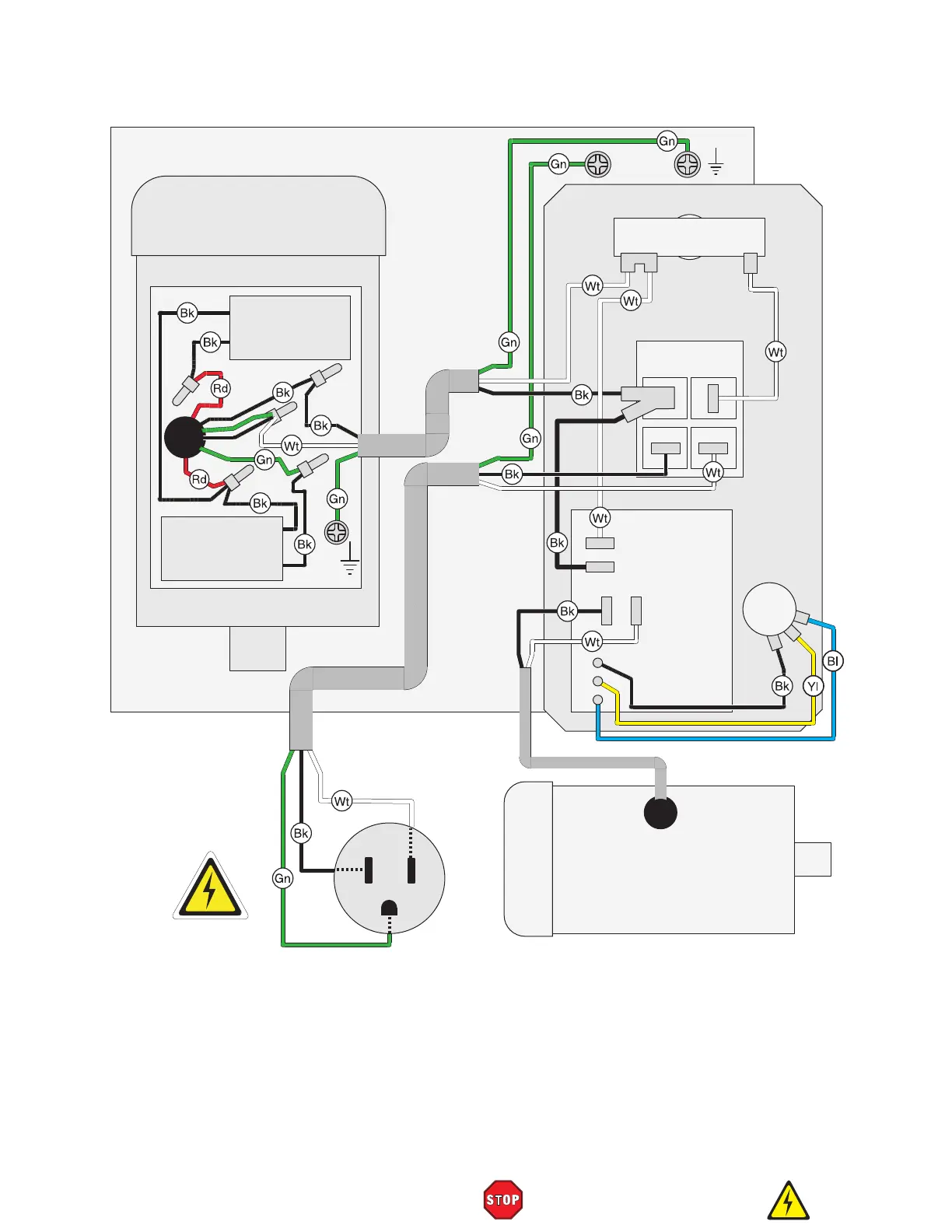

Wiring Diagram
