-16 -
Model G0458Z (Mfd. Since 7/19)
14. Secure stand to sander with (4) M8-1.25 x
20 hex bolts, (8) 8mm flat washers, and (4)
M8-1.25 hex nuts (see Figure 10).
17.
Slide table elevation handwheel over shaft
pin (see Figure 12) and secure with (1) 5mm
flat washer and (1) M6-1 x 35 cap screw.
15.
Lift up on stand and remove blocks.
16. With help from an assistant, carefully tilt
sander upright, as shown in Figure 11, so
rear legs touch the floor.

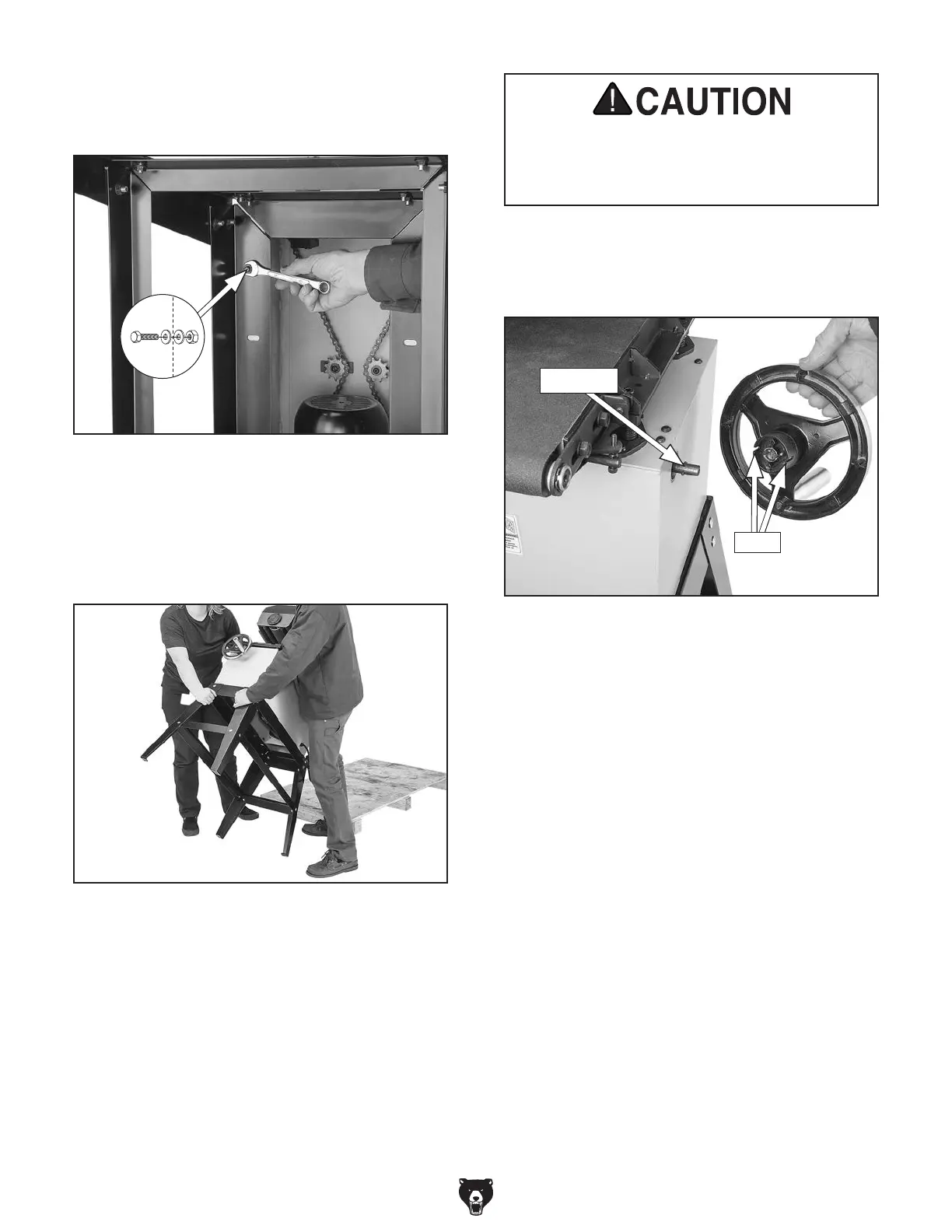

Figure 10. Mounting sander to stand.
x 4
Figure 11. Tilting sander upright.
If the legs start to slide when tilting, you
MUST have a third person hold the stand
from sliding to avoid personal injury or
machine damage!
Figure 12. Installing table elevation handwheel.
Shaft Pin
Slots
To Next Page
