8. Assemble remaining stand components, as
shown in Figure 7, with remaining hardware.
9.
Turn stand upright and adjust it so legs are
evenly positioned, then tighten all stand
fasteners.
The sander is very heavy.
DO NOT over-exert your-
self while unpacking or
moving your machine—
get assistance.
10. Make sure sander is still resting on shipping
pallet.
11.
Place pallet and stand near appropriate loca-
tion (once sander is mounted to stand it will
be difficult to move).
12.
With help of an assistant, tilt sander back
so side with belt access panel faces pallet,
move left bottom edge of sander forward, and
rest left side of sander on pallet, as shown in
Figure 8.
Note: The base should be even with or stick
out from the edge of the pallet to properly
install stand assembly.

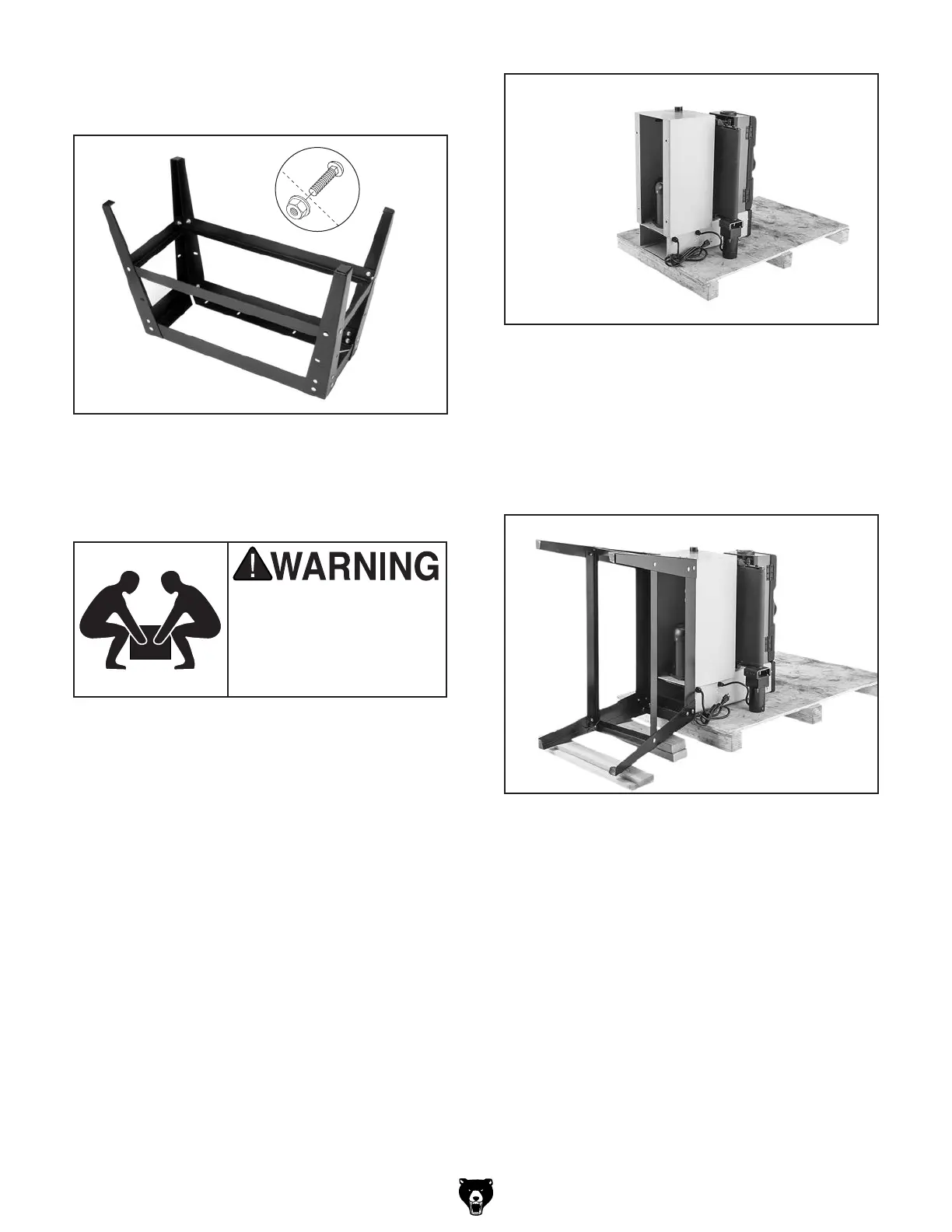

Figure 7. Completed stand assembly.
Figure 8. Sander tipped back on pallet against
belt access panel.
Tip: Place two stacks of blocks the same
height as the pallet and about 15 inches apart
on the floor near the sander base, and lay the
stand assembly on the blocks, as shown in
Figure 9.
13.
Lay stand assembly on blocks, as shown in
Figure 9.
Figure 9. Stand resting on blocks.
