-24-
Model G0458Z (Mfd. Since 7/19)
9. When sandpaper reaches right side of drum,
move sandpaper out of the way with a 4mm
hex wrench and place it into access hole.
10.
Rotate drum toward you so hex wrench rests
against frame, as shown in Figure 23.
12.
Place end of sandpaper into clamp, secure
it, and remove hex wrench from access hole.
Sandpaper should seat flat against roller and
not overlap at any point.
—If the sandpaper does not fit into the right
clamp, you may have inserted sandpaper
too deeply into left clamp. Also, check to
make sure the length, width, and angled
cuts match the pattern in Figure 20. Make
adjustments to sandpaper if necessary.
—If sandpaper completely covers access
hole, you may have placed too little sand-
paper into left clamp. Unwrap sandpaper
and repeat Steps 7–12
.
13. In either case, re-install sandpaper, repeat
Steps 7–12, and continue adjusting paper
until it fits into clamp.
14.
When finished, reconnect dust collection
system.
11. Firmly hold down sandpaper with both hands,
rotate drum toward you, then wrap end
of sandpaper over top of the drum (see
Figure 24).

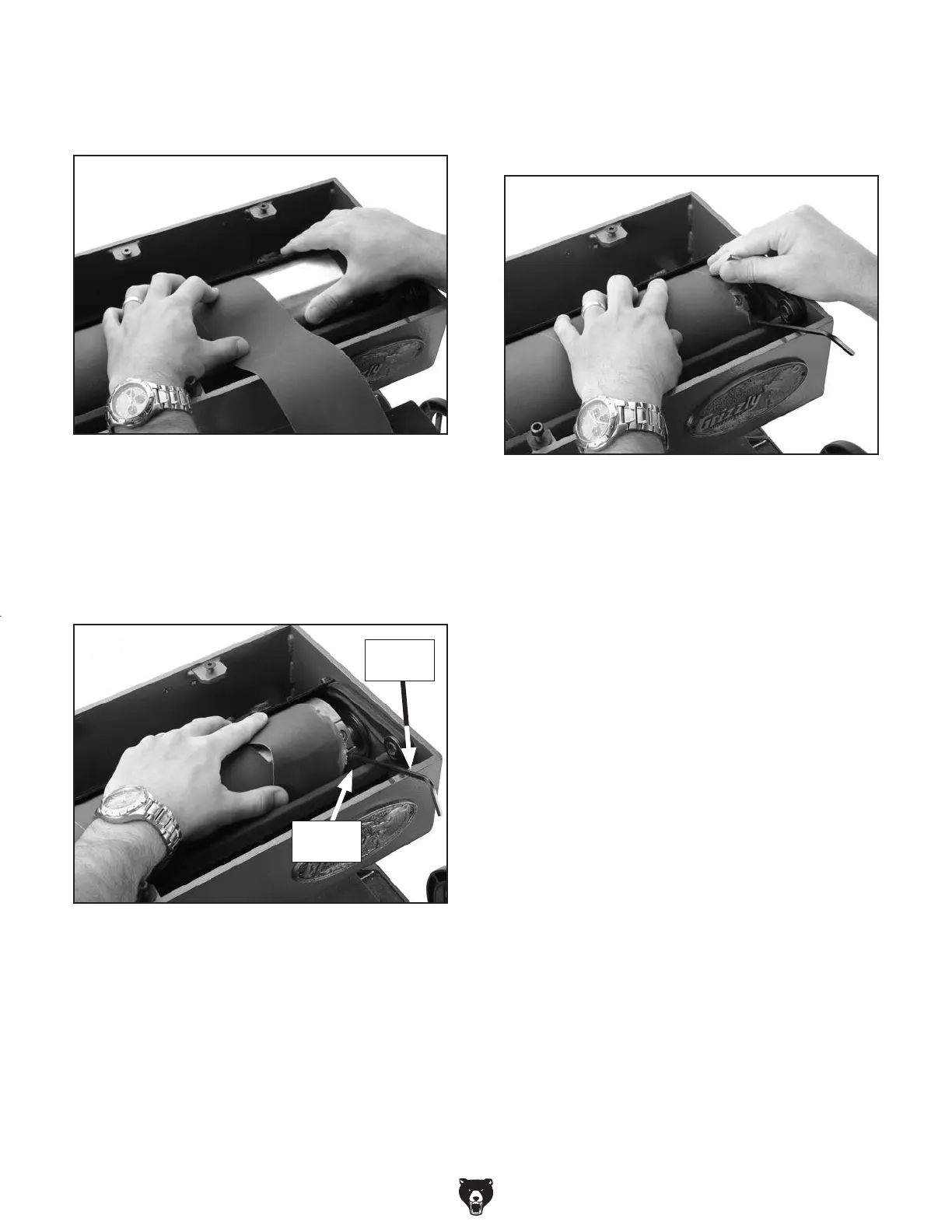

Figure 24. Wrapping sandpaper over tension
wheel.
Figure 22. Wrapping sandpaper around drum.
8.
Wrap sandpaper around drum (see Figure
22), ensuring there are no bubbles or over-
lapping edges.
Figure 23. Hex wrench inserted into access hole
on right tension wheel.
Access
Hole
Hex
Wrench
