Grizzly G0654 User Manual

-12-
Model G0654 (Mfg. Since 9/07)
Box 1: (Figures 3 & 4) Qty
A. Right Panel ................................................. 1
B. Left Panel ................................................... 1
C. Back Panel ................................................. 1
D. Front Panel ................................................. 1
E. Top Plate Assembly ................................... 1
F. Bottom Plate ............................................... 1
G. Belt Guard Assembly ................................. 1
H. Push Block Holder ...................................... 1
I. Dust Chute ................................................. 1
J. Mobile Base Chassis .................................. 1
K. Push Blocks ................................................ 2
L. Cabinet Supports ........................................ 4
M. Jointer Table Assembly .............................. 1
N. Fence Assembly ......................................... 1
O. Cutterhead Guard ....................................... 1
P. Locking Foot Pedal Assembly .................... 1
Q. Rear Guard Top and Base ......................... 1
R. Dust Port .................................................... 1
S. V-Belt .......................................................... 1
T. Motor Pulley ............................................... 1
U. Motor-Switch Assembly .............................. 1
V. Infeed Table Lever ..................................... 1
W. Knobs ......................................................... 2
X. Knife Setting Jig ......................................... 1
Y. Outfeed Table Adjustment Handwheel ...... 1

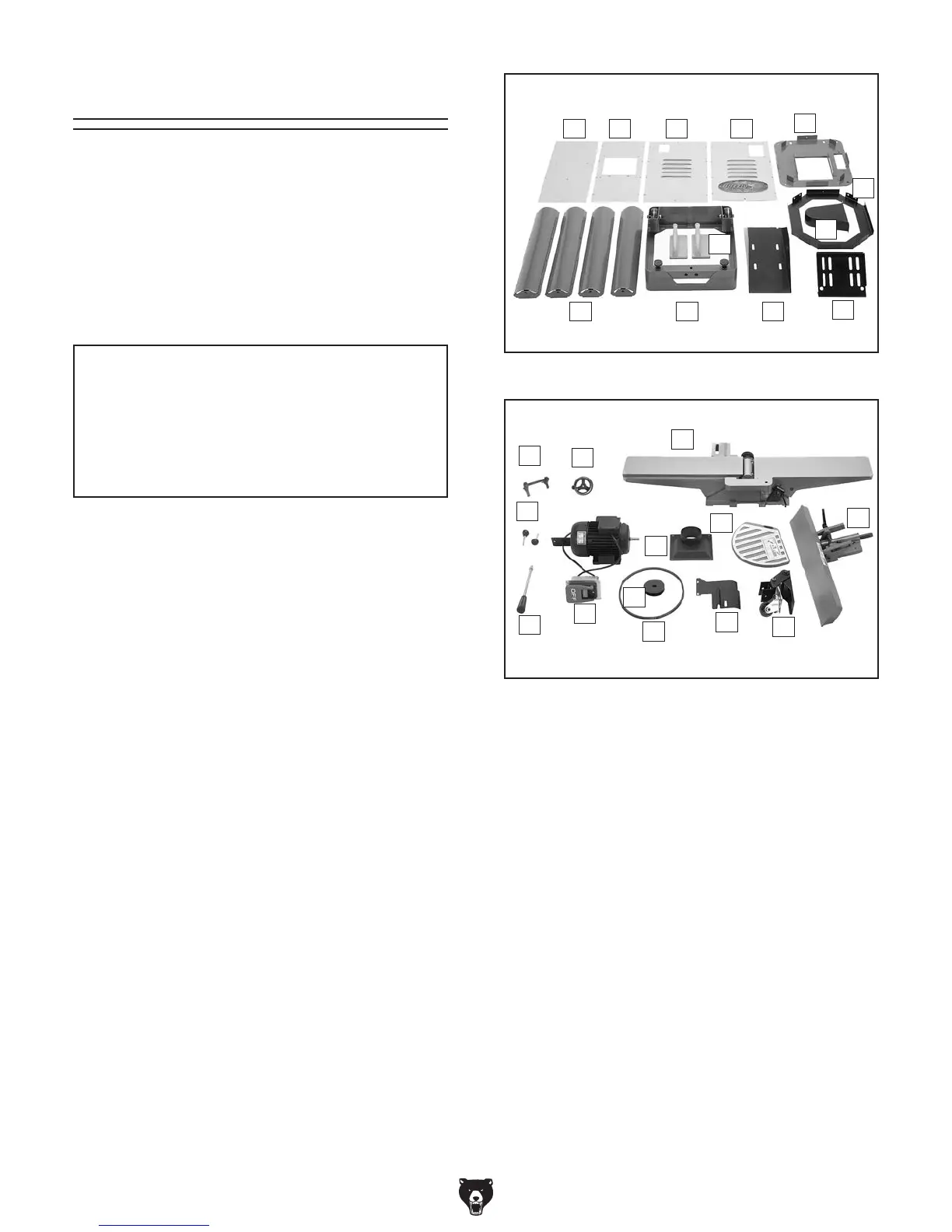

Figure 3. Box 1 inventory contents.
A B C D
E
F
G
H
IJ
K
L
Figure 4. Box 1 inventory contents.
M
X
Y
N
O
P
Q
R
S
T
U
V
W
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
