Model G0654 (Mfg. Since 9/07)
-43-
MOTOR
Ground
PUSH BUTTON SWITCH
(viewed from behind)
View this page in color at
www.grizzly.com.
Start
Capacitor
200MFD
125VAC
The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
Ground
Neutral
Hot
Ground
110 VAC
5-15 Plug
(As Recommended)
5
1
2
8
3

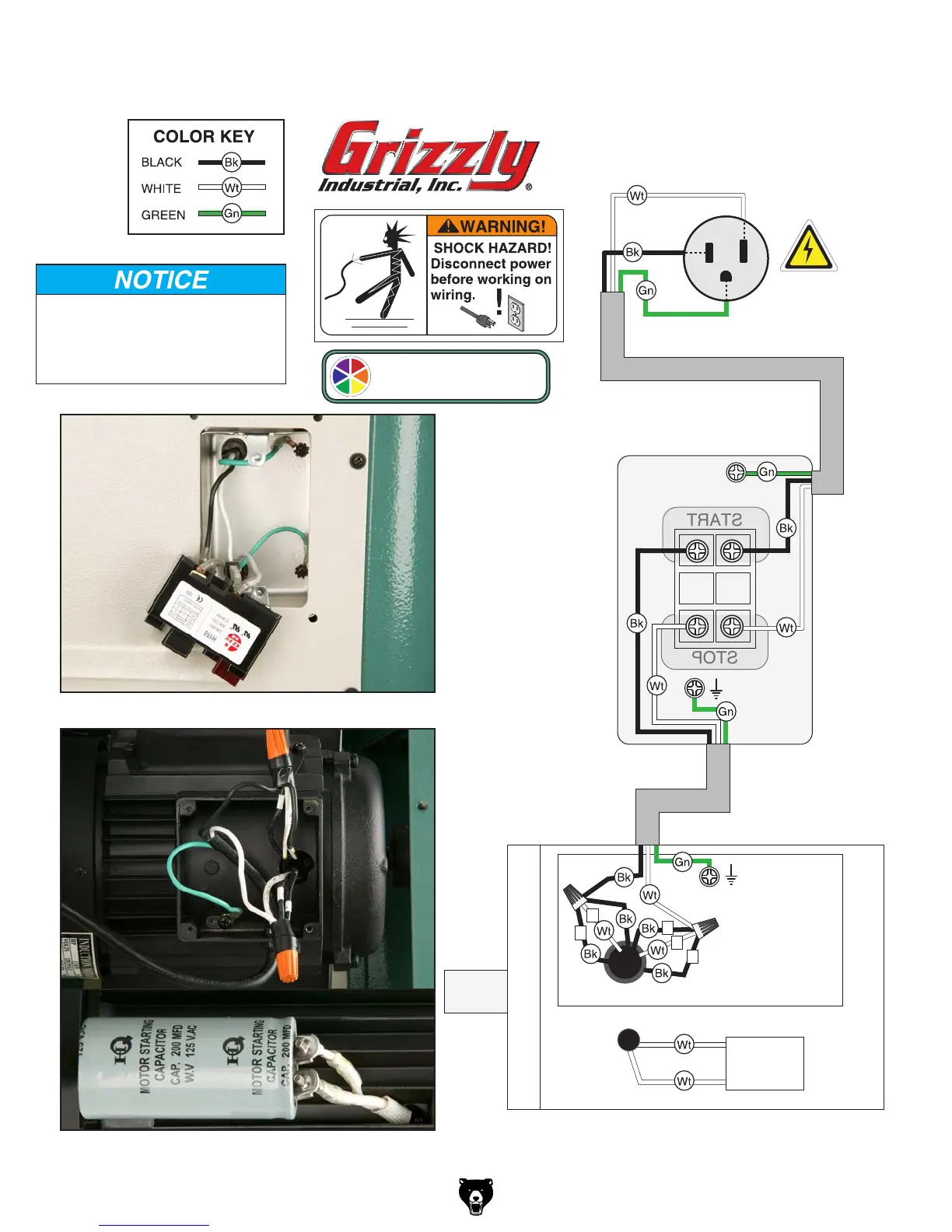

Wiring Diagram
Figure 78. Switch wiring.
See Figure 78
See Figure 79
Figure 79. Motor junction box and capacitor
wiring.
To Next Page
