Grizzly G0654 User Manual

Model G0654 (Mfg. Since 9/07)
-41-
The fence stops simplify the task of adjusting the
fence to 45˚ inward, 90˚, and 45˚ outward (135˚).
Tools Needed Qty
45° Square ........................................................ 1
90° Square ........................................................ 1
Sliding Bevel ...................................................... 1
Wrench 14mm ................................................... 1
Wrench 10mm ................................................... 1
To set the 45˚ inward fence stop:
1. Using a 45˚ square, adjust the fence to the
45˚ inward position, as shown in Figure 71.
3. Adjust the 45˚ inward fence stop bolt until
it makes contact with the back of the fence
bracket.
4. Retighten the jam nut loosened in Step 2.

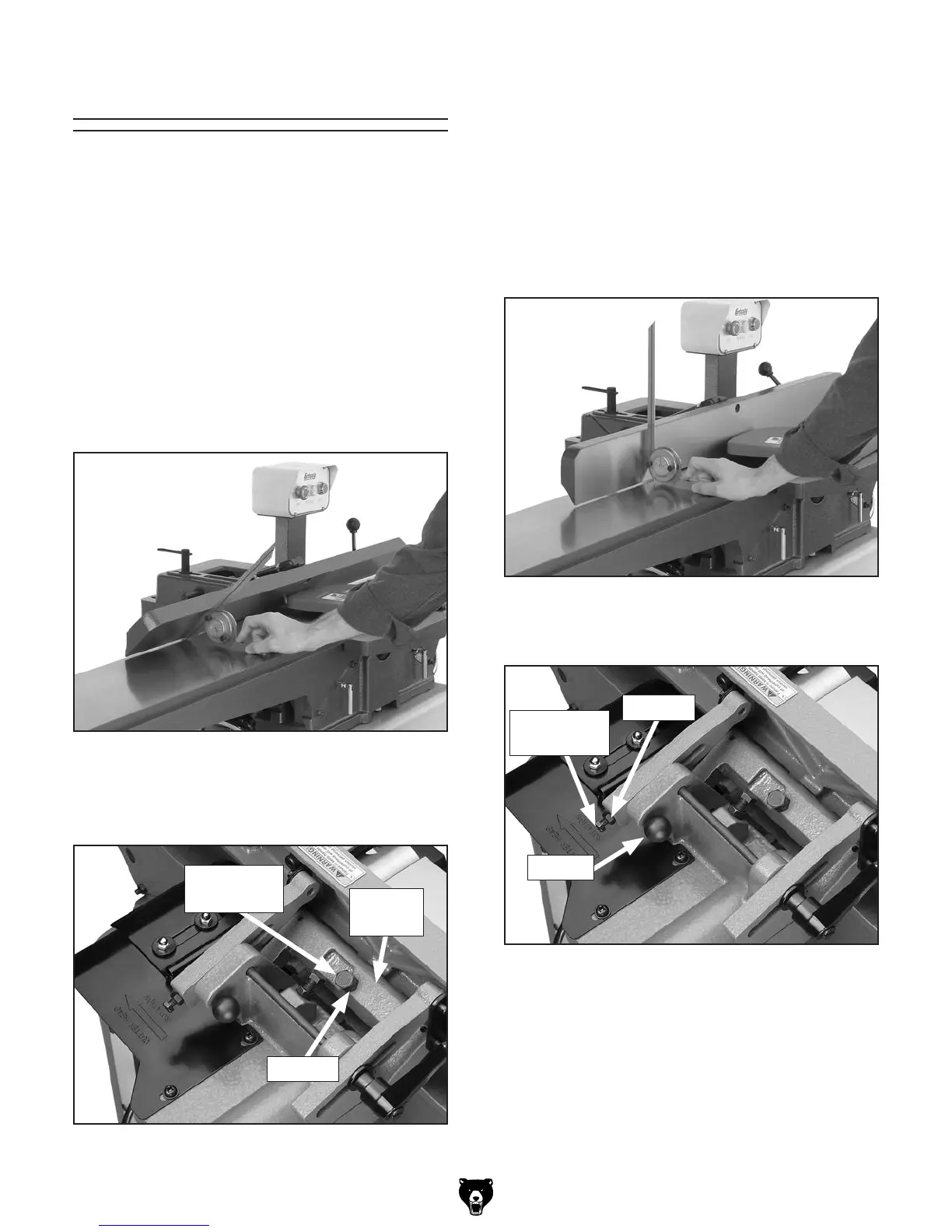

Figure 72. 45˚ inward fence stop bolt.
Setting Fence Stops
To set the 90˚ fence stop:
1. Using a 90˚ square, adjust the fence to the
90˚ position, as shown in Figure 73.
3. Loosen the jam nut on the 90˚ fence stop bolt
(see Figure 74).
4. Adjust the 90˚ fence stop bolt until it makes
contact with the 90˚ plunger knob shaft.
5. Retighten the jam nut loosened in Step 3.
Figure 71. Example of adjusting fence 45˚
inward.
2. Loosen the jam nut shown in Figure 72.
2. Push the plunger in.
Figure 74. Plunger engaged.
Plunger
Figure 73. Example of adjusting fence to 90˚.
Jam Nut
Fence Stop
Bolt
Fence
Bracket
Fence Stop
Bolt
Jam Nut
