Model G0654 (Mfg. Since 9/07)
-25-
Fence Movement: The fence has a lock that
keeps it in position (see Figure 37). To move the
fence, loosen the lock and slide the fence where
needed, then retighten the lock.

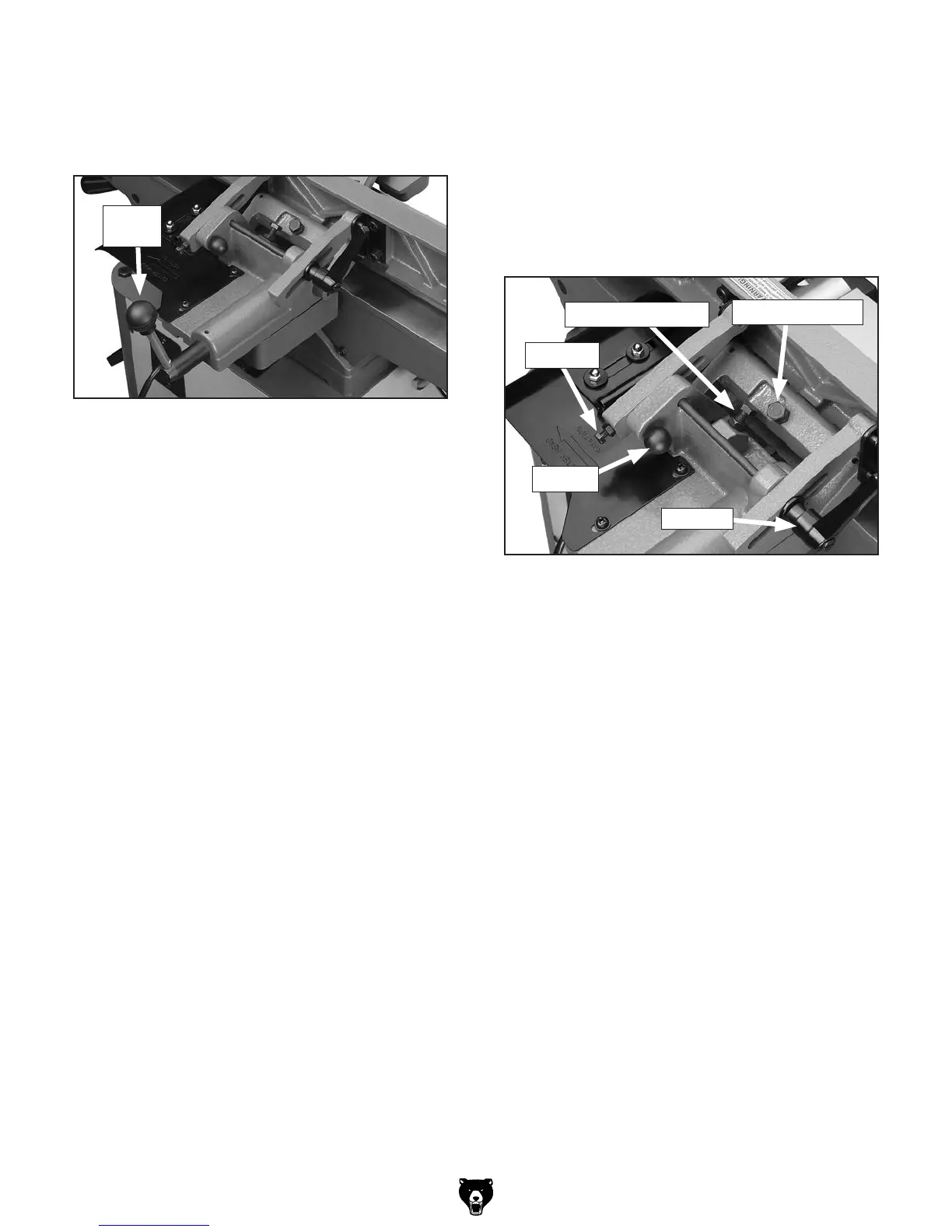

Figure 37. Fence lock location.
Fence Tilting: The tilt lock (see Figure 38)
secures the fence at any position in the available
range. The plunger locks the fence tilt for 90° cuts.
Two positive stops stop the fence at 45° inward
and 45° outward for common 45° bevel cuts.
Even when the fence is resting against the posi-
tive stops, the tilt lock must be tightened before
cutting. Also, the plunger must be disengaged for
45° outward bevel cuts.
Figure 38. Tilt lock and swing stop locations.
Tilt Lock
Plunger
90° Stop
45° Inward Stop
45° Outward Stop
Fence
Lock
