4. Use wire nuts to connect wires as indicated
in Figure 8. Twist wire nuts onto their respec-
tive wires and wrap them with electrical tape
so they will not come loose.
5. Close and secure motor junction box.
6. Install a 6-15 plug on power cord, according
to plug manufacturer's instructions. If plug
manufacturer's instructions are not available,
NEMA standard 6-15 plug wiring is provided
on Page 74.

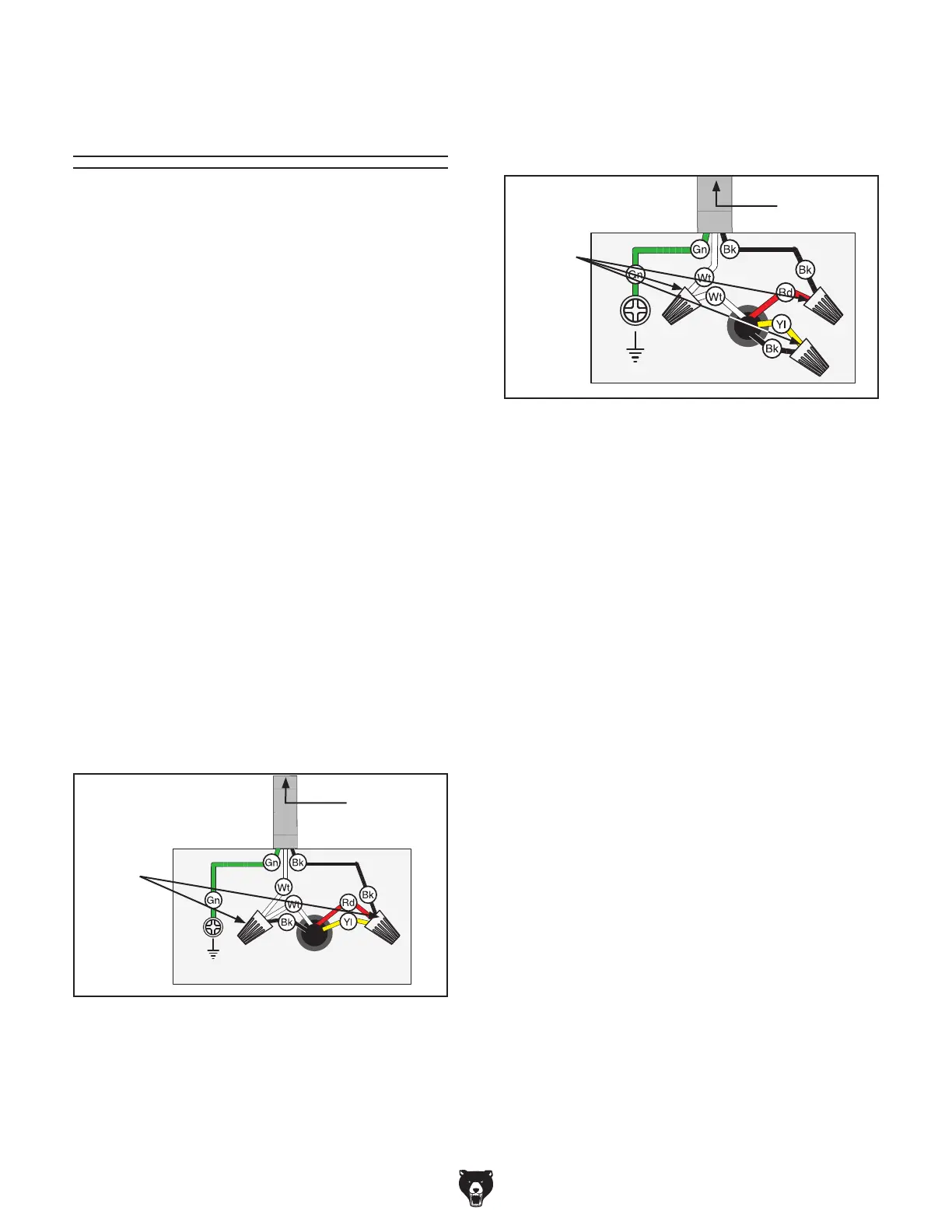

Figure 8. Motor rewired to 240V.
Ground
Connect
Wires
with
Nuts
Here
To Switch
The voltage conversion MUST be performed by
an electrician or qualified service personnel.
The voltage conversion procedure consists of
rewiring the motor and installing the correct plug.
A wiring diagram is provided on Page 74 for your
reference.
IMPORTANT: If the diagram included on the
motor conflicts with the one on Page 75, the motor
may have changed since the manual was printed.
Use the diagram included on the motor instead.
Items Needed Qty
• Phillips Head Screwdriver #2 ..................... 1
• Electrical Tape ............................ As Needed
• Wire Nut (14 AWG x 3) ............................... 1
• Plug 6-15 .................................................... 1
• Wire Cutters/Stripper .................................. 1
To convert the Model G0771Z to 240V:
1. DISCONNECT SAW FROM POWER!
2. Cut off existing 5-15 plug.
3. Open motor junction box, then loosen two
wire nuts indicated in Figure 7.
Figure 7. Inside motor junction box.
Ground
Loosen
These
Wire
Nuts
To Switch
Converting Voltage
to 240V
