-74-
Model G0771Z (Mfd. Since 01/21)
READ ELECTRICAL SAFETY
ON PAGE 73!
Motor
Re-wired for 240V
5-15 Plug
120
VAC
Ground
6-15 Plug
(As Recommended)
Re-wired for 240V
240
VAC
Ground
Re-wired for 240V
Switch Box
Motor
Pre-wired for 120V
Ground
Start
Capacitor
150MFD
250VAC
Run
Capacitor
CBB60 30MFD
350VAC
Start
Capacitor
CD60 200MFD
250VAC
Start
Capacitor
150MFD
250VAC
Run
Capacitor
CBB60 30MFD
350VAC
Start
Capacitor
CD60 200MFD
250VAC

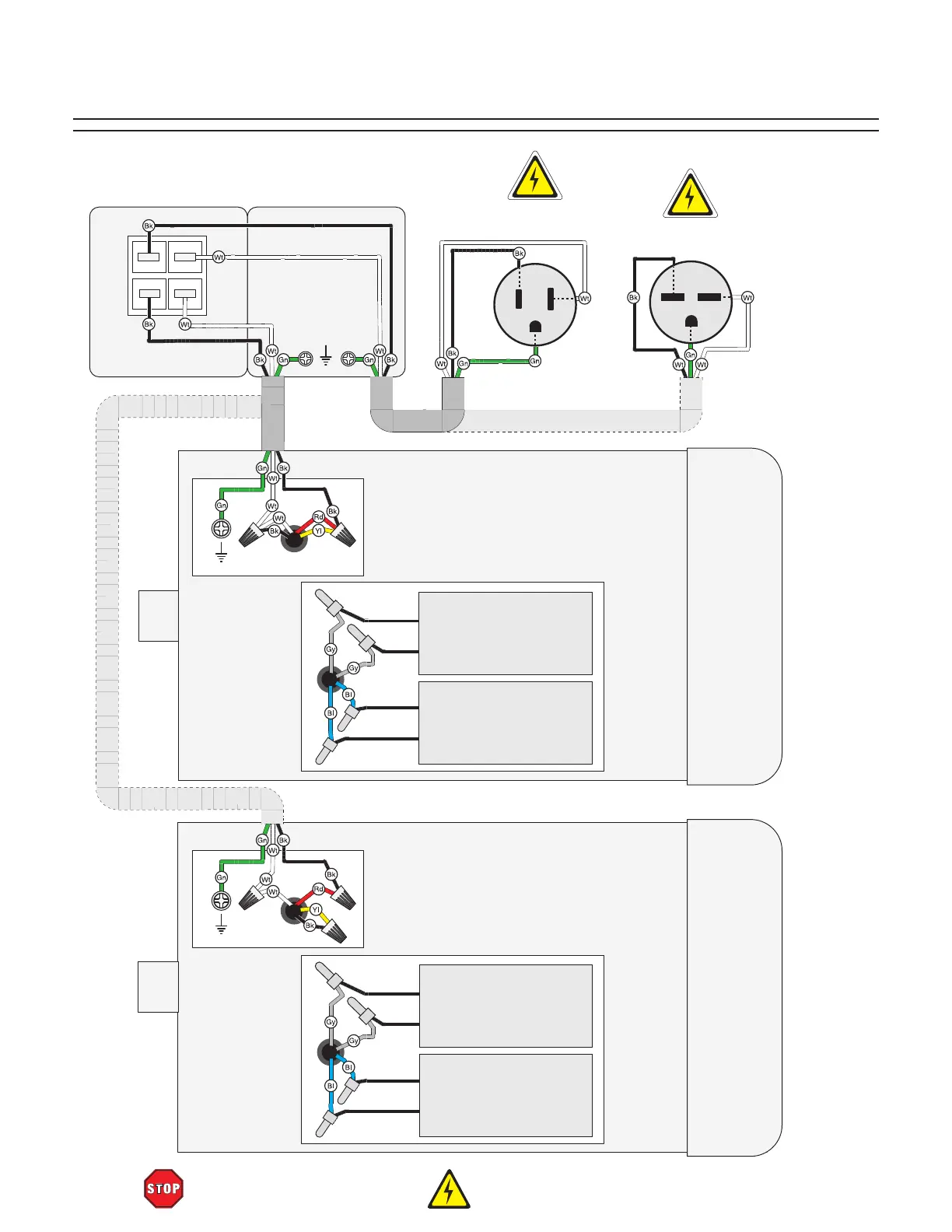

Wiring Diagram
