Grizzly G0771Z - Miter Gauge

Model G0771Z (Mfd. Since 01/21)
-81-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.

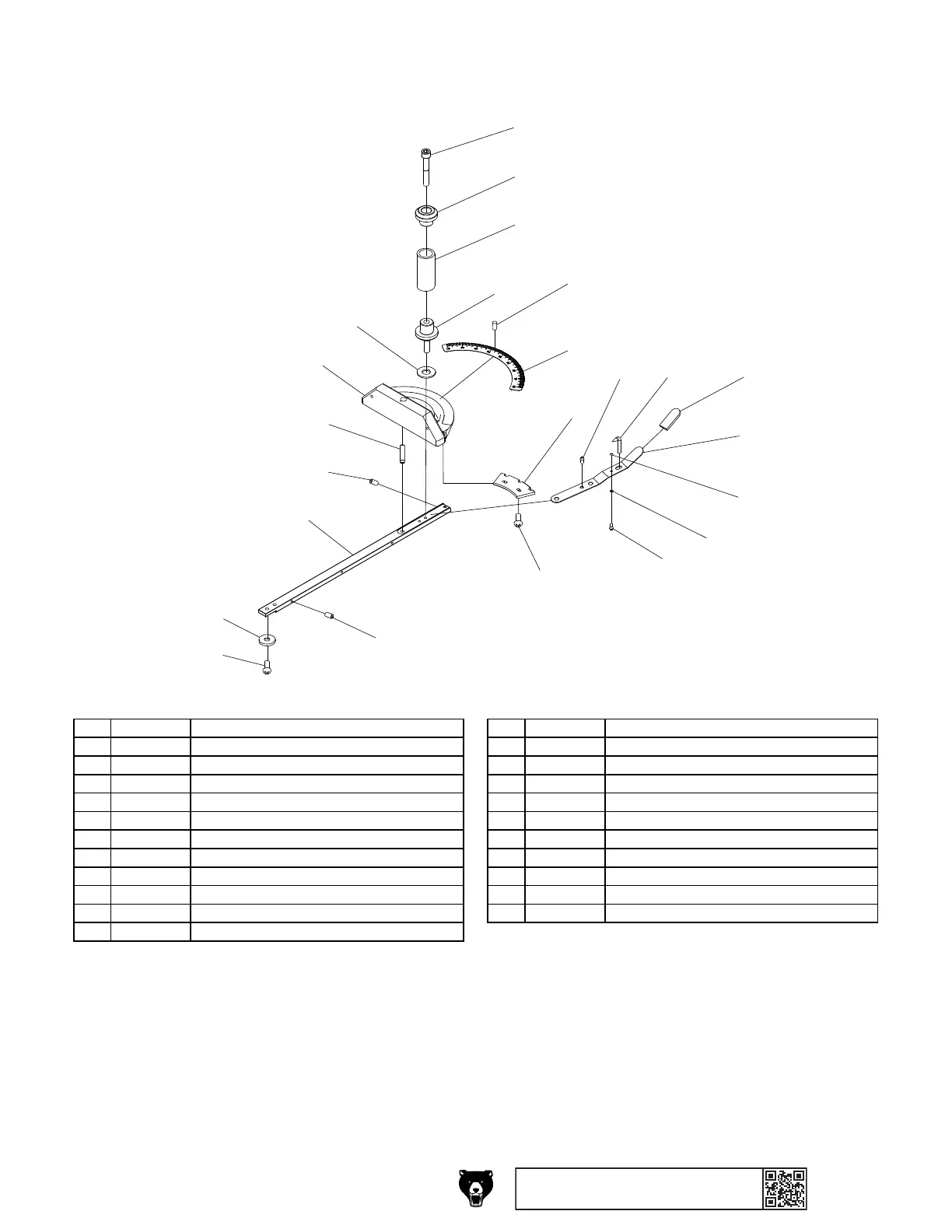

Miter Gauge
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P0771Z501 FLAT PLATE 513 P0771Z513 RIVET
502 P0771Z502 SPRING PLATE COVER 514 P0771Z514 MITER PIN
503 P0771Z503 MITER GAUGE BODY 515 P0771Z515 FLAT HD SCR 4-40 X 3/16
504 P0771Z504 MITER BAR 516 P0771Z516 SET SCREW 10-24 X 1/2
505 P0771Z505 ANGLE INDICATOR 517 P0771Z517 THREADED STOP PIN
506 P0771Z506 UPPER HANDLE CAP 518 P0771Z518 FLAT WASHER 3MM
507 P0771Z507 LOWER HANDLE CAP 519 P0771Z519 PHLP HD SCR 10-32 X 1/4
508 P0771Z508 CAP SCREW M8-1.25 X 50 520 P0771Z520 PHLP HD SCR 6-32 X 7/16
509 P0771Z509 HANDLE WASHER 6 X 20 521 P0771Z521 FLAT HD SCR 1/4-28 X 5/16
510 P0771Z510 MITER SCALE 522 P0771Z522 SET SCREW 10-32 X 1/4
511 P0771Z511 SPRING PLATE 523 P0771Z523 MITER BAR GUIDE WASHER
512 P0771Z512 MITER HANDLE
