-22-
Model G0771Z (Mfd. Since 01/21)

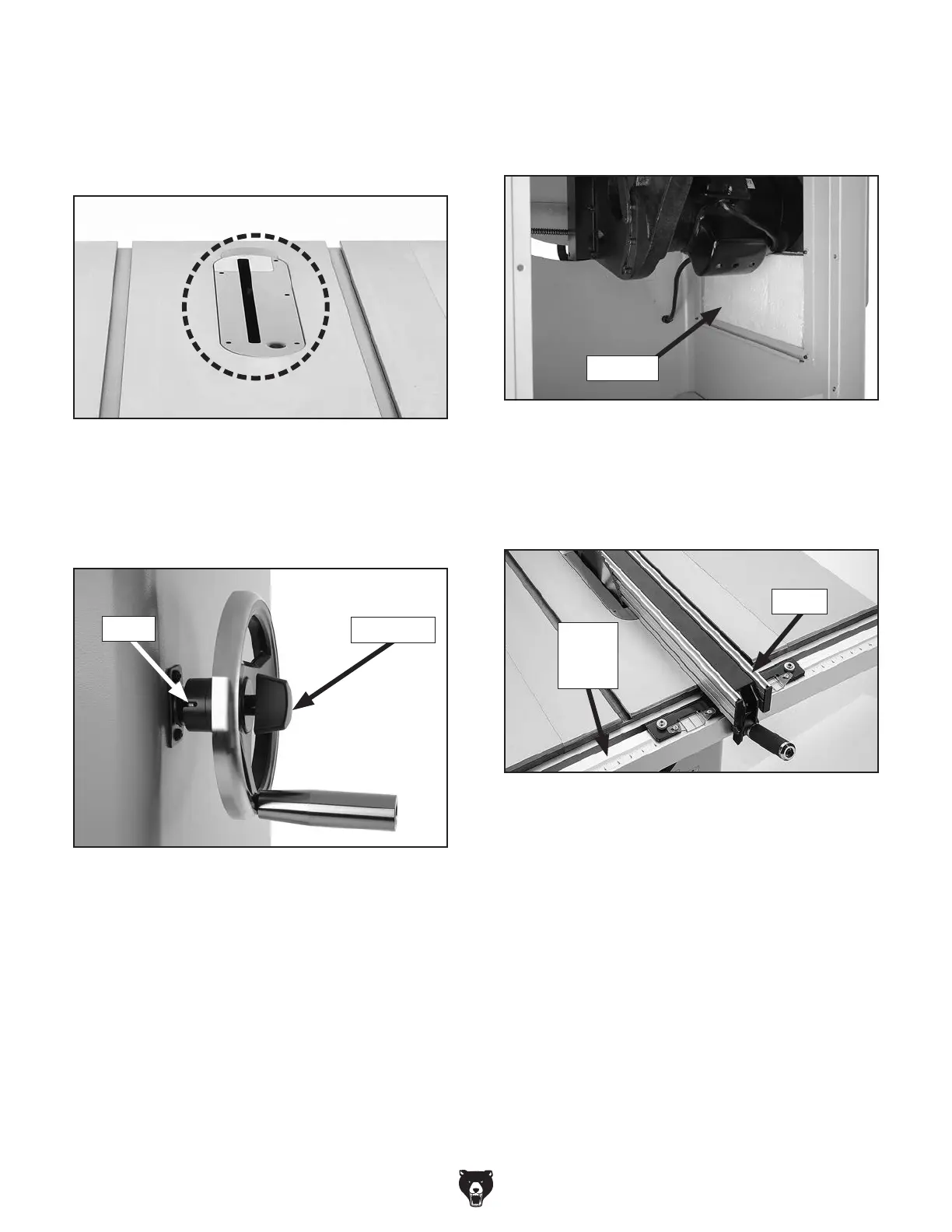

13. Install handwheels on shafts, making sure
notch in each wheel fits over pin on each
shaft, and secure with star knobs, as shown
in Figure 25.
Figure 25. Handwheel installed.
Notch
Star Knob
14. Install saw blade as instructed in Blade
Installation on Page 30.
15. Raise motor slightly, using blade height
handwheel, and remove styrofoam block
that supports motor during shipping (see
Figure 26).
Figure 26. Location of styrofoam block to be
removed.
12. Install table/dado insert in table throat (see
Figure 24). Check to make sure it is flush
and adjust if necessary (see Table/Dado
Insert Adjustment on Page 70 for more
information).
Figure 24. Table insert installed.
16. Place fence on front fence rail, as shown in
Figure 27). Press handle down to lock fence
in position.
Remove
Figure 27. Fence installed on front rail.
Fence
Front
Fence
Rail
To Next Page
